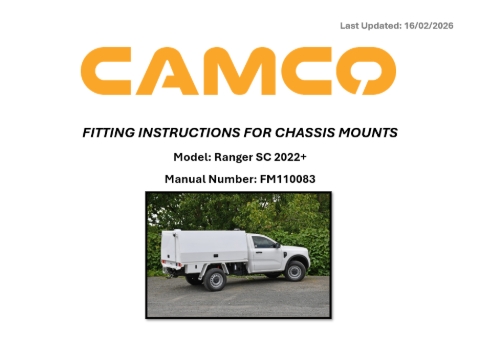

CHASSIS MOUNTS, RANGER SC
1
Step 1 of 15
2
Step 2 of 15

Contents (Click to view)

​STEP 3: Components List​

​STEP 8: Tools List​

​STEP 9: Torque Values​

​STEP 10: Hole Diagram​

​STEP 11: Chassis Mounts​

​STEP 15: QA Sheet​

3
Step 3 of 15

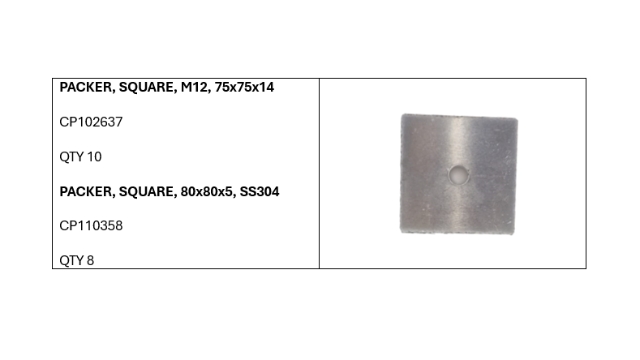

<p>Components List</p>

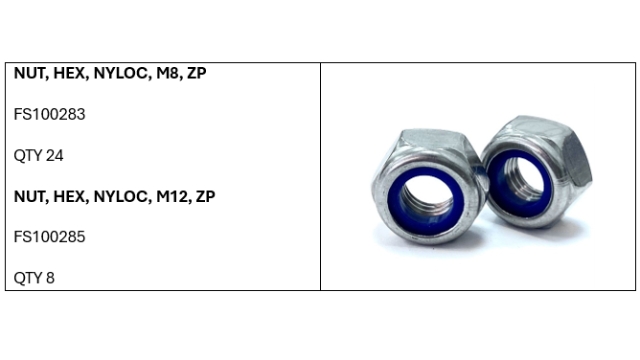

Components List

4
Step 4 of 15

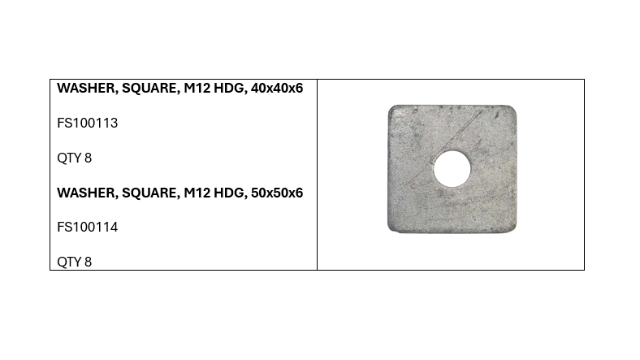

<p>Components List</p>

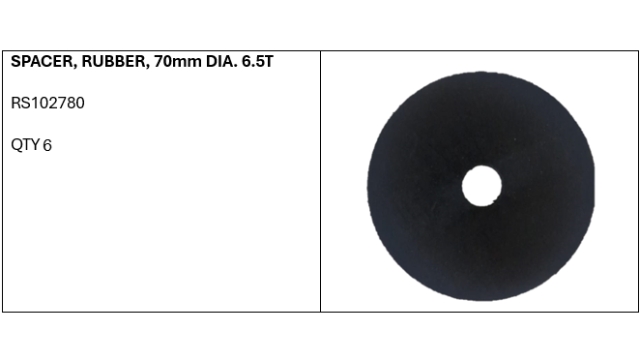

Components List

5
Step 5 of 15

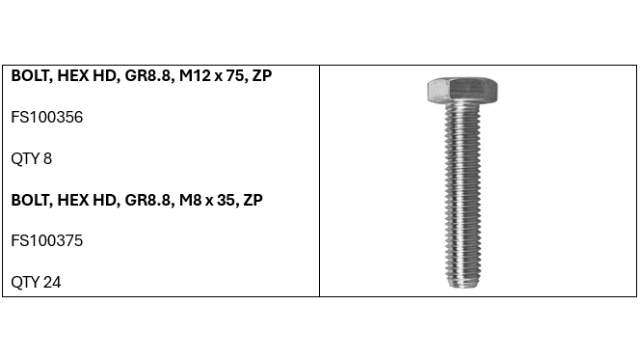

<p>Components List</p>

Components List

6
Step 6 of 15
<p>Components List</p>

Components List

7
Step 7 of 15
<p>Components List</p>

Components List

8
Step 8 of 15

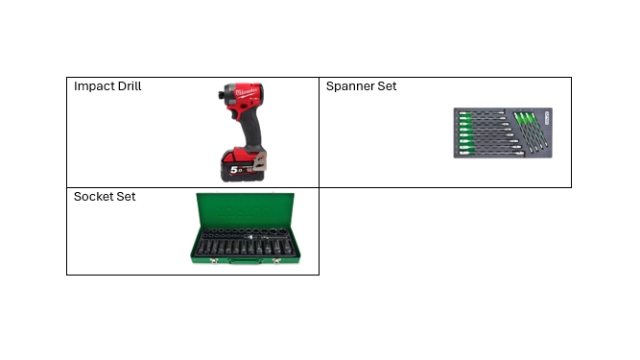

<p>Tools List</p>

Tools List

9
Step 9 of 15

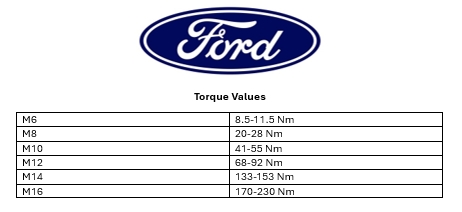

<p>Torque Values</p>

Torque Values

10
Step 10 of 15

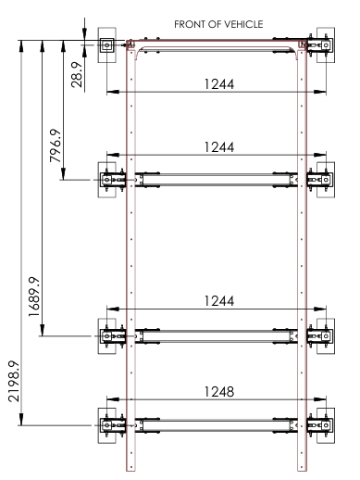

<p>Diagram for hole/distance</p>

Diagram for hole/distance

11
Step 11 of 15

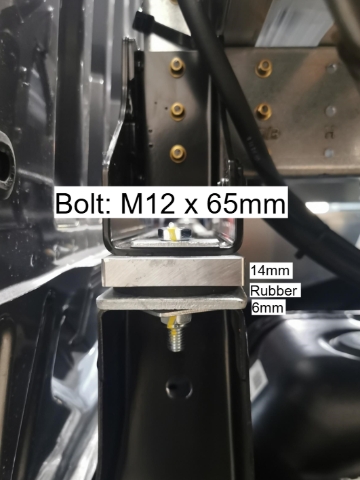

<p>Ranger SC Front.</p><p>Distance from the front of the chassis: 28.9mm</p><p>Hole's position on the crossmember: Most outside hole.</p>

Ranger SC Front.

Distance from the front of the chassis: 28.9mm

Hole's position on the crossmember: Most outside hole.

12
Step 12 of 15
<p>Ranger SC Second</p><p>Distance from the front of the chassis: 796.9mm</p><p>Hole's position on the crossmember: Most outside hole</p><p></p>

Ranger SC Second

Distance from the front of the chassis: 796.9mm

Hole's position on the crossmember: Most outside hole

13
Step 13 of 15

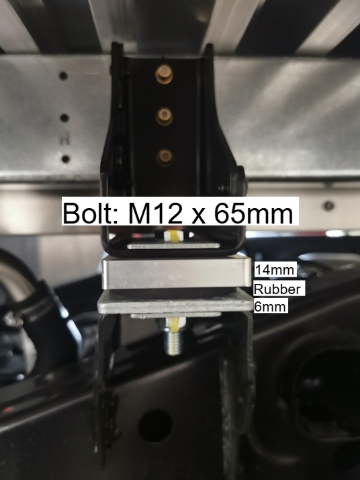

<p>Ranger SC Third</p><p>Distance from the front of the chassis: 1689.9mm</p><p>Hole's position on the crossmember: Most outside hole</p><p></p><p></p>

Ranger SC Third

Distance from the front of the chassis: 1689.9mm

Hole's position on the crossmember: Most outside hole

14
Step 14 of 15
<p>Ranger SC Back</p><p>Distance from the front of the chassis: 2198.9mm</p><p>Hole's position on the crossmember: Most outside hole.</p>

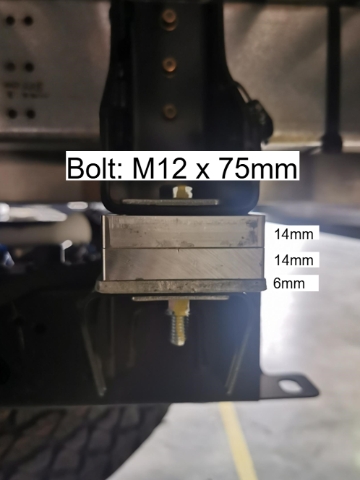

Ranger SC Back

Distance from the front of the chassis: 2198.9mm

Hole's position on the crossmember: Most outside hole.

15
Step 15 of 15
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>
