Hokkin Noodle 3.1 Shaping / Forming (Compound sheeter & 2 Laminators)
The process of producing pastry on the compound sheet machine and transferring it into bins.
The process of producing pastry on the compound sheet machine and transferring it into bins.
1
Step 1 of 7

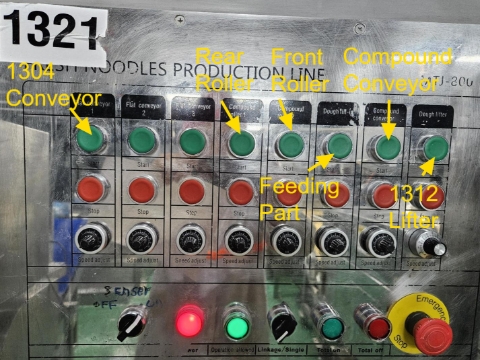

<p>When the dough moves along the 1310 conveyor to the compound sheeter, the operator checks the setting of the compound sheeter, conveyor and lifter on the 1321 controller box</p>

When the dough moves along the 1310 conveyor to the compound sheeter, the operator checks the setting of the compound sheeter, conveyor and lifter on the 1321 controller box

2
Step 2 of 7

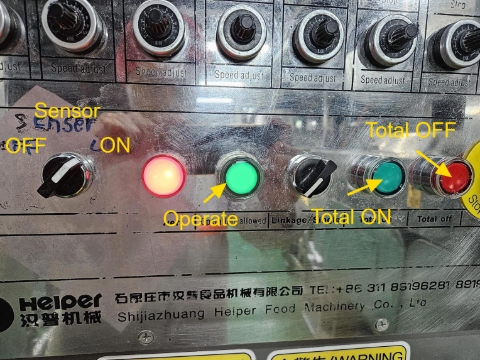

<p>&nbsp; Set the 1321 control box to sensor mode</p>

  Set the 1321 control box to sensor mode

3
Step 3 of 7

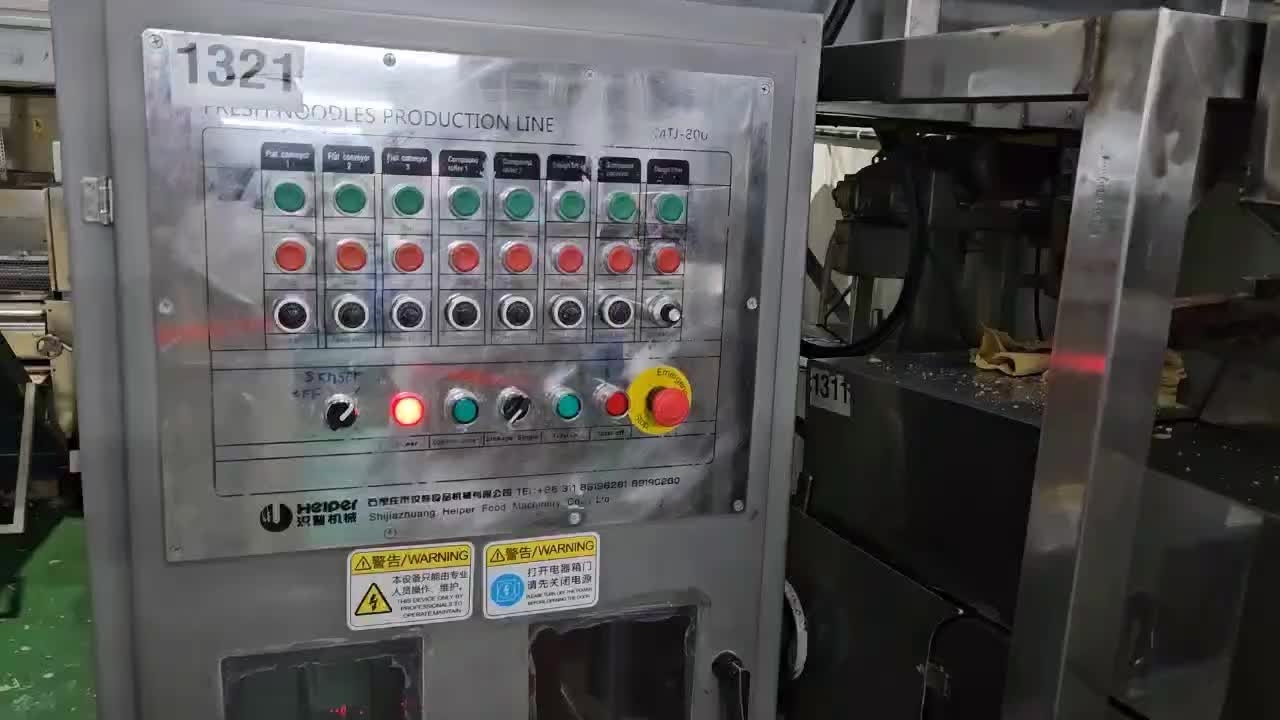

Operator presses the operate button, then presses the Total on button to start all the machines.

4
Step 4 of 7

When the dough passes though the compound sheeter, it moves along the conveyor in a pastry form to the laminator.

5
Step 5 of 7

 When operating in sensor mode on the control box, the compound sheeter, conveyor, and the two laminators detect the pastry through sensors and activate the machines accordingly.

6
Step 6 of 7

After the pastry passes through the two laminators (1314&1315) and potato starch is dusted by the dusting machine.

7
Step 7 of 7

The pastry with potato starch is placed into blue bins from the conveyor belt.
