C- Roof Seal

Canopy roof seal, leak testing

Canopy roof seal, leak testing

1

Step 1 of 8

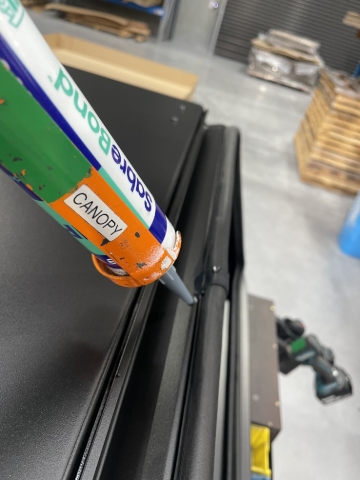

<p>Apply sealant on the windlace joints </p>

Apply sealant on the windlace joints

2

Step 2 of 8

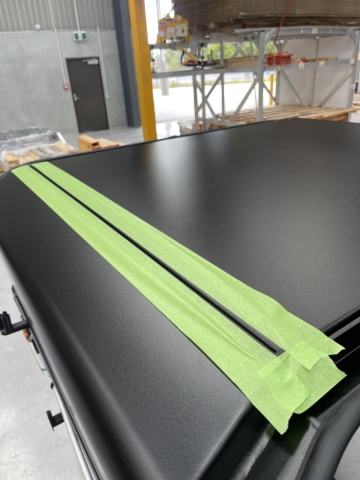

<p>Put a masking tape on the roof and front wall joint </p>

Put a masking tape on the roof and front wall joint

3

Step 3 of 8

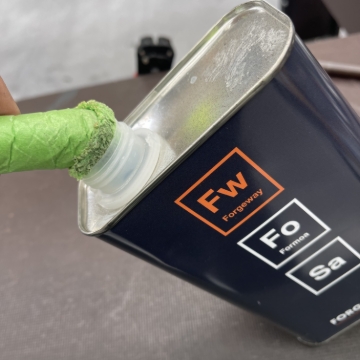

<p>Using rolled cloth put surface activator on it </p>

Using rolled cloth put surface activator on it

4

Step 4 of 8

Apply surface activator on roof joint

5

Step 5 of 8

Apply sealant

6

Step 6 of 8

Spread the sealant with the rubber piece and put a pressure

7

Step 7 of 8

Remove the tape

8

Step 8 of 8

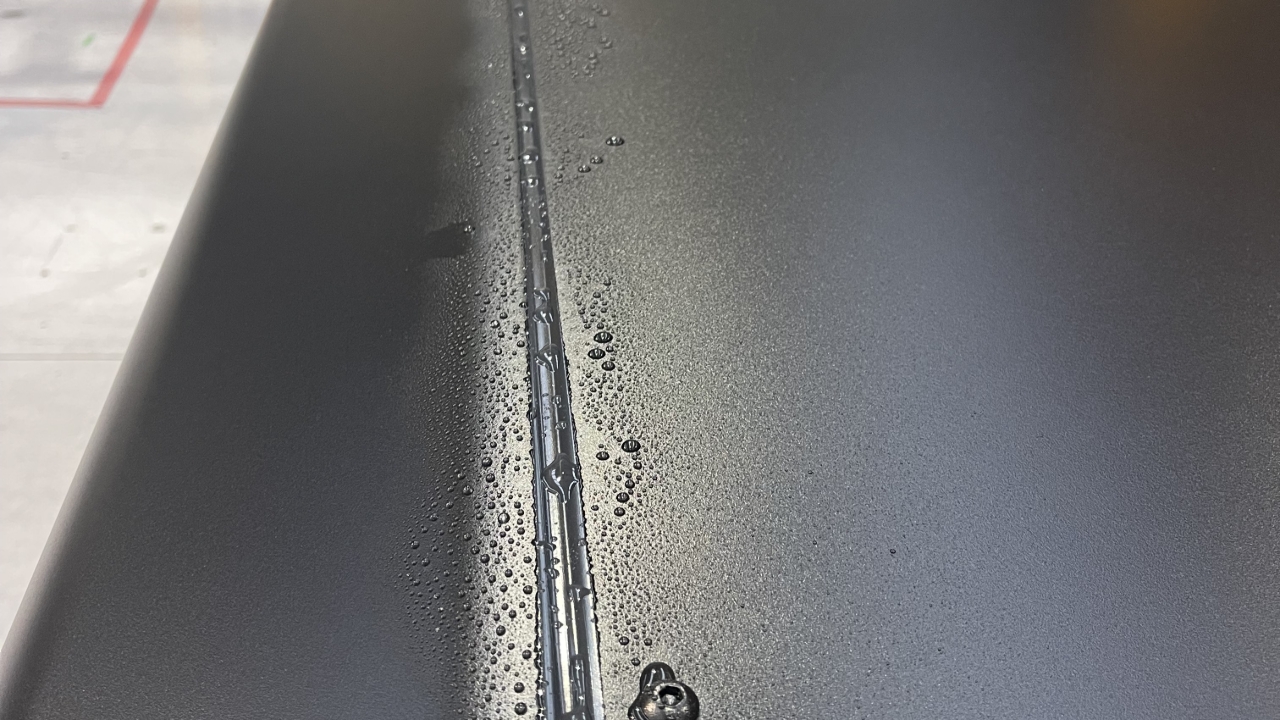

Canopy roof seal is done. Use a spray bottle with plain water to test for water leak.
