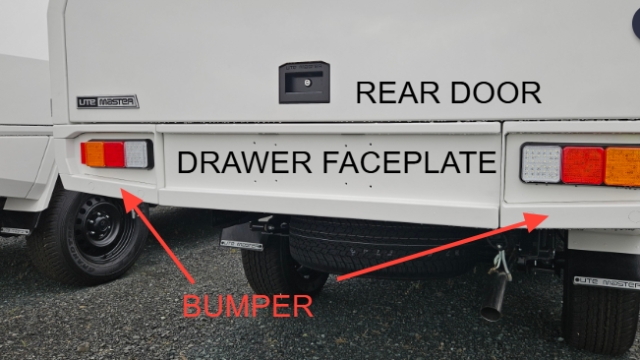

Lower of the Trailcore Body Drawer faceplate to prevent rubbing requires the following steps:

1. Removing Rivets on top face of faceplate

2. Removing Rivets on bottom face of faceplate

3. Removing faceplate from inner frame

4. Removing inner frame

5. Slotting holes

6. Re-assembly / check

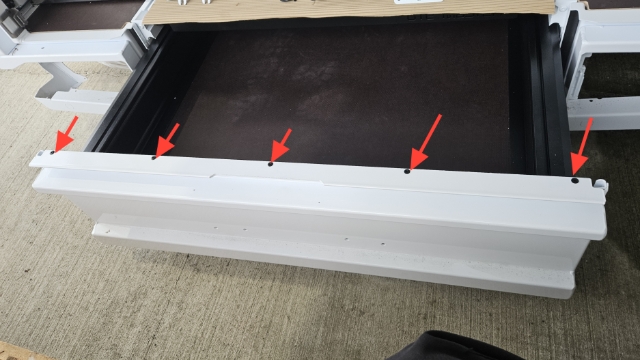

Drill out top face Rivets

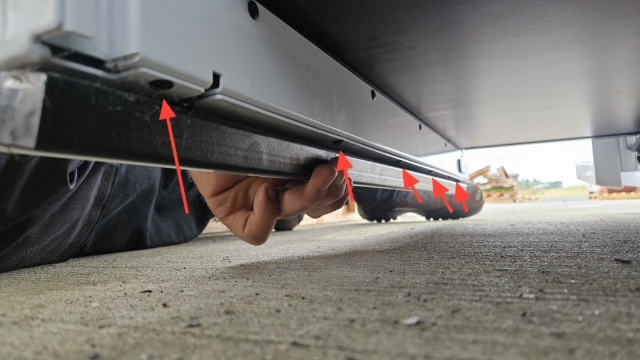

Drill out bottom face rivets

Requires handle being held back

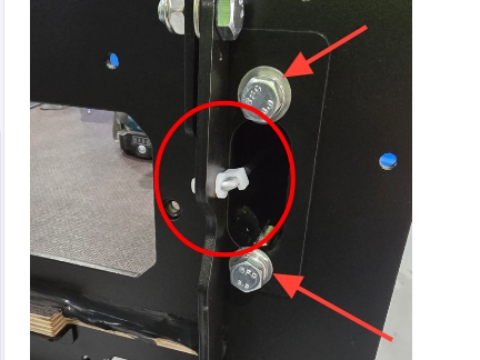

• Pull Faceplate off

• Disconnect plastic rod ends or start washers

• Undo M8x30 Hex bolts from drawer extrusion on both sides

• Remove fasteners and sealant holding ply

• Remove inner frame

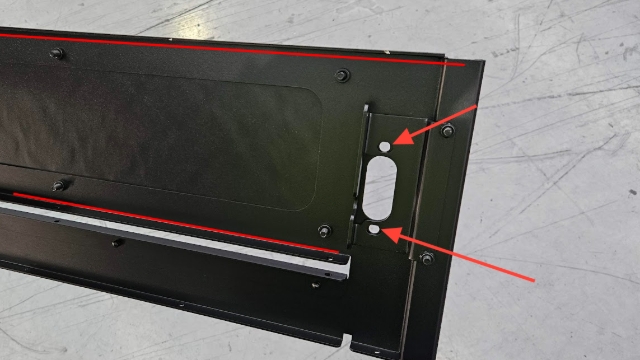

• Slot these 2 holes on both sides to attempt to lower inner frame enough to clear door once re-attached

• This may require rolling top edge or folds holding ply in place

• Re-attach inner frame to extrusion

• May require significnat force to push back onto ply

• Re-seal as required

• May require some vertical hammering to lower frame once re-attached

Check and verify gap is present between drawer faceplate - adjust further as required
