FENZ Roof Drawers.

Knowby

FENZ Roof Drawers.

1

Step 1 of 15

<p></p>

2

Step 2 of 15

Contents (Click to view)

STEP 3: Components List

STEP 6: Roof Drawers Fitting

3

Step 3 of 15

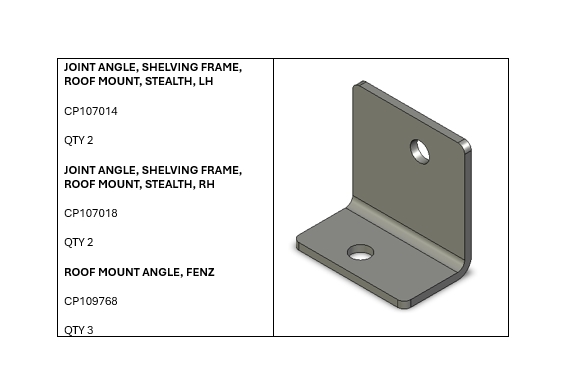

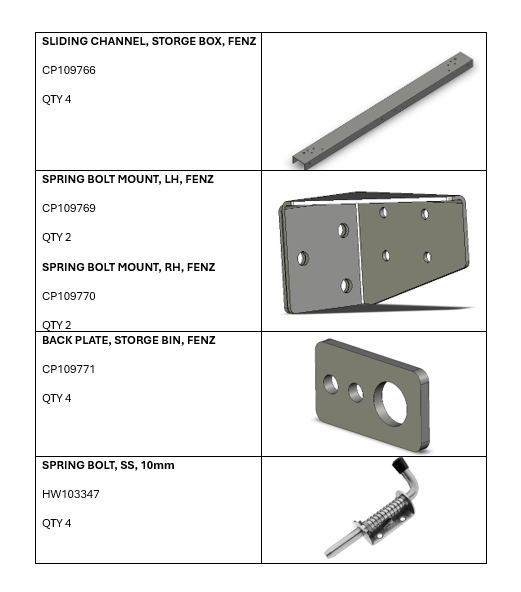

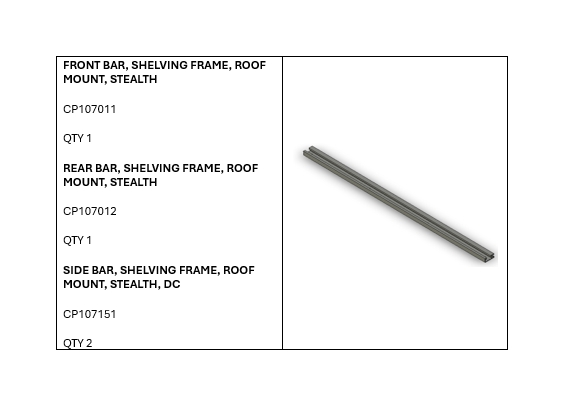

<p>Components</p>

Components

4

Step 4 of 15

5

Step 5 of 15

6

Step 6 of 15

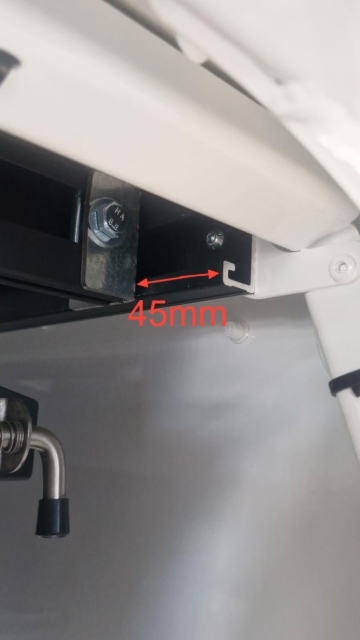

45mm from the edge of low profile bar on both sides.

7

Step 7 of 15

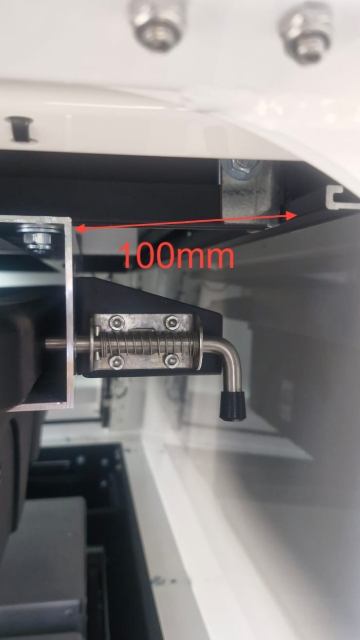

First rail is 100mm from the low-profile bar.

8

Step 8 of 15

<p>Space the rails 400mm apart and leave no gap between the two middle rails.</p>

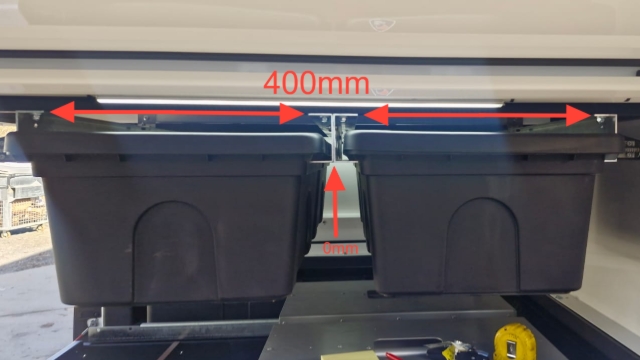

Space the rails 400mm apart and leave no gap between the two middle rails.

9

Step 9 of 15

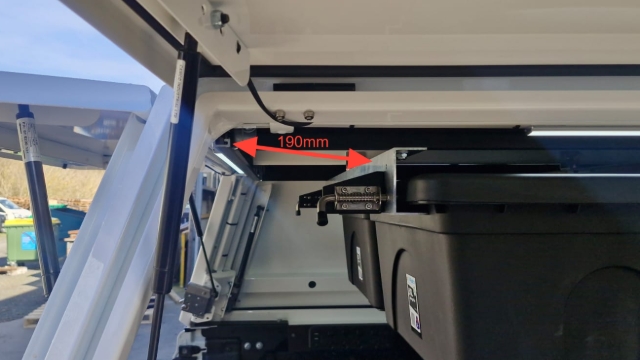

From the end rail to the low-profile bar is 190mm.

10

Step 10 of 15

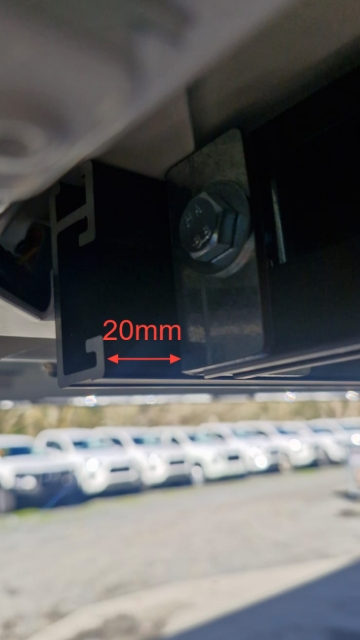

Move the end of the side low-profile 20mm in from the rear low-profile bar.

11

Step 11 of 15

<p>65mm from the latch bracket and end of the rail.</p>

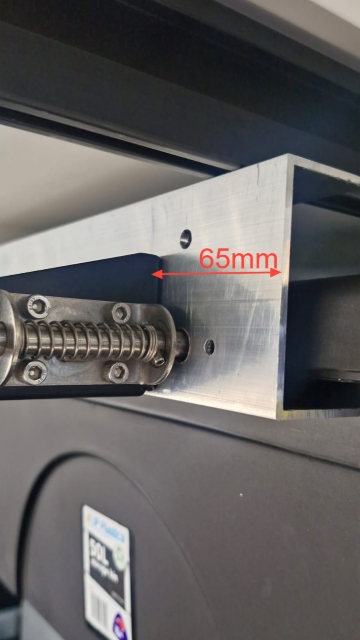

65mm from the latch bracket and end of the rail.

12

Step 12 of 15

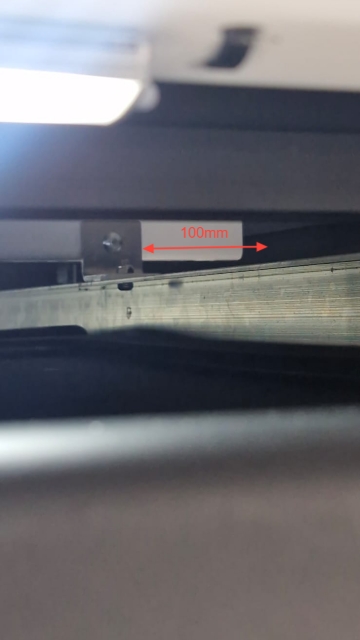

100mm from the front low-profile bar to first bracket.

13

Step 13 of 15

<p>440mm from first bracket to second bracket.</p>

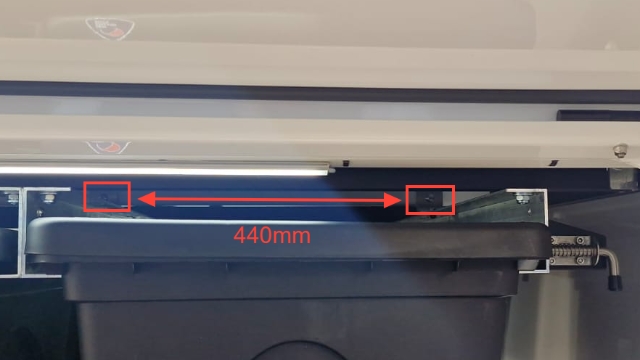

440mm from first bracket to second bracket.

14

Step 14 of 15

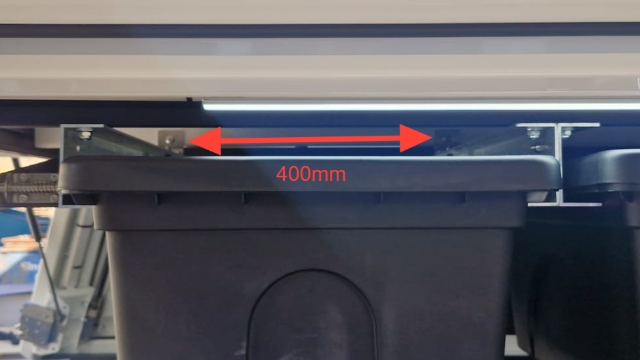

<p>400mm between second bracket and third.</p>

400mm between second bracket and third.

15

Step 15 of 15

190mm from the third bracket to the low-profile bar.
