CANOPY, NISSAN NAVARA
1
Step 1 of 44
2
Step 2 of 44

Contents (Click to view)

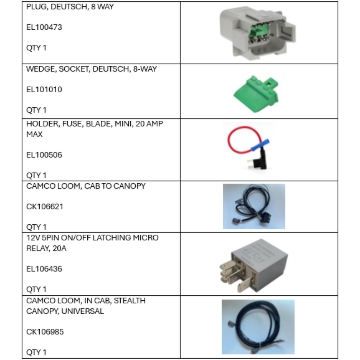

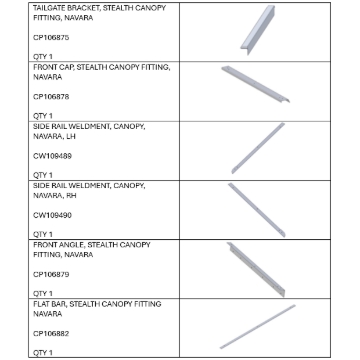

STEP 4: Components List

STEP 6: Tools List

STEP 8: Torque Values

STEP 9: Battery

STEP 10: Fitting Kit Installation

STEP 26: Canopy Installation

3
Step 3 of 44

(Click to view)

STEP 29: Relay

STEP 30: Fuse/Earth

STEP 35: Door Ajar Alarm/Central Locking

STEP 39: Cab to Canopy Loom

STEP 42: Checkover

STEP 44: QA Sheet

4
Step 4 of 44
5
Step 5 of 44
6
Step 6 of 44

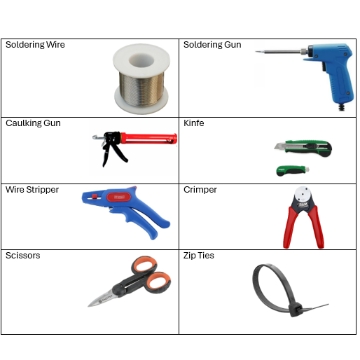

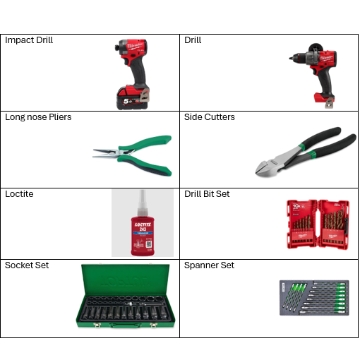

<p>Tool List</p>

Tool List

7
Step 7 of 44
8
Step 8 of 44

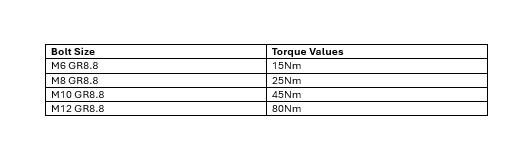

<p>Torque Values</p>

Torque Values

9
Step 9 of 44

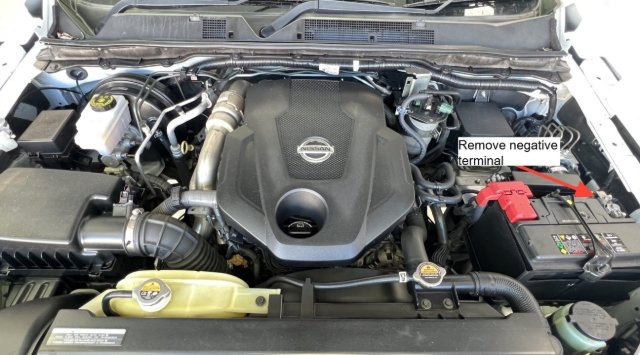

<p>Disconnect the vehicle battery by disconnecting the negative terminal before starting.</p>

Disconnect the vehicle battery by disconnecting the negative terminal before starting.

10
Step 10 of 44

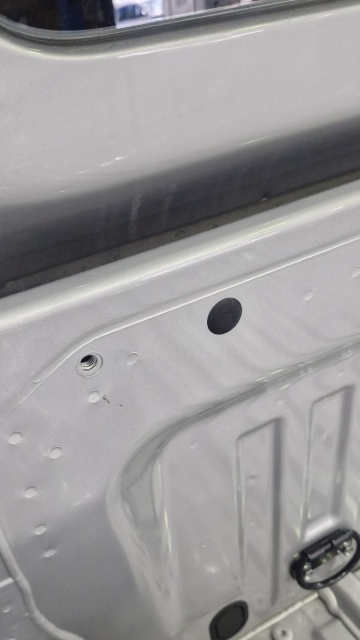

<p>Remove the factory plastic hole plugs from the front (cab-end) of the wellside. </p>

Remove the factory plastic hole plugs from the front (cab-end) of the wellside.

11
Step 11 of 44

Install the Front Angle (CP106879) onto the front of the wellside, aligning it with the pre-existing bung holes.

Install using:

M8x20 Bolts

M8 Washer

Loctite

12
Step 12 of 44

Tighten all six bolts.

13
Step 13 of 44

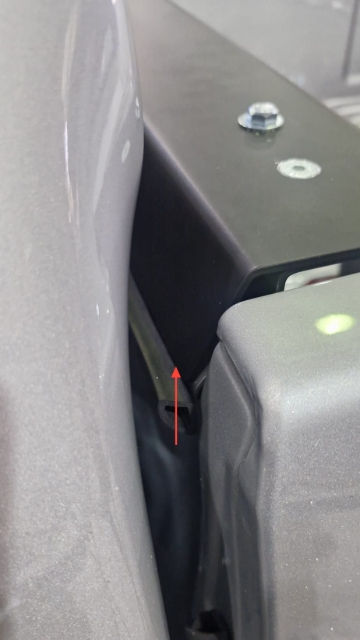

<p>Fit the Front Cap over the Front Angle, ensuring it isn't sitting over the factory rubber as shown.</p>

Fit the Front Cap over the Front Angle, ensuring it isn't sitting over the factory rubber as shown.

14
Step 14 of 44

Mount the Front Cap (CP106878) to the Front angle (CP106879) using:

M8x25 CSK bolts

M8 Washer

M8 Nyloc

15
Step 15 of 44

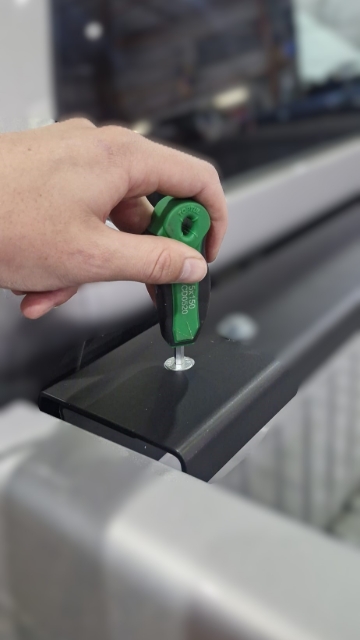

<p>Tighten both sides.</p>

Tighten both sides.

16
Step 16 of 44

Loosely fit the side rails (CW109489/90) onto the wellside.

Leave the front factory bolt loose to hold the rails in place.

17
Step 17 of 44

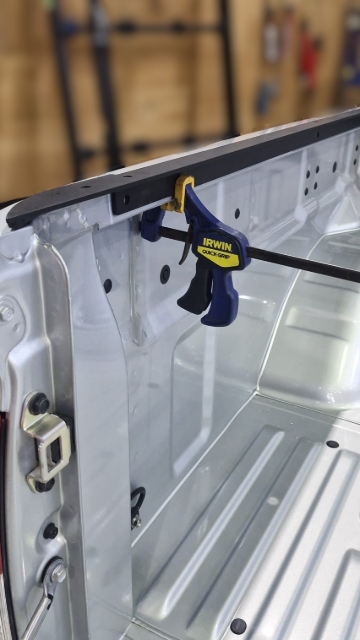

<p>Clamp the back of the side rails firmly to the well side.</p>

Clamp the back of the side rails firmly to the well side.

18
Step 18 of 44

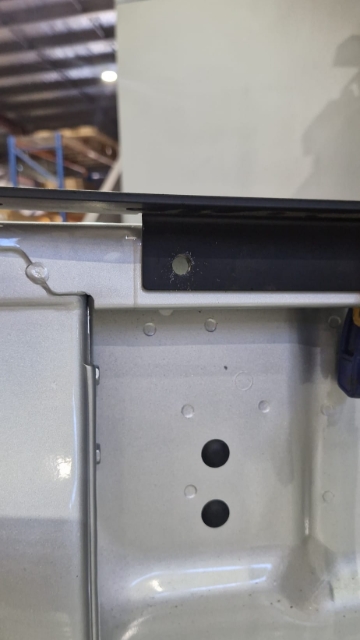

<p>Drill a hole through the wellside, ensuring not to go through to the outside.</p><p></p><p>Ensure that both sides are sitting at the same height. 2 holes will need to be drilled on each side.</p>

Drill a hole through the wellside, ensuring not to go through to the outside.

Ensure that both sides are sitting at the same height. 2 holes will need to be drilled on each side.

19
Step 19 of 44

Mount side rails to the wellside using:

M8x20 Bolt

M8 Washers

M8 Nyloc

20
Step 20 of 44

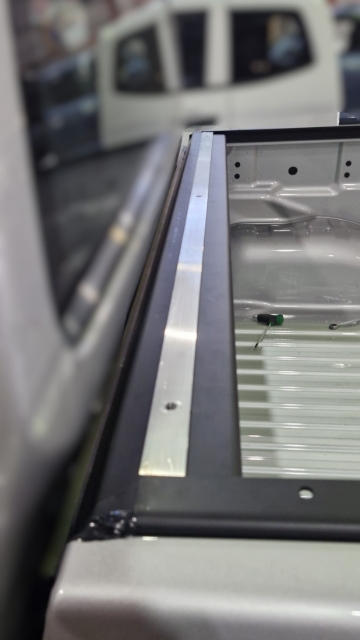

<p>Apply double-sided tape to the flat bar. Make sure the tape is secure across the entire length. Ensure the flat bar sits flush with the front of the side rails.</p>

Apply double-sided tape to the flat bar. Make sure the tape is secure across the entire length. Ensure the flat bar sits flush with the front of the side rails.

21
Step 21 of 44

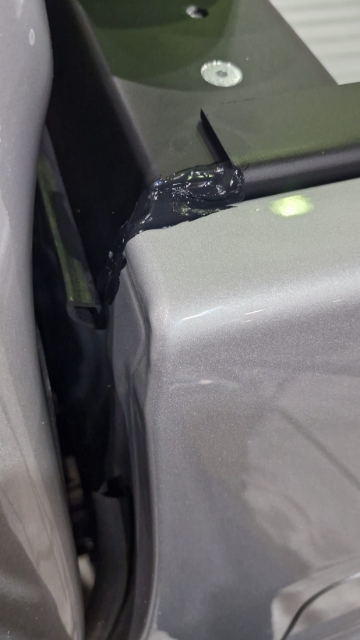

<p>Urethane the front corners to prevent leaks.</p>

Urethane the front corners to prevent leaks.

22
Step 22 of 44

Apply a rubber bulb seal around the fitting kit. Ensure to use tape prep.

23
Step 23 of 44

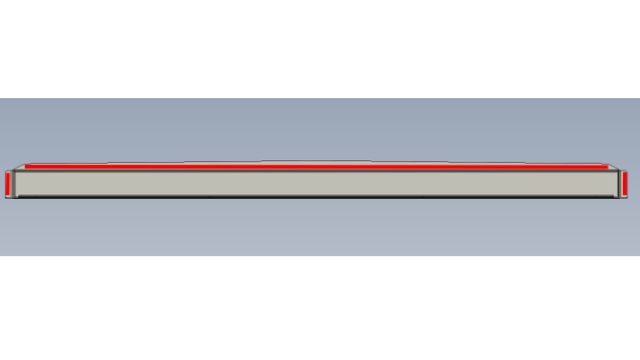

<p>Before fitting the tailgate bracket, ensure to fit Foam Tape 15x3mm on the parts shown.</p>

Before fitting the tailgate bracket, ensure to fit Foam Tape 15x3mm on the parts shown.

24
Step 24 of 44

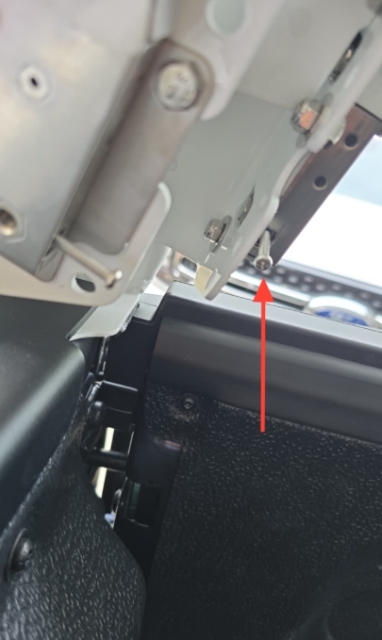

Remove the screws from the tailgate and then reinstall with the tailgate bracket over top. As shown

25
Step 25 of 44

Ensure the tailgate bracket doesnt hit the side rails.

26
Step 26 of 44

Lift the canopy onto the wellside with at least 4 people. ensure the bulb seal is underneath the canopy and none is sticking out as shown.

27
Step 27 of 44

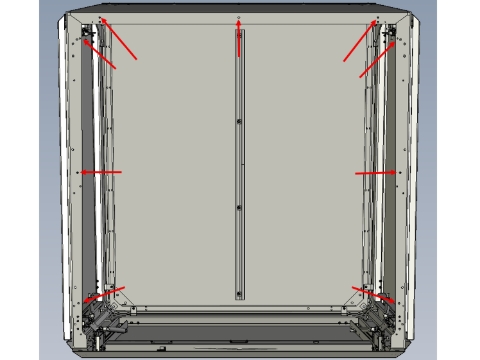

<p>Order of which blots to place. Follow the Diagram to ensure the canopy is fitted correctly.</p>

Order of which blots to place. Follow the Diagram to ensure the canopy is fitted correctly.

28
Step 28 of 44

Mount the canopy to the fitting kit using:

M8x25 Bolts

M8 Washers

M8 Nylocs

29
Step 29 of 44

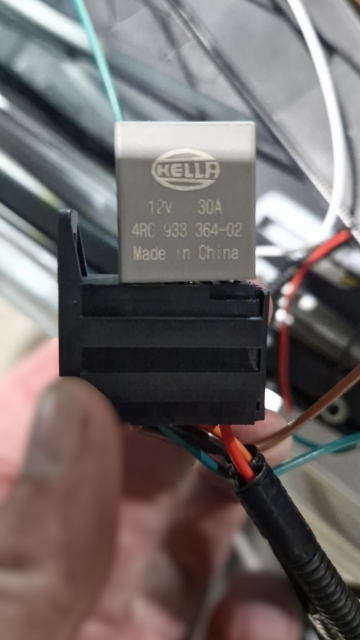

<p>Fit the relay, making sure no wires come loose when inserting.</p>

Fit the relay, making sure no wires come loose when inserting.

30
Step 30 of 44

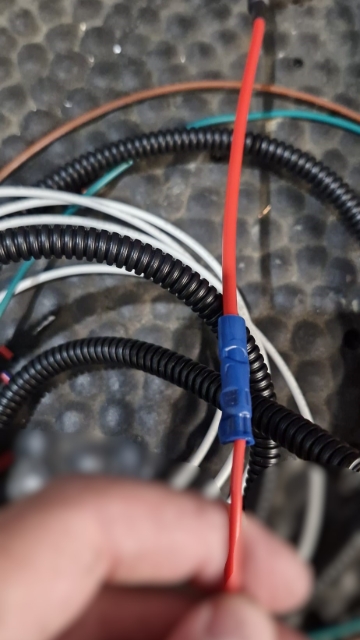

<p>Crimp the fuse blade holder to the red wire on the Camco in-cab loom.</p>

Crimp the fuse blade holder to the red wire on the Camco in-cab loom.

31
Step 31 of 44

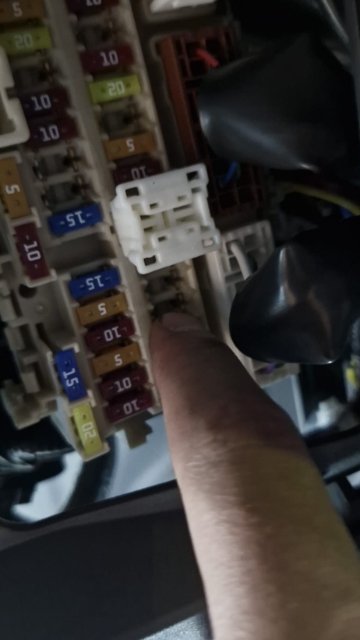

<p>Remove the 10amp fuse from the spot shown.</p>

Remove the 10amp fuse from the spot shown.

32
Step 32 of 44

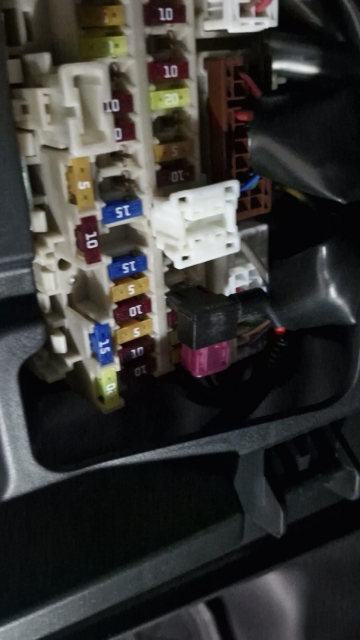

<p>Fit the fuse holder with two 10-amp fuses into the spot where the 10-amp factory fuse was.</p>

Fit the fuse holder with two 10-amp fuses into the spot where the 10-amp factory fuse was.

33
Step 33 of 44

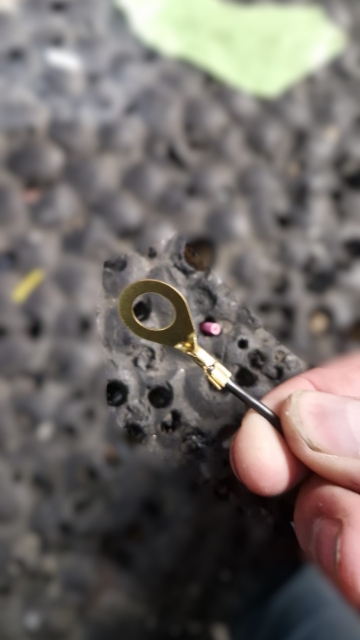

<p>Cut the original earth terminal off and replace it with an M8 one.</p>

Cut the original earth terminal off and replace it with an M8 one.

34
Step 34 of 44

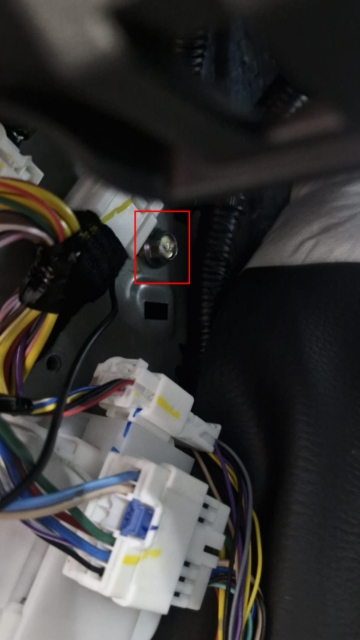

<p>Locate the earth and secure. </p>

Locate the earth and secure.

35
Step 35 of 44

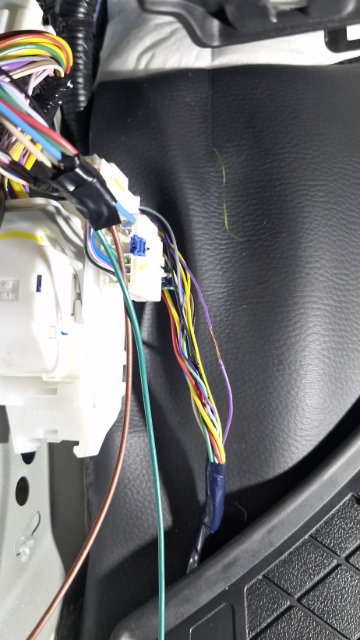

<p>Locate the Purple wire at the front of the vehicle by the kick panel. Ensure to test the right wire for the door ajar alarm and strip 10mm.</p>

Locate the Purple wire at the front of the vehicle by the kick panel. Ensure to test the right wire for the door ajar alarm and strip 10mm.

36
Step 36 of 44

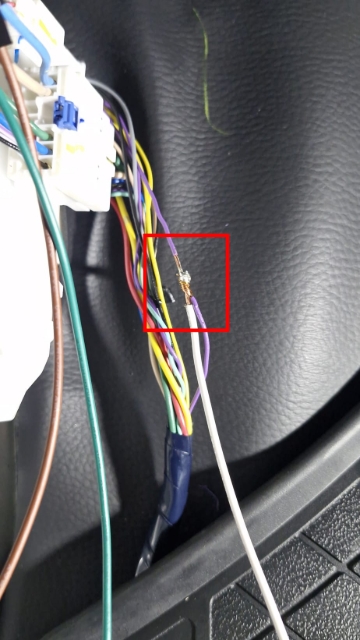

<p>Solder the White to Purple for door Ajarm Alarm.</p>

Solder the White to Purple for door Ajarm Alarm.

37
Step 37 of 44

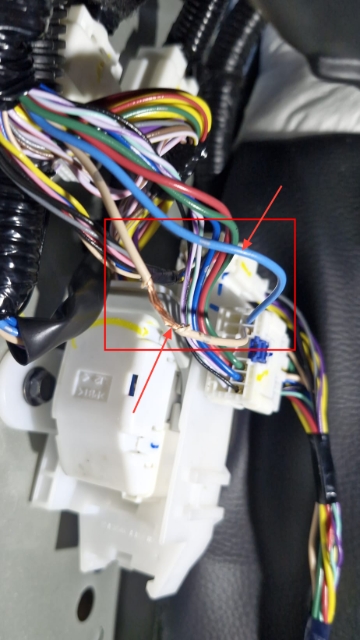

<p>Locate the Brown and Blue wire for the central locking and stip 10mm.</p>

Locate the Brown and Blue wire for the central locking and stip 10mm.

38
Step 38 of 44

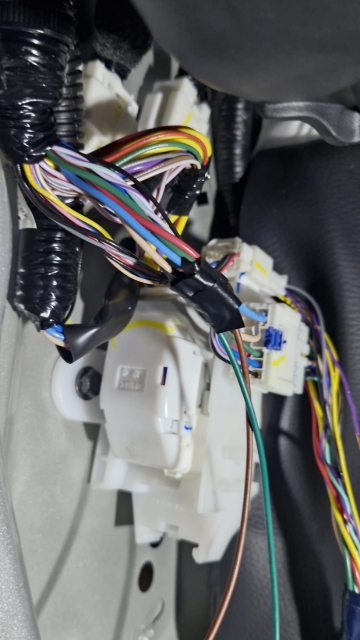

<p>Solder Green to Brown and Brown to Blue for central locking. Ensure to wrap all exposed wires in electrical tape.</p>

Solder Green to Brown and Brown to Blue for central locking. Ensure to wrap all exposed wires in electrical tape.

39
Step 39 of 44

Run the Cab to Canopy Camco Loom from the canopy through to the cab as shown. ensure it runs along the chassis.

40
Step 40 of 44

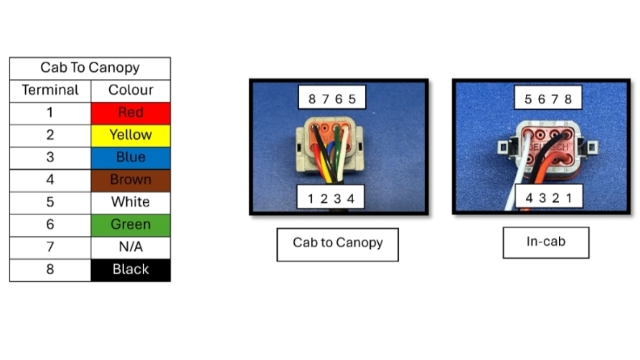

<p>Insert the colored wire from the Camco loom to the correct spot on the Deutch plug and then connect it to the camco cab loom.<br></p>

Insert the colored wire from the Camco loom to the correct spot on the Deutch plug and then connect it to the camco cab loom.

41
Step 41 of 44

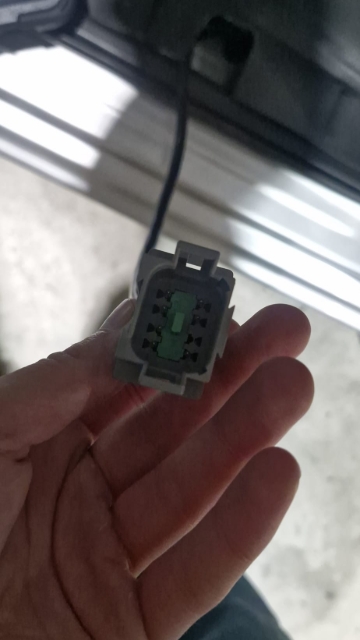

<p>Ensure there is a wedge for the plug to hold the wires in place.</p>

Ensure there is a wedge for the plug to hold the wires in place.

42
Step 42 of 44

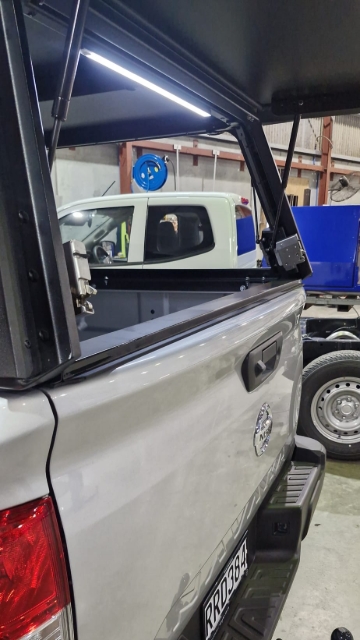

<p>Once all the wiring is connected. Reinstall the negative terminal to the battery and check the canopy works smoothly.</p>

Once all the wiring is connected. Reinstall the negative terminal to the battery and check the canopy works smoothly.

43
Step 43 of 44

Re-fit the trim and side kick panel.

44
Step 44 of 44
<p>Please fill out the hard copy QA sheet included with the product you got.</p><p>Once filled out, please send it back to</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>&nbsp;</p><p>If the hard copy does not arrive, please contact us.</p><p><a target="_blank" rel="noopener noreferrer nofollow" href="mailto:charl@camcoindustries.co.nz">charl@camcoindustries.co.nz</a></p><p>0800 663 500</p>

Please fill out the hard copy QA sheet included with the product you got.

Once filled out, please send it back to

charl@camcoindustries.co.nz



If the hard copy does not arrive, please contact us.

charl@camcoindustries.co.nz

0800 663 500
