TC - Customer Faceplate Removal

1

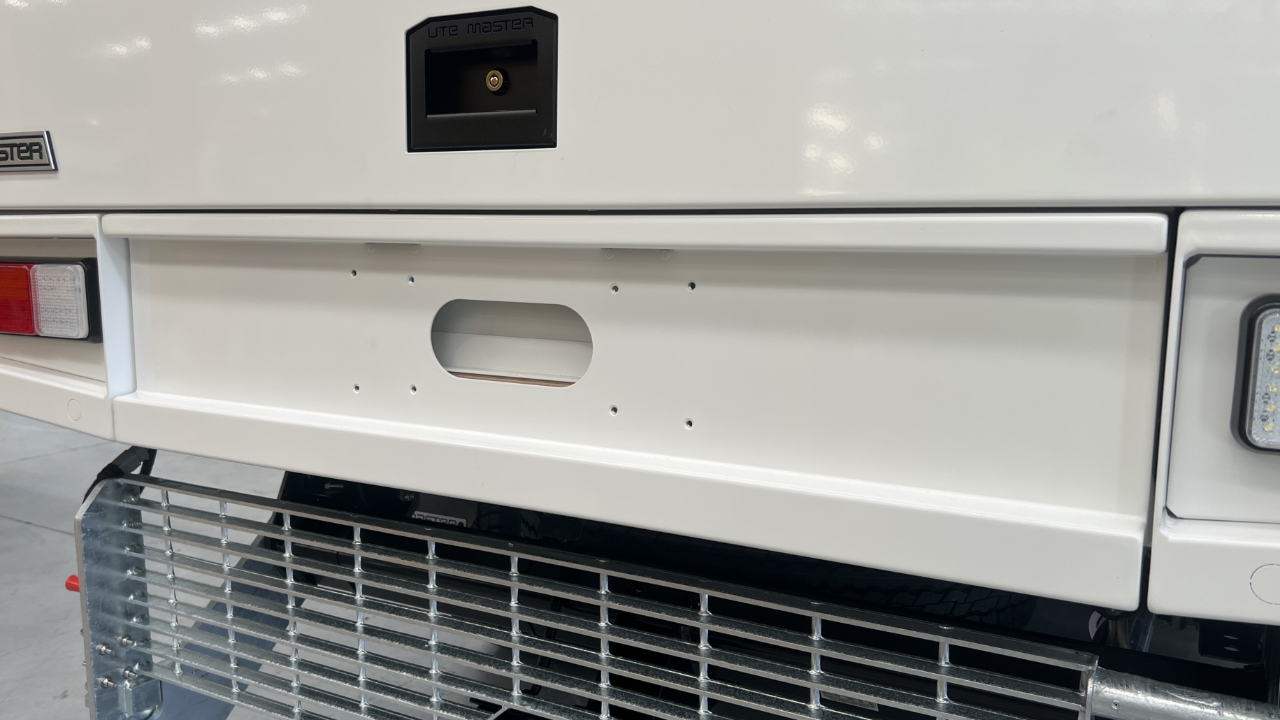

Step 1 of 8

If the drawer faceplate does not have rivets down either side (only top and underneath the handle) drill them out using a 4.9mm drill bit - skip to step 6

2

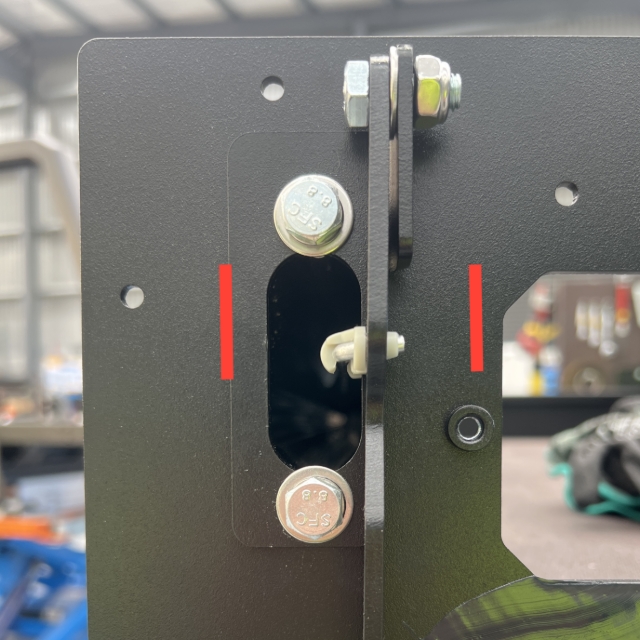

Step 2 of 8

<p>If you are unable to access the rivets on the faceplate, follow the steps below: </p><p></p><p>Mark 40mm and 90mm from the LHS of the faceplate.</p>

If you are unable to access the rivets on the faceplate, follow the steps below:

Mark 40mm and 90mm from the LHS of the faceplate.

3

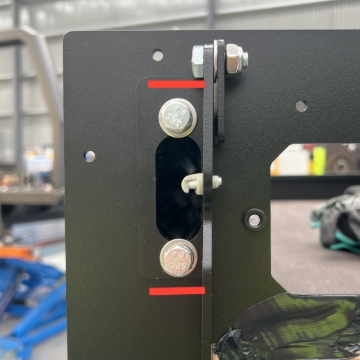

Step 3 of 8

<p>Mark 35mm and 130mm from the top of the faceplate. </p>

Mark 35mm and 130mm from the top of the faceplate.

4

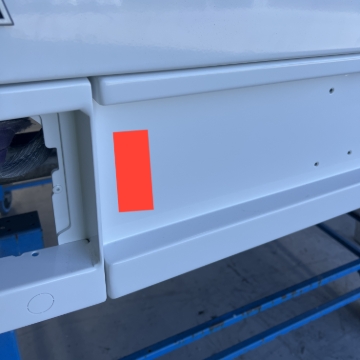

Step 4 of 8

<p>Angle grind this rectangle out of the faceplate.</p>

Angle grind this rectangle out of the faceplate.

5

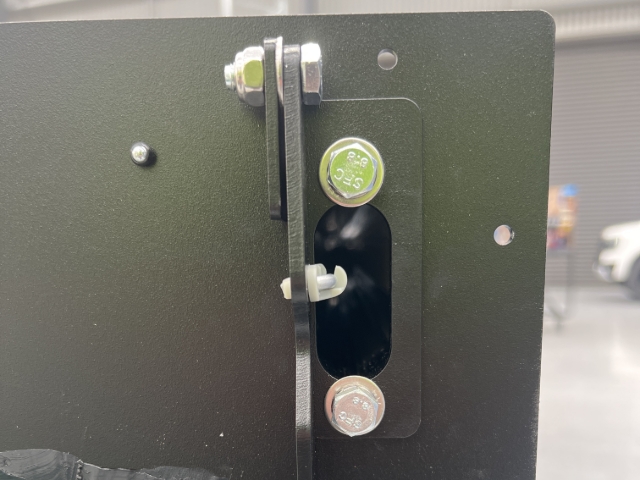

Step 5 of 8

<p>Repeat steps 1-3 on the RHS of the faceplate.</p>

Repeat steps 1-3 on the RHS of the faceplate.

6

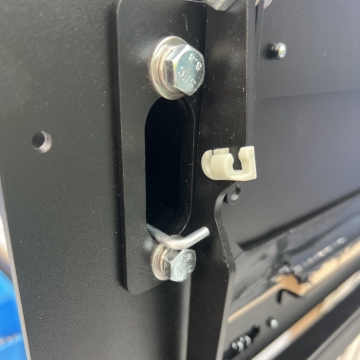

Step 6 of 8

<p>Disconnect the locking rods on both sides of the drawer handle.</p>

Disconnect the locking rods on both sides of the drawer handle.

7

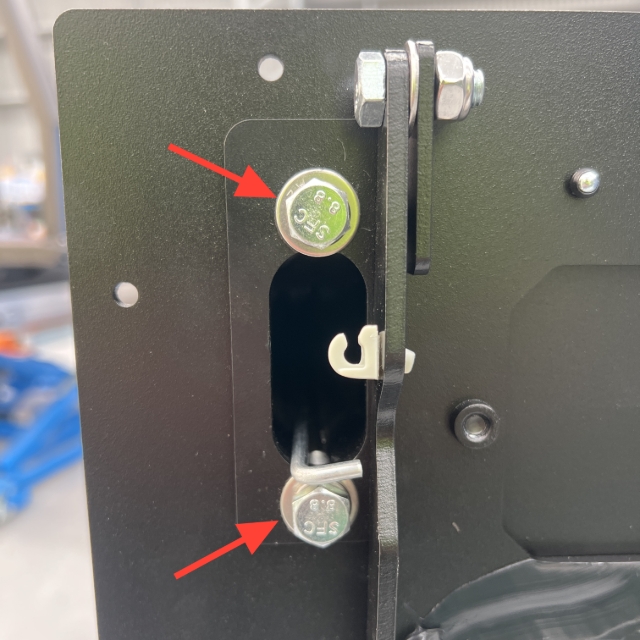

Step 7 of 8

<p>Remove the 2 x M8 hex bolts from each side of the faceplate/extrusion using a 13mm socket.</p>

Remove the 2 x M8 hex bolts from each side of the faceplate/extrusion using a 13mm socket.

8

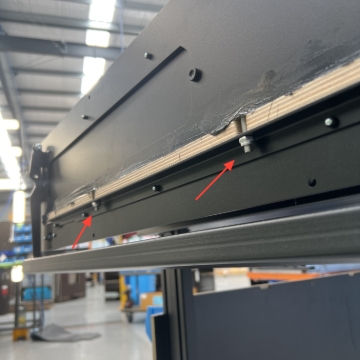

Step 8 of 8

<p>The faceplate still has inaccessible clamping bolts holding it to the plywood, but can now be removed by pulling with a bit of force.</p>

The faceplate still has inaccessible clamping bolts holding it to the plywood, but can now be removed by pulling with a bit of force.
