Mullion start up

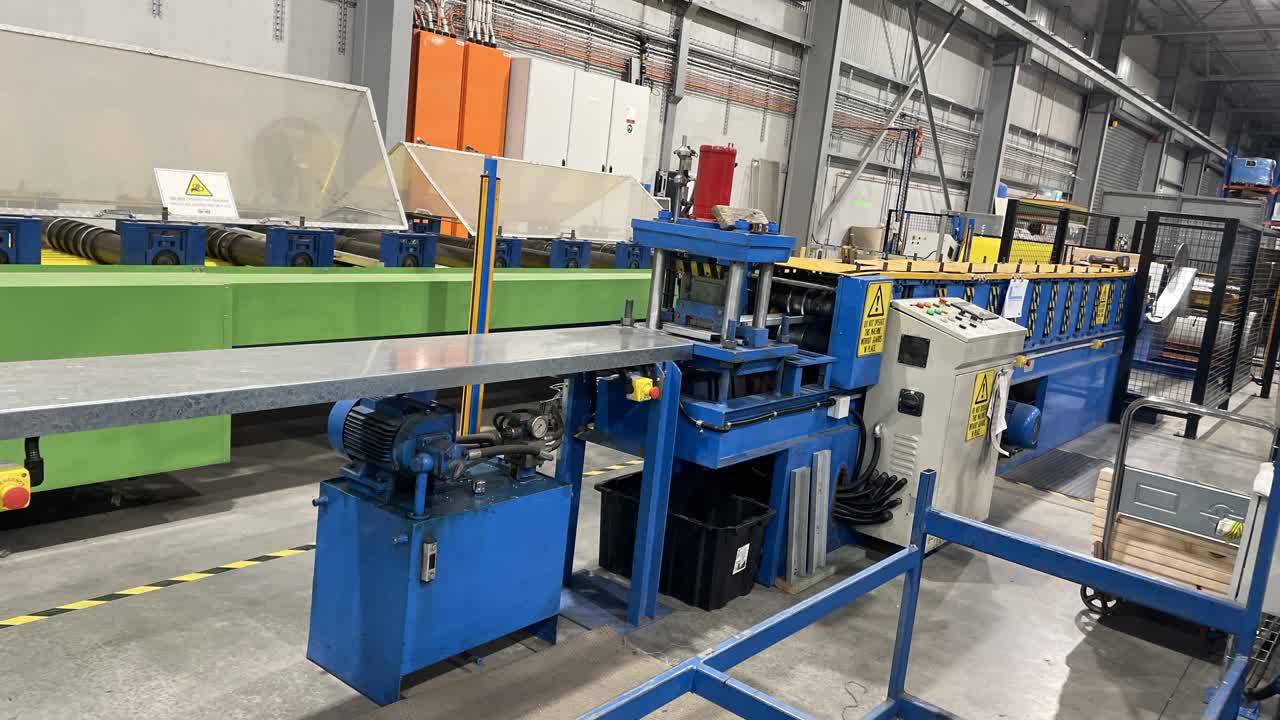

How to Start Up Mullion
How to Start Up Mullion
1
Step 1 of 12

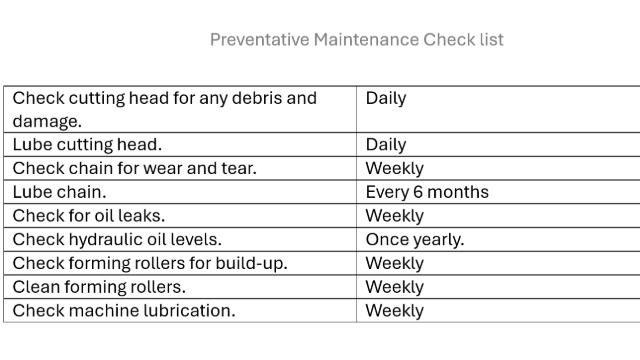

<p>Preventative Maintenance Checks.</p>

Preventative Maintenance Checks.

2
Step 2 of 12

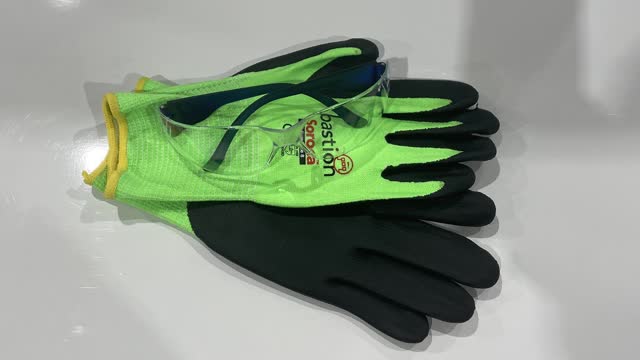

<p>Personal Protective Equipment (PPE). Gloves and Safety Glasses. If you don’t already have a pair of gloves or safety glasses, please see the store person.</p>

Personal Protective Equipment (PPE). Gloves and Safety Glasses. If you don’t already have a pair of gloves or safety glasses, please see the store person.

3
Step 3 of 12

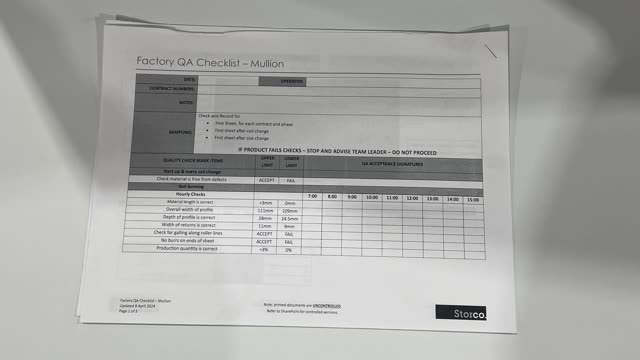

<p>QA Sheet. You will find a QA sheet at the machine, if there is no QA sheet there, see the team leader or production. A QA sheet will need to be completed at the start, throughout and, at the end of the day.</p>

QA Sheet. You will find a QA sheet at the machine, if there is no QA sheet there, see the team leader or production. A QA sheet will need to be completed at the start, throughout and, at the end of the day.

4
Step 4 of 12

There are no tools required.

5
Step 5 of 12

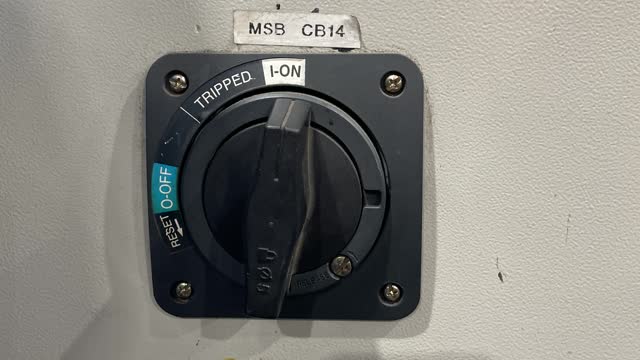

<p>Turn the main isolater switch (power switch) to On.</p>

Turn the main isolater switch (power switch) to On.

6
Step 6 of 12

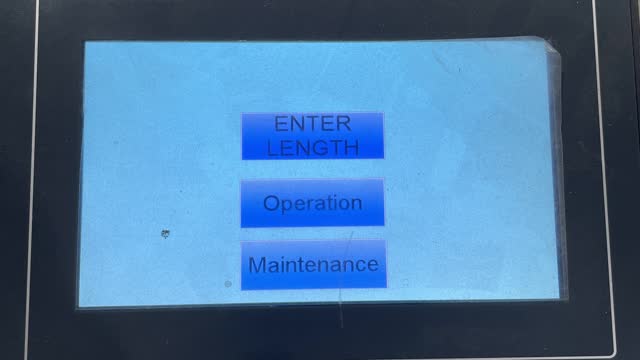

<p>Press the blue Enter Length button.</p>

Press the blue Enter Length button.

7
Step 7 of 12

Reset by pressing the fluro yellow Stop button and then the Fluro yellow Curtain button.

8
Step 8 of 12

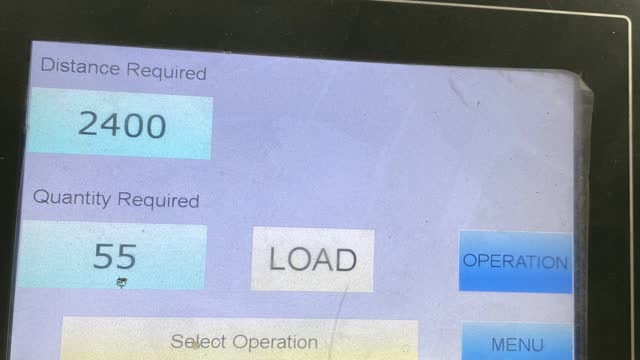

<p>Enter your measurements into the Distance Required section and quantity into the Quantity Required section.</p>

Enter your measurements into the Distance Required section and quantity into the Quantity Required section.

9
Step 9 of 12

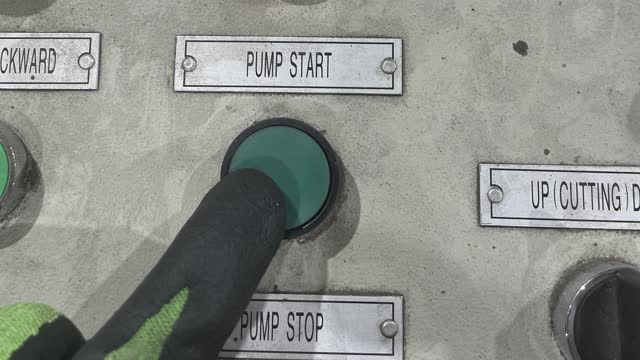

<p>Press the green Pump Start button</p>

Press the green Pump Start button

10
Step 10 of 12

Press the yellow Load button and the blue Operation button.

11
Step 11 of 12

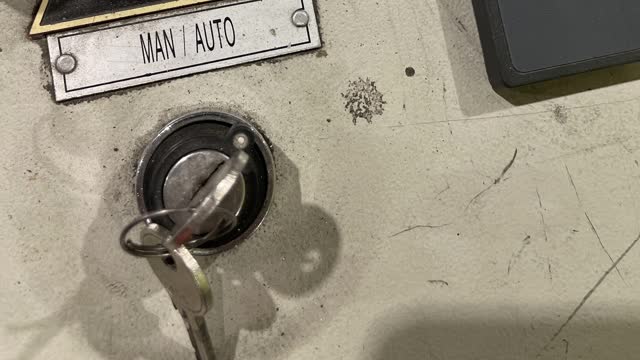

<p>Make sure key is turned to Auto.</p>

Make sure key is turned to Auto.

12

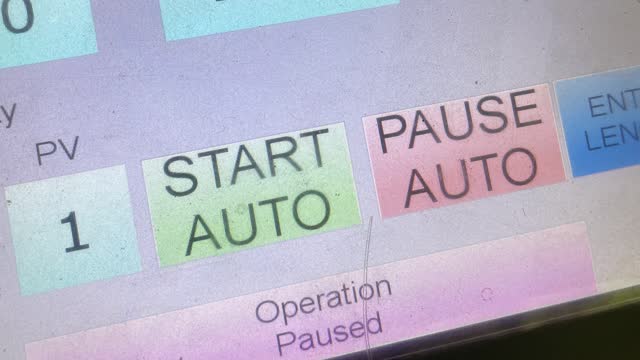

Step 12 of 12
<p>Press the green Start Auto button.</p>

Press the green Start Auto button.
