Re-Fit Reversing Sensors: LDV T60
1
Step 1 of 8

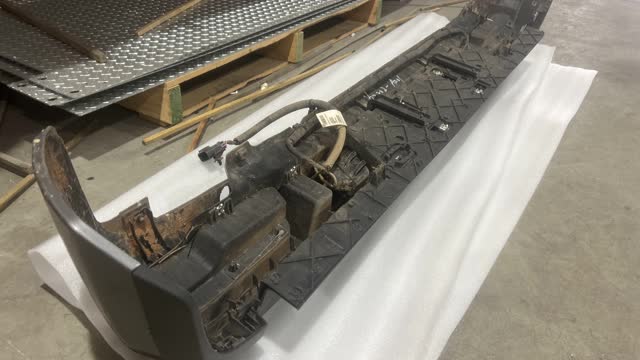

<p>Get the original bumper from the tub</p>

Get the original bumper from the tub

2
Step 2 of 8

Cut all the clips which are holding the sensor harness to the pub for

3
Step 3 of 8

The sensor harness will look like this once it is removed

4
Step 4 of 8

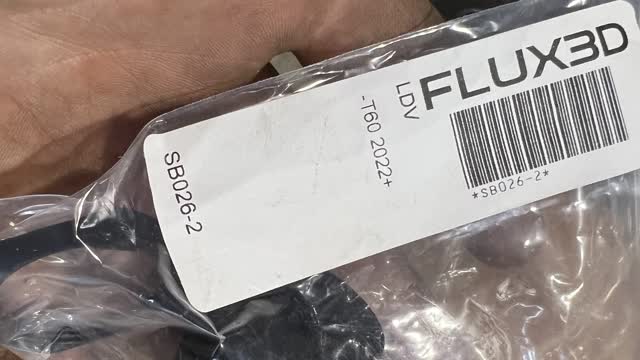

<p>These are the correct sensor HOLDER brackets to use if the vehicle has two sensors</p>

These are the correct sensor HOLDER brackets to use if the vehicle has two sensors

5
Step 5 of 8

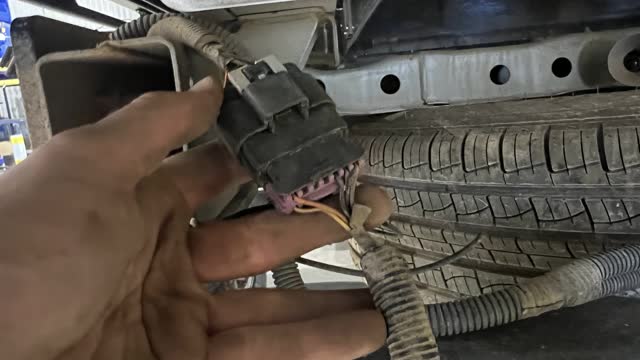

<p>Connect the reversing Centre harness stop. This is located on the passenger side rear</p>

Connect the reversing Centre harness stop. This is located on the passenger side rear

6
Step 6 of 8

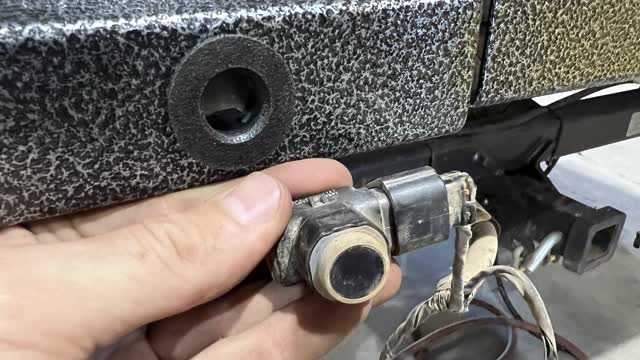

<p>The plug on the sensor should say Steve towbar. It will look like this.</p>

The plug on the sensor should say Steve towbar. It will look like this.

7
Step 7 of 8

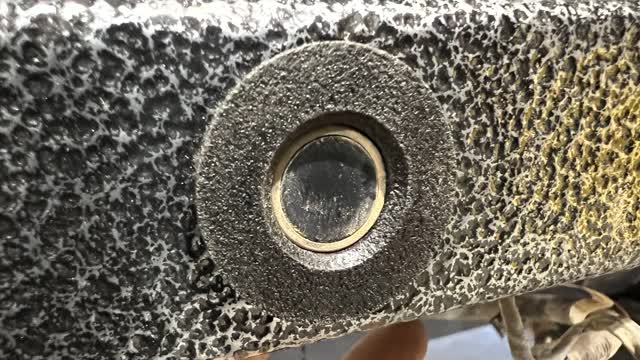

<p>It should look like this. Noticed that the white plastic boot is not pinched. It is even all the way around the sensor.</p>

It should look like this. Noticed that the white plastic boot is not pinched. It is even all the way around the sensor.

8
Step 8 of 8

With a second person, put the vehicle in reverse, and make sure his sensors be inside the cabin as expected when they detect an object
