FUEL FILLER, FLAT DECK
1

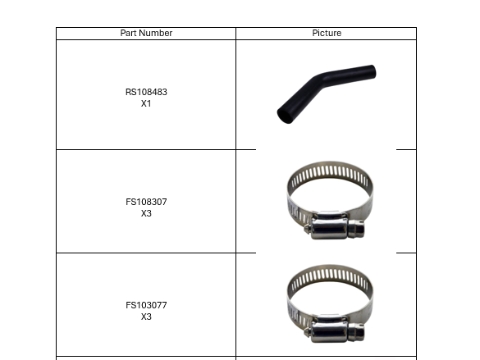

Step 1 of 9
2

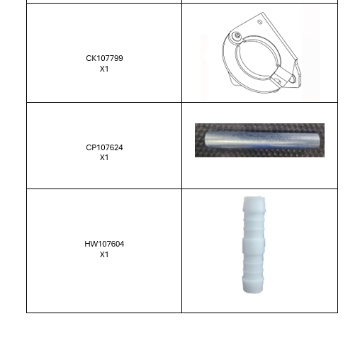

Step 2 of 9
3

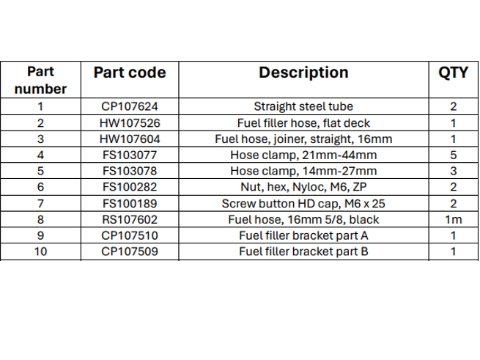

Step 3 of 9
4
Step 4 of 9

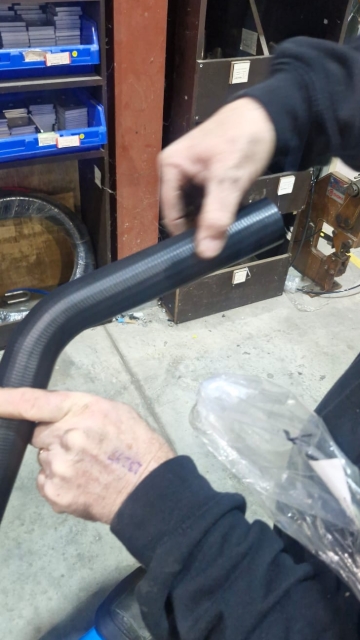

<p>Cut the 45-degree hose where the finger is showing.</p>

Cut the 45-degree hose where the finger is showing.

5
Step 5 of 9

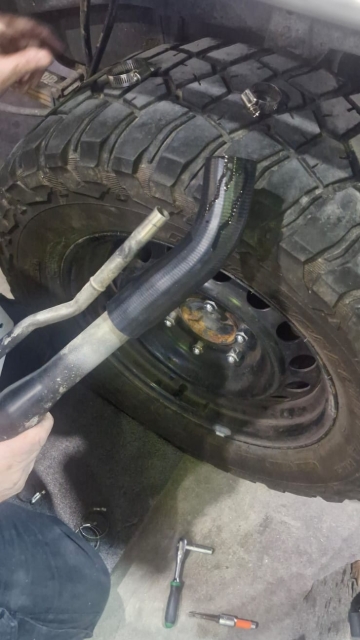

<p>Attach the hose to the fuel funnel.</p>

Attach the hose to the fuel funnel.

6
Step 6 of 9

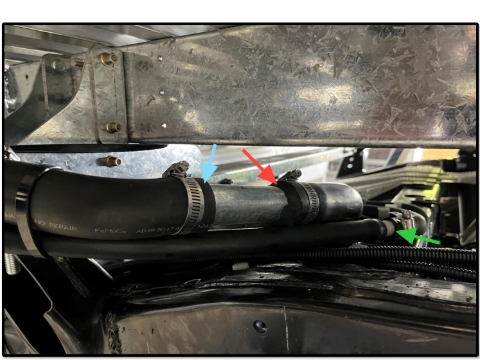

<p>Insert the steel tube into the existing hose shown by the red arrow, and then install the newly cut hose onto the end of the steel tube shown by the blue arrow.</p><p>Install the fuel breather hose to the tube shown by the green.</p>

Insert the steel tube into the existing hose shown by the red arrow, and then install the newly cut hose onto the end of the steel tube shown by the blue arrow.

Install the fuel breather hose to the tube shown by the green.

7
Step 7 of 9
<p>Tighten the hoses to the tubing and fuel funnel using the clamps shown.</p>

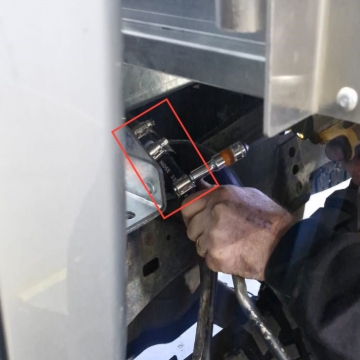

Tighten the hoses to the tubing and fuel funnel using the clamps shown.

8
Step 8 of 9

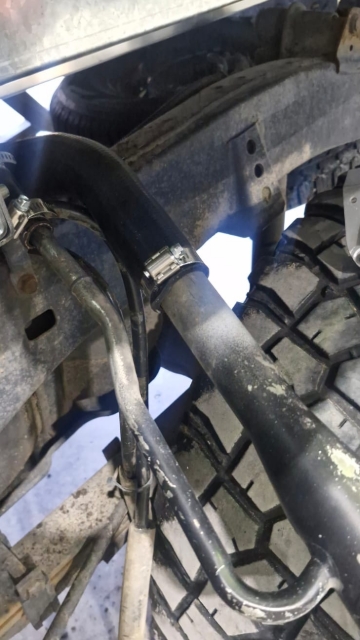

<p>Hoses are fully clamped up. </p>

Hoses are fully clamped up.

9
Step 9 of 9

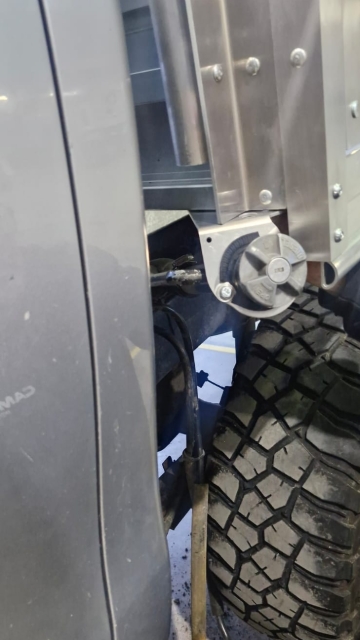

<p>Install the bracket to hold the fuel filler to the flat deck, and fit the filler to the bracket and tighten it to spec.</p>

Install the bracket to hold the fuel filler to the flat deck, and fit the filler to the bracket and tighten it to spec.
