Tub Removal, Isuzu DMax - Holden Colorado (2012-2021)

Knowby

Tub Removal, Isuzu DMax - Holden Colorado (2012-2021)

1

Step 1 of 35

Suit 2012-2020 Model

Use same instructions for both Dual cab and Extra Cab Models

2

Step 2 of 35

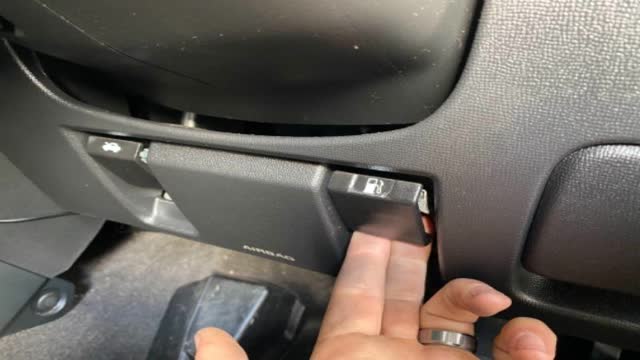

<p>Release Fuel Filler Lid and undo Fuel Cap.</p>

Release Fuel Filler Lid and undo Fuel Cap.

3

Step 3 of 35

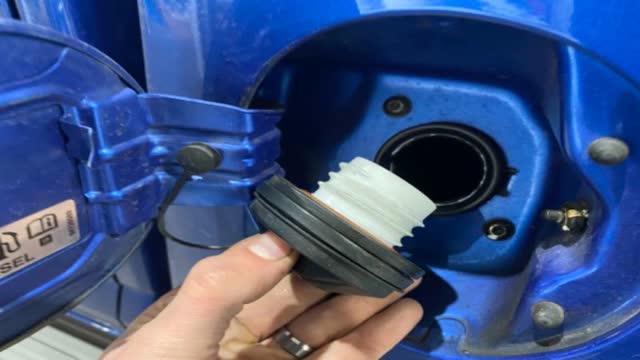

<p>Remove cap</p>

Remove cap

4

Step 4 of 35

T27 Torx to undo

Note on a DMax, use standard Philips head

5

Step 5 of 35

Remove inner guard, passenger side T20 Torx 8mm socket 10mm socket

6

Step 6 of 35

Remove inner guard

7

Step 7 of 35

Drivers side inner, partially remove

8

Step 8 of 35

Remove filler from tub

9

Step 9 of 35

Rotate to release fuel cable

10

Step 10 of 35

Remove bracing bracket, pass side

11

Step 11 of 35

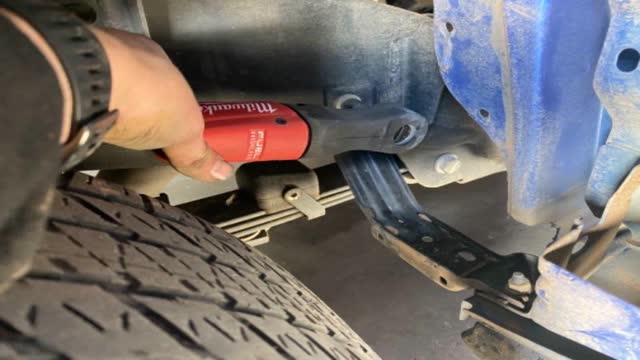

<p>Bracing bracket, driv side</p>

Bracing bracket, driv side

12

Step 12 of 35

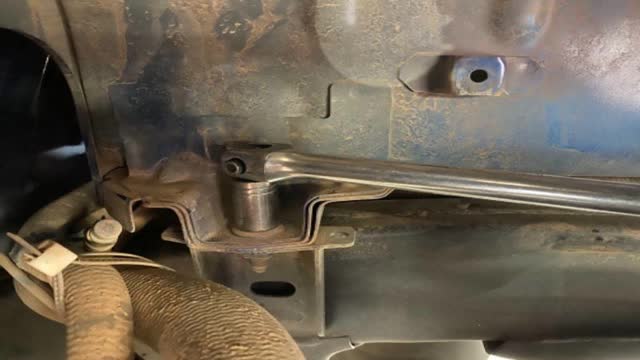

<p>17mm breaker on front, tight</p>

17mm breaker on front, tight

13

Step 13 of 35

17mm front

14

Step 14 of 35

17mm with extension middle

15

Step 15 of 35

17mm rear

16

Step 16 of 35

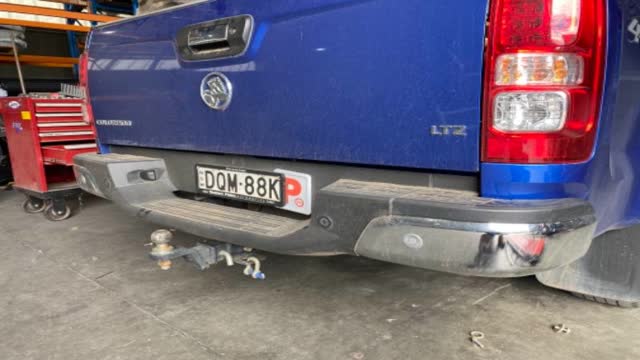

<p>Skip steps if no bumper</p>

Skip steps if no bumper

17

Step 17 of 35

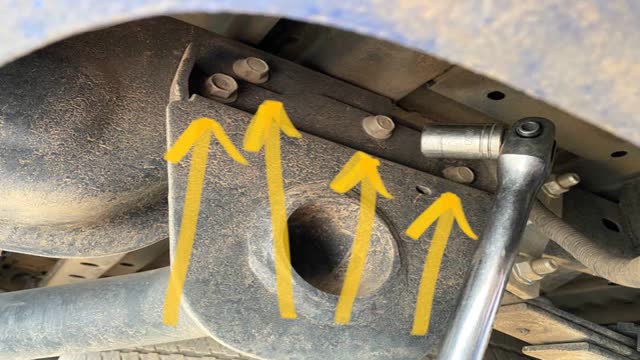

<p>17mm breaker</p>

17mm breaker

18

Step 18 of 35

Remove all except front one, Towbar will pivot down

19

Step 19 of 35

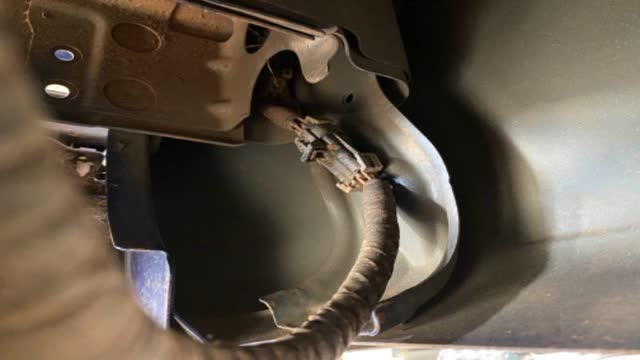

<p>Unplug wiring attached to tub</p>

Unplug wiring attached to tub

20

Step 20 of 35

Remove bumper

21

Step 21 of 35

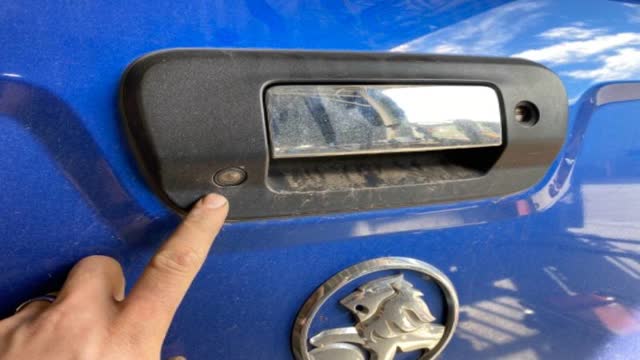

<p>Camera</p>

Camera

22

Step 22 of 35

T20 cover plate

23

Step 23 of 35

10mm

24

Step 24 of 35

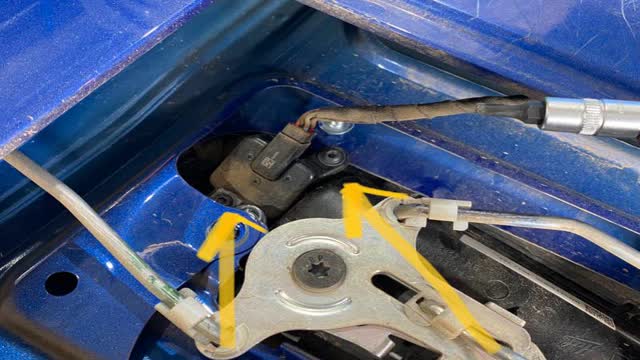

<p>T20 to remove camera for latch assembly</p>

T20 to remove camera for latch assembly

25

Step 25 of 35

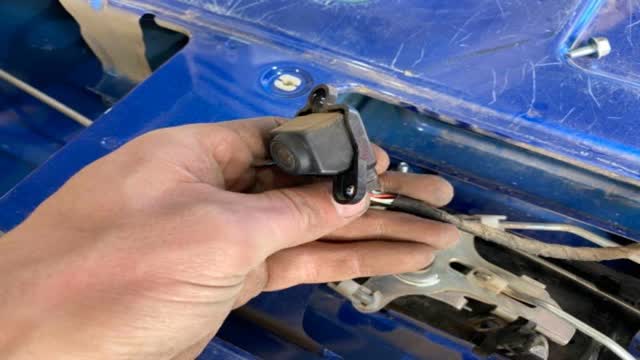

<p>Camera</p>

Camera

26

Step 26 of 35

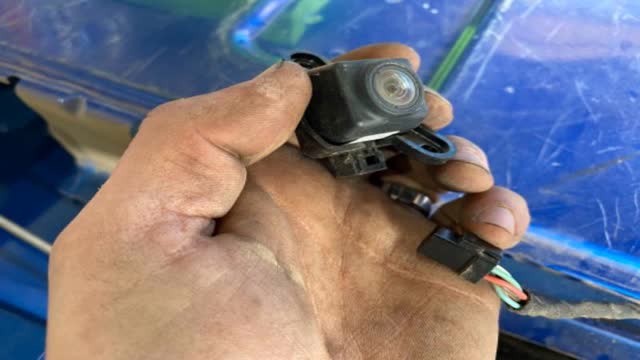

<p>Unplug it</p>

Unplug it

27

Step 27 of 35

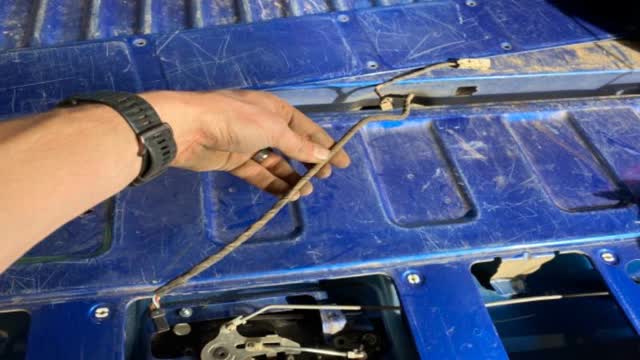

<p>Remove harness</p>

Remove harness

28

Step 28 of 35

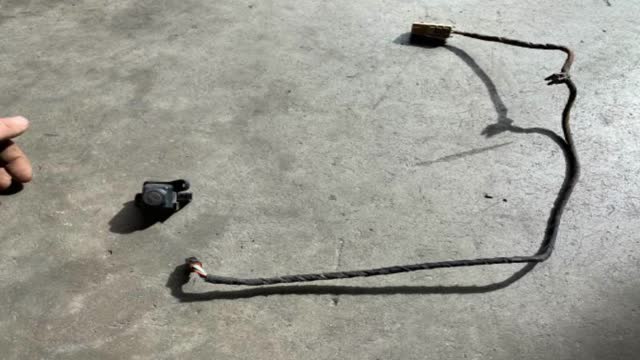

<p>Harness</p>

Harness

29

Step 29 of 35

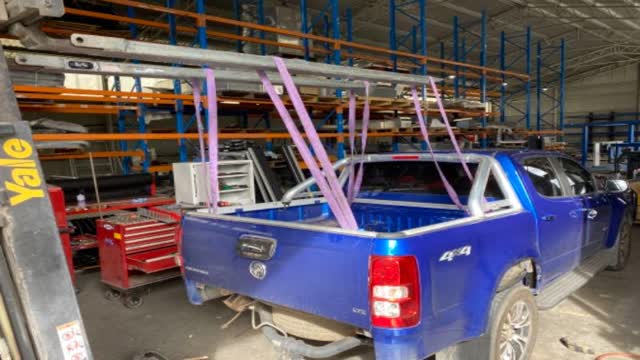

<p>Suitable</p>

Suitable

30

Step 30 of 35

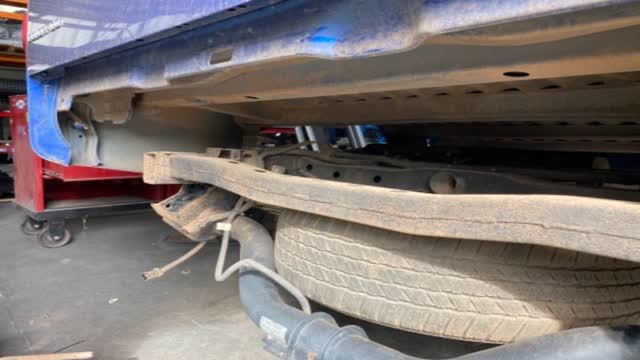

<p>Check</p>

Check

31

Step 31 of 35

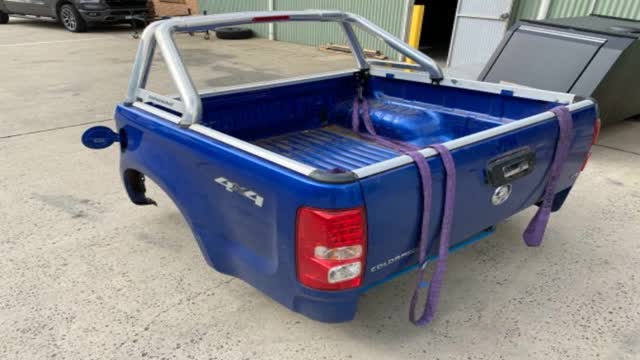

<p>Sit on pallets</p>

Sit on pallets

32

Step 32 of 35

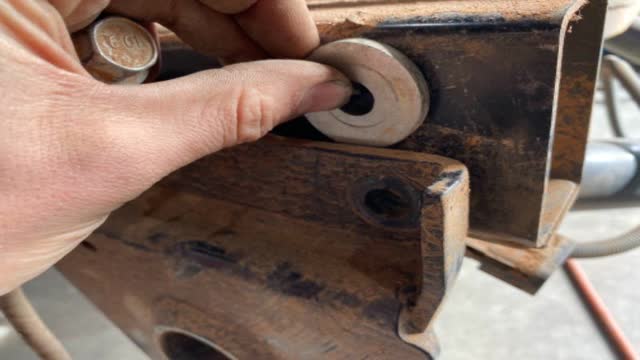

<p>Use spacers, to mimic the step that has been removed</p>

Use spacers, to mimic the step that has been removed

33

Step 33 of 35

Refit towbar

34

Step 34 of 35

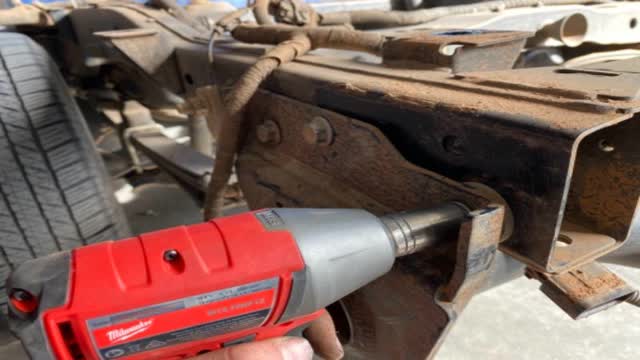

<p>17mm tighten Towbar</p>

17mm tighten Towbar

35

Step 35 of 35

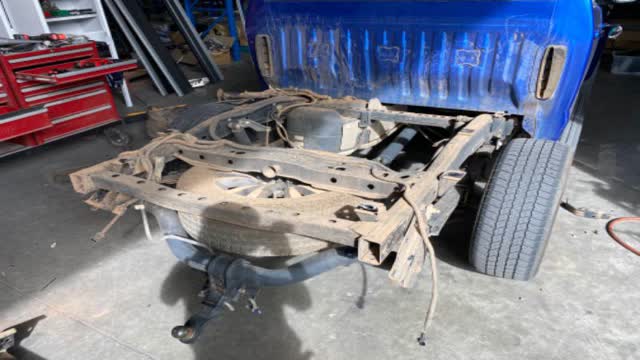

<p>Remove</p>

Remove
