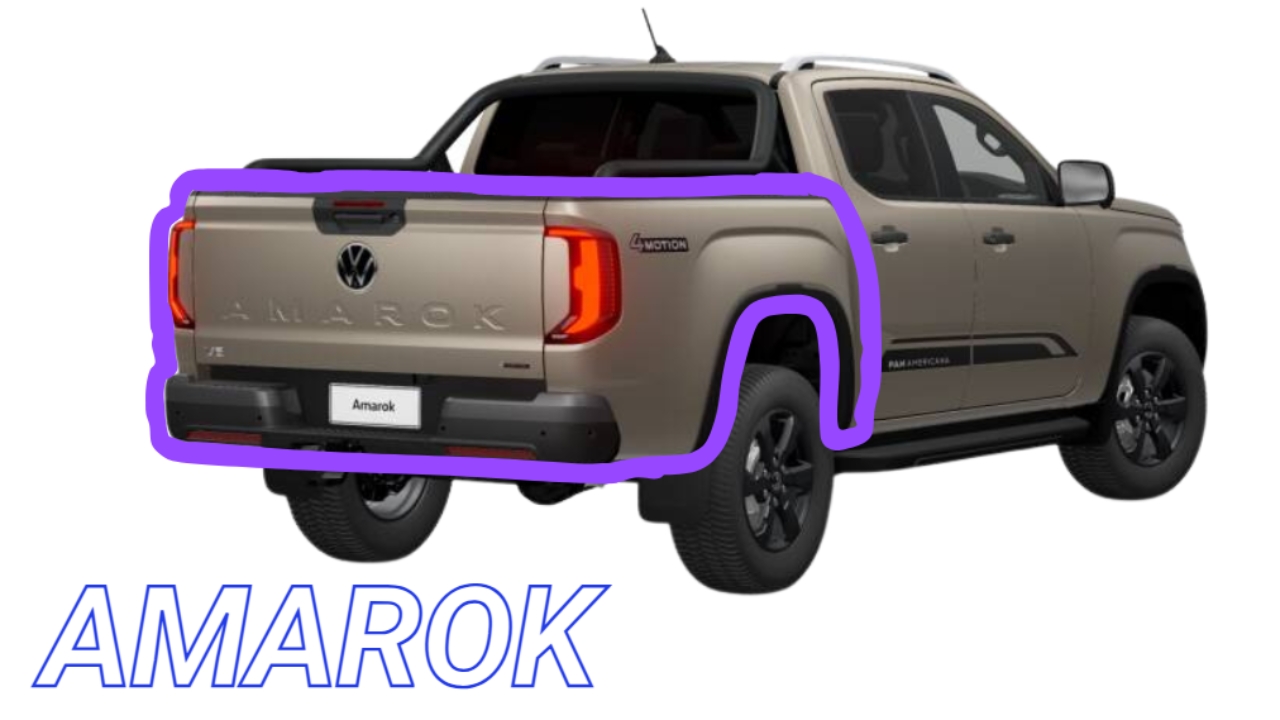

How to Remove Truck Bed/Tub: All New Amarok

1

Step 1 of 36

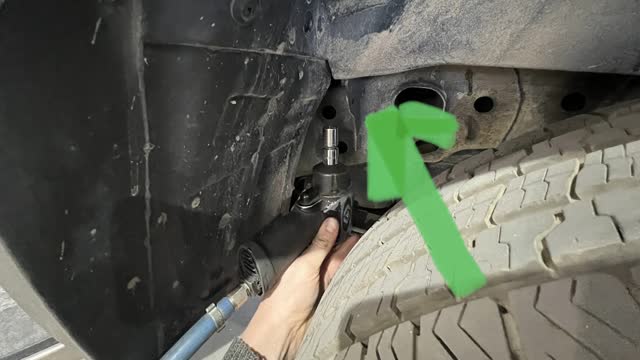

<p>Front mount, 15mm</p>

Front mount, 15mm

2

Step 2 of 36

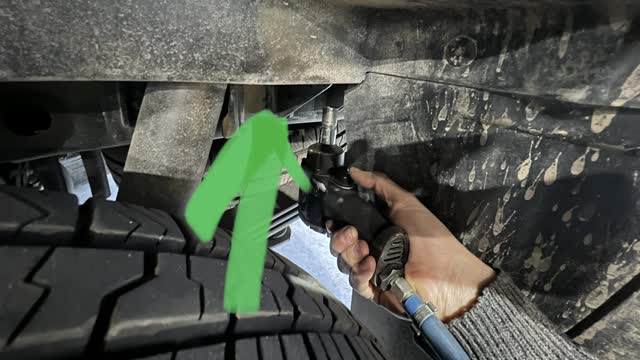

<p>Middle mount, 15mm</p>

Middle mount, 15mm

3

Step 3 of 36

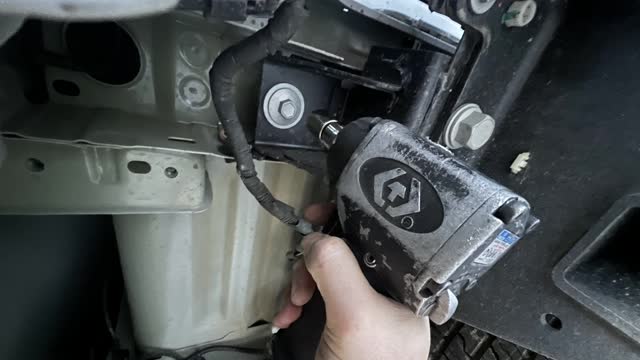

<p>Rear mount, 15mm</p>

Rear mount, 15mm

4

Step 4 of 36

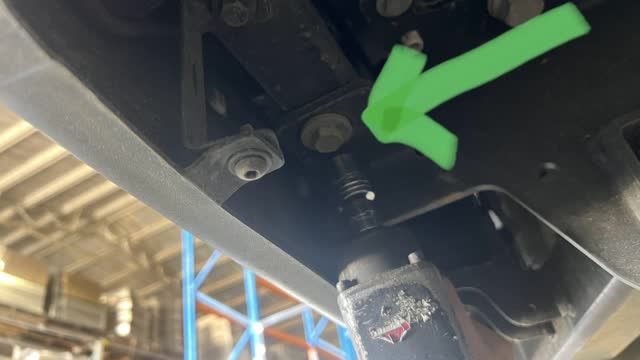

<p>Rear Bumper, 18mm</p>

Rear Bumper, 18mm

5

Step 5 of 36

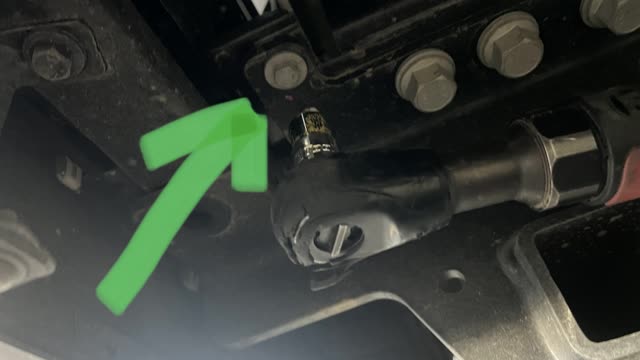

<p>Rear bumper, 13mm</p>

Rear bumper, 13mm

6

Step 6 of 36

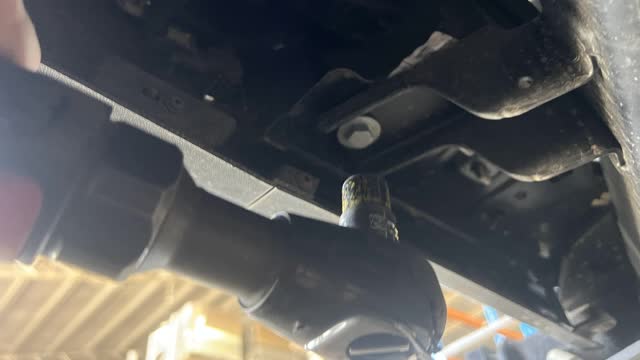

<p>Rear bumper (inner), 13mm</p>

Rear bumper (inner), 13mm

7

Step 7 of 36

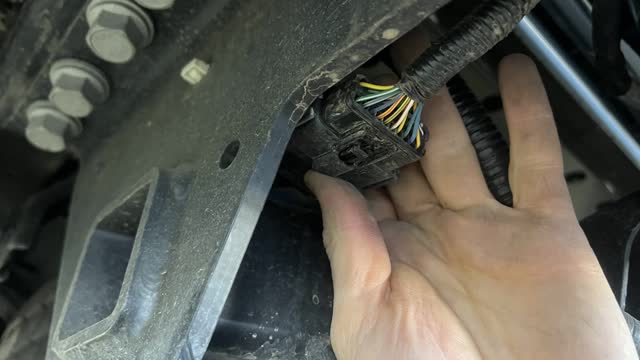

<p>Disconnect rear bumper plug, passenger side</p>

Disconnect rear bumper plug, passenger side

8

Step 8 of 36

Remove bumper

9

Step 9 of 36

Open tailgate

10

Step 10 of 36

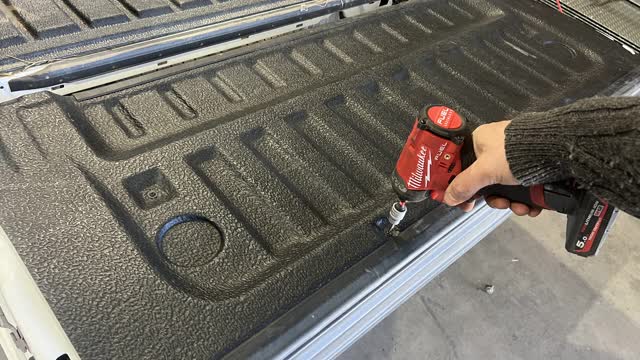

<p>T20 Torx Bit, remove tailgate cover screws</p>

T20 Torx Bit, remove tailgate cover screws

11

Step 11 of 36

Pull up plastic cover

12

Step 12 of 36

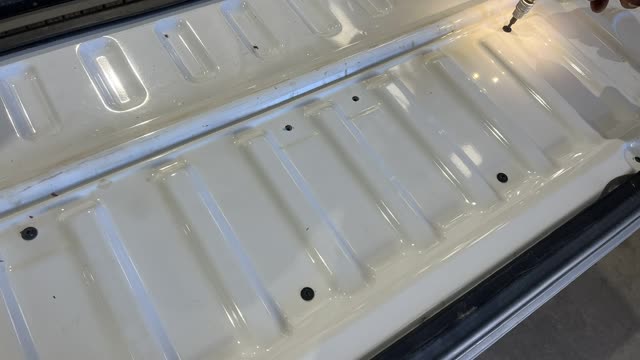

<p>T20, remove additional (4) screws</p>

T20, remove additional (4) screws

13

Step 13 of 36

Remove steel panel

14

Step 14 of 36

Unplug tailgate brake light, pass side

15

Step 15 of 36

Unplug tailgate lock actuator, drivers side

16

Step 16 of 36

T20 Torx to undo camera bracket. It is loose enough to do by hand

17

Step 17 of 36

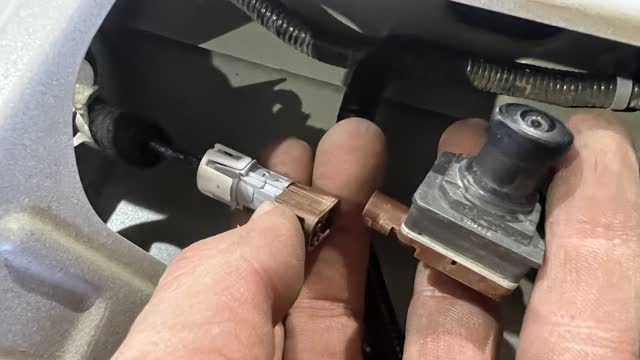

<p>Unplug camera</p>

Unplug camera

18

Step 18 of 36

Use tool to remove all clips so harness is free from tailgate

19

Step 19 of 36

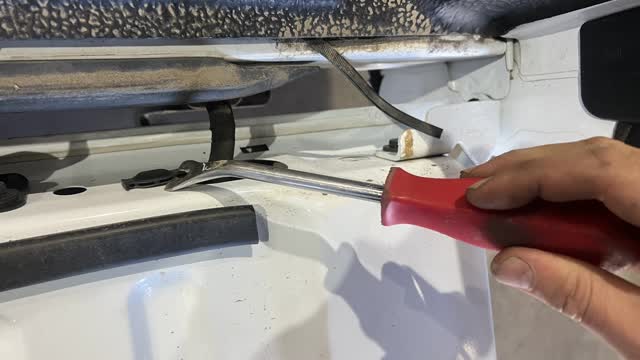

<p>Use removal tool, drivers side of tailgate</p>

Use removal tool, drivers side of tailgate

20

Step 20 of 36

Pull harness out of tailgate, then feed it through the hole in tub

21

Step 21 of 36

Close tailgate

22

Step 22 of 36

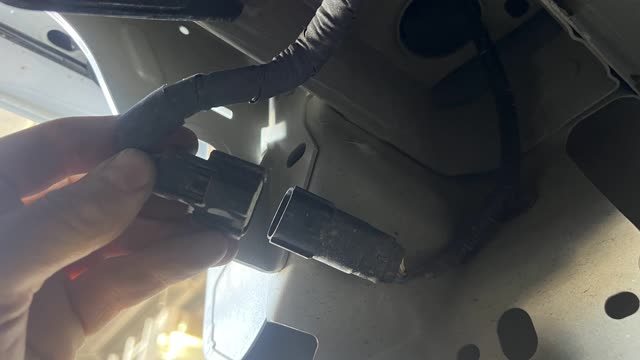

<p>Unplug tail light, pass side</p>

Unplug tail light, pass side

23

Step 23 of 36

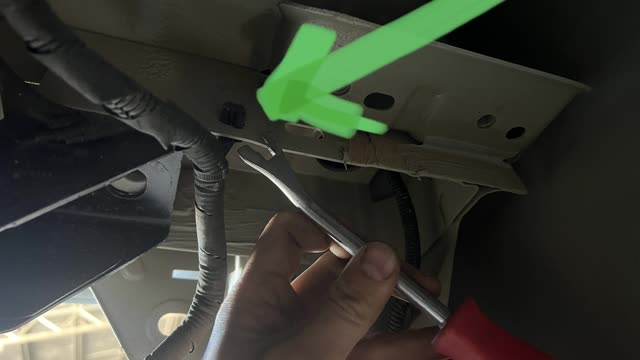

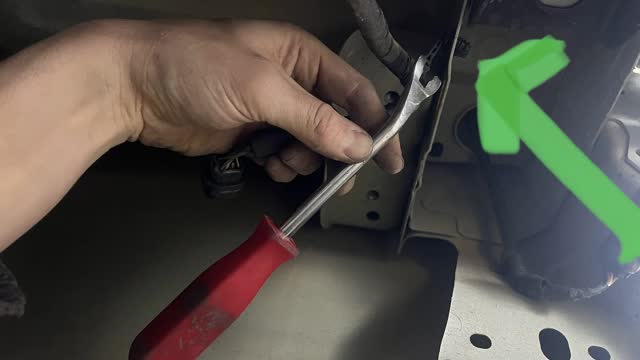

<p>Clip</p>

Clip

24

Step 24 of 36

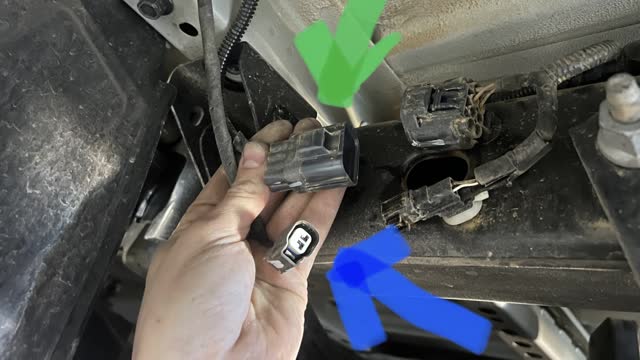

<p>Undo 12v plug (green arrow) and tub light (blue arrow)</p>

Undo 12v plug (green arrow) and tub light (blue arrow)

25

Step 25 of 36

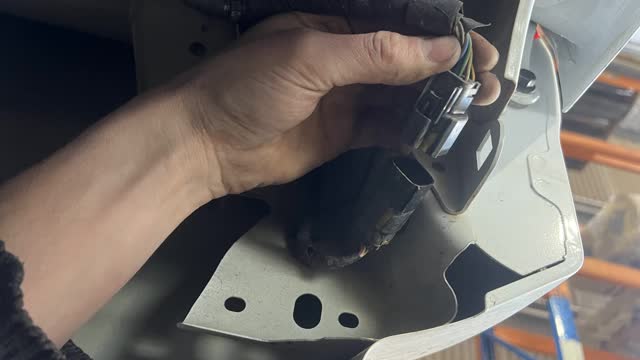

<p>Drivers side tail light</p>

Drivers side tail light

26

Step 26 of 36

<p>Clip</p>

Clip

27

Step 27 of 36

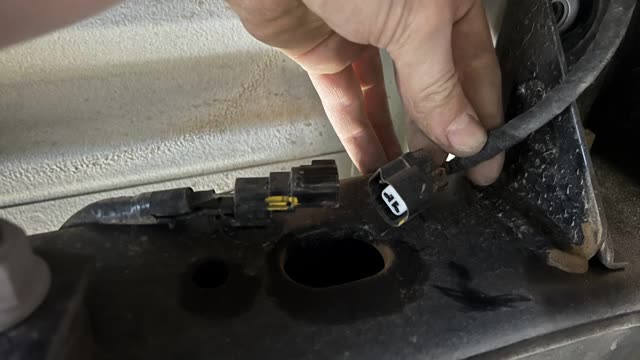

<p>Unplug tub internal light, drivers side</p>

Unplug tub internal light, drivers side

28

Step 28 of 36

Open fuel

29

Step 29 of 36

Remove clips

30

Step 30 of 36

Cut away, pass side around rivets

31

Step 31 of 36

Peel back plastic

32

Step 32 of 36

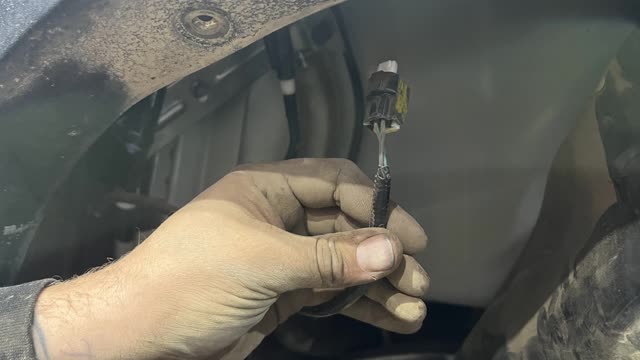

<p>Disconnect fuel release</p>

Disconnect fuel release

33

Step 33 of 36

8mm for fuel neck

34

Step 34 of 36

Pull out neck

35

Step 35 of 36

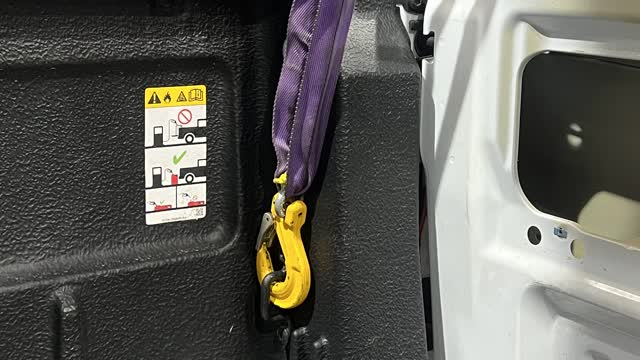

<p>Lifting straps</p>

Lifting straps

36

Step 36 of 36

With a second person, slowly, carefully lift off
