Using the Infaco E-Crimper Tool
Operation of the Infaco F3020 ProCrimper Tool for joining & repairing of wires.
Operation of the Infaco F3020 ProCrimper Tool for joining & repairing of wires.
1
Step 1 of 6

Before powering on crimpers:

  • Ensure PPE is worn - face shield, gloves, protective clothing and boots.

  • Always KEEP HANDS AWAY WHEN POWERING ON.

Caution: When power turns on there is a risk of the jaws of the crimpers pinching or crushing fingers.

2
Step 2 of 6

Turn on crimpers (button at base of handle).

Press the trigger TWICE for initialisation of the crimpers. (LED flashes green).

Crimpers are ready for use.

3
Step 3 of 6

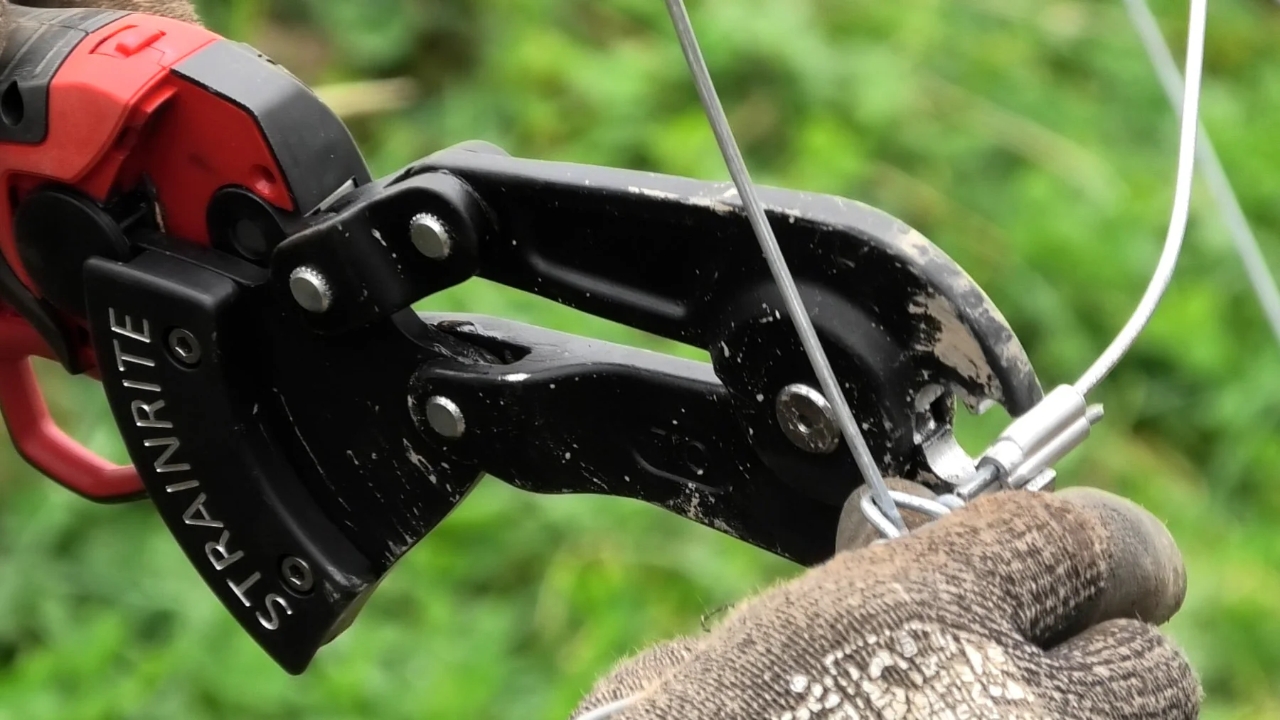

Place crimp on wire end and feed the other wire end through until the crimp is at the required wire joining position and tension.

4
Step 4 of 6

Begin crimping, starting at one end of the crimp and commence crimping by engaging the trigger.


5
Step 5 of 6

Continue crimping.

Crimp 4 to 5 times, ensuring each crimp overlaps previous crimp position to eliminate shoulders.




6
Step 6 of 6

Check that the crimp join has been completed satisfactory and if necessary, remove excess wire ends.
