Fuel Filler: Amarok, Dual Cab

1

Step 1 of 12

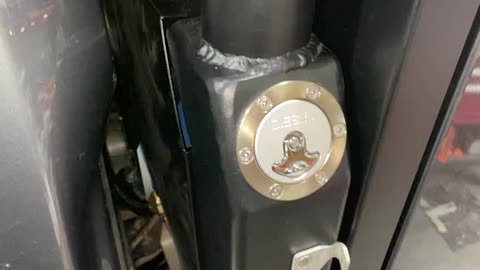

Looks like this when complete

2

Step 2 of 12

Vehicle comes like this, original filler will be removed.

3

Step 3 of 12

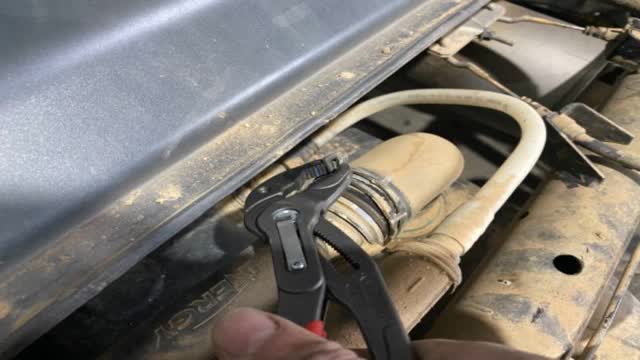

<p>Remove Clamp</p>

Remove Clamp

4

Step 4 of 12

Remove and discard

5

Step 5 of 12

Fit Tray to vehicle

6

Step 6 of 12

Remove elbow from top of vehicle tank.

7

Step 7 of 12

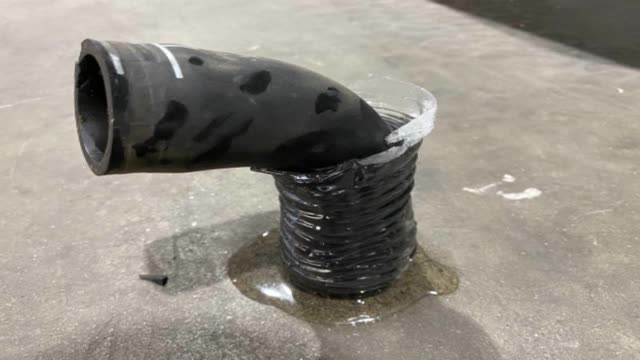

<p>IMPORTSNT TIP: Boil a jug of water, put the hose into hot water to soften end</p>

IMPORTSNT TIP: Boil a jug of water, put the hose into hot water to soften end

8

Step 8 of 12

Fit hose to end of stainless reducer. Will look like this

9

Step 9 of 12

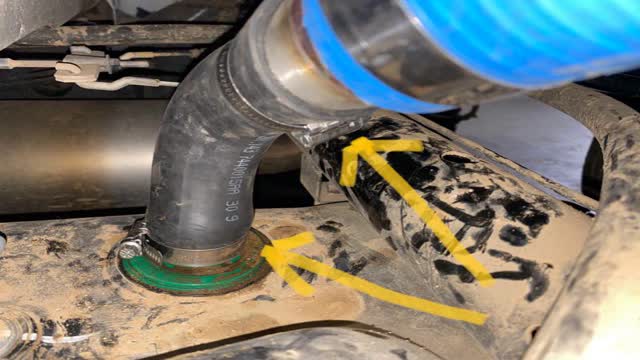

<p>Fit to tank, tighten both clamps, 7mm</p>

Fit to tank, tighten both clamps, 7mm

10

Step 10 of 12

Identify supplied breather

11

Step 11 of 12

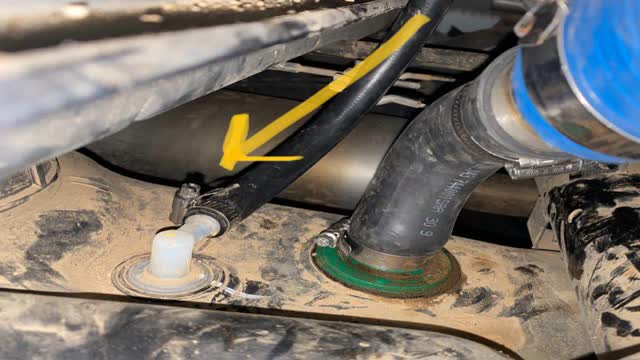

<p>Fit to tank and tighten, 8mm</p>

Fit to tank and tighten, 8mm

12

Step 12 of 12

Done
