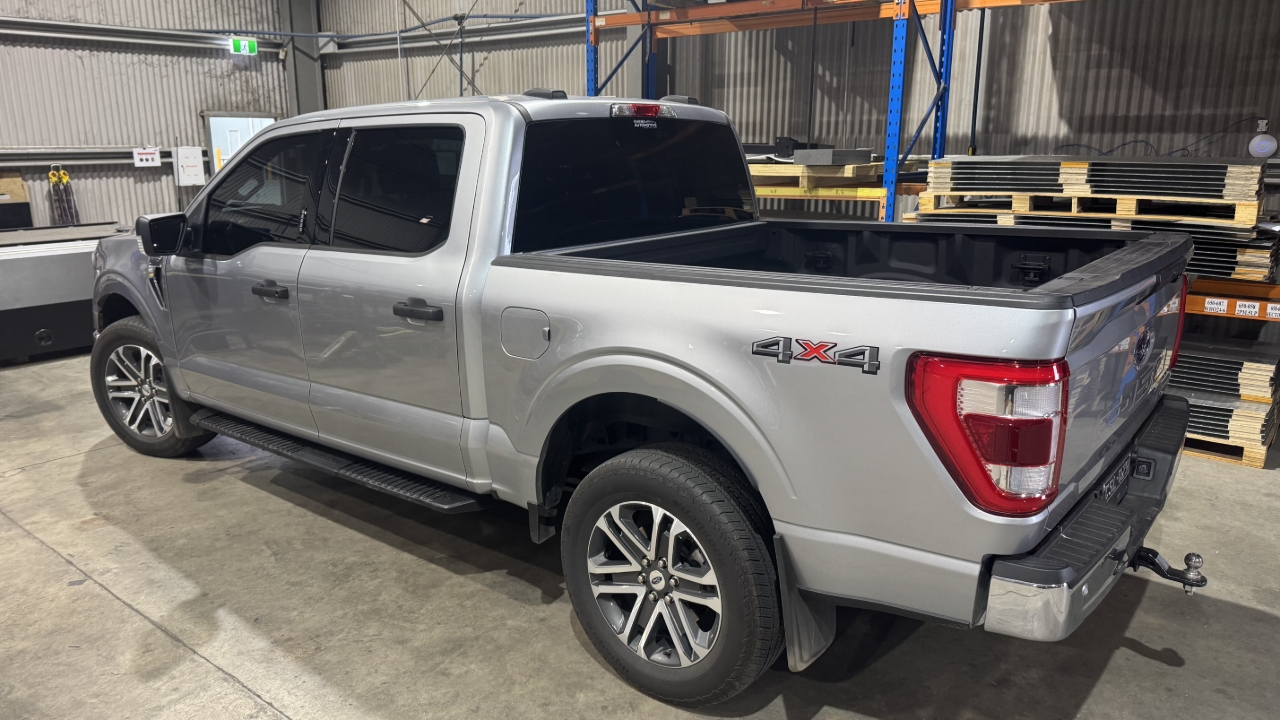

Tub Removal, Ford F-150 (MY22+)
Sometimes the spray in tub liner can make it more difficult. Refer to step #7 if you encounter this issue
Sometimes the spray in tub liner can make it more difficult. Refer to step #7 if you encounter this issue
1
Step 1 of 21
<p><strong>Recommended PPE</strong></p><ul><li>Eye protection</li><li>Hearing protection</li></ul>

Recommended PPE

  • Eye protection
  • Hearing protection
2
Step 2 of 21
<p><strong>Tools Required</strong></p><ul><li>Sockets (mm): 10,13</li><li>Torx: T27, T50</li><li>Wire Cutters</li><li>Forklift with Tyne Extensions</li><li>4 x Lifting Slings</li></ul>

Tools Required

  • Sockets (mm): 10,13
  • Torx: T27, T50
  • Wire Cutters
  • Forklift with Tyne Extensions
  • 4 x Lifting Slings
3
Step 3 of 21

Open tailgate.

Note: Vehicle needs to be unlocked for this.

4
Step 4 of 21

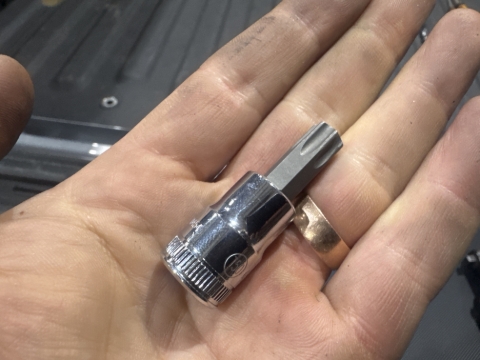

<p>Get T50 Torx bit</p>

Get T50 Torx bit

5
Step 5 of 21

Because of the spray in tub liner, it is best to tap the torque bit into place with a hammer so it fits firmly.

If the Rubber is too thick and it doesn’t tap into place nicely, please skip to step #7

6
Step 6 of 21

Remove the (Qty 6) bolts with a power tool

7
Step 7 of 21

Use a fine flathead screwdriver to pick the plastic tub liner out of the bolt head


Note: On the vehicle this instruction was made on this was required on two of the six bolt heads

8
Step 8 of 21

Keep all Fasteners in a box

9
Step 9 of 21

Remove tailgate plastic cover panel:

  • T27 Torx
10
Step 10 of 21

Fold out the tailgate step

11
Step 11 of 21

Open the fuel filler door

12
Step 12 of 21

From underside of Fuel Neck

10mm. Remove bolt which fixes the fuel filler pipe to the underside of Tub

13
Step 13 of 21

Unclip Diff Breather

Identify the diff breather hose. It is located on the passenger side, behind wheel. Cut the (Qty 3) zip ties which fix it to the underside of the tub.

14
Step 14 of 21

Disconnect this main plug which has the white retaining clasp

Note: This harness runs to the tail lights and bling spot monitor system

15
Step 15 of 21

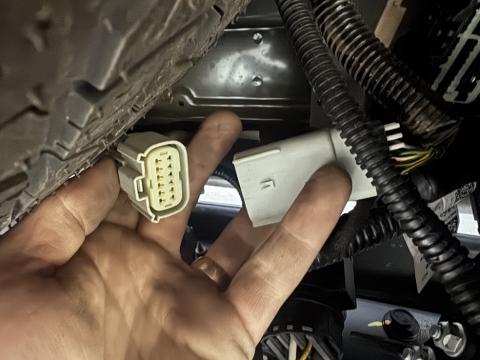

<p>Disconnect this plug </p><ul><li>It goes to the tailgate</li></ul>

Disconnect this plug

  • It goes to the tailgate
16
Step 16 of 21

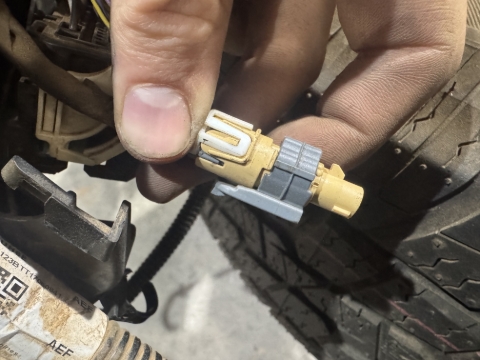

<p>Disconnect the camera plug</p>

Disconnect the camera plug

17
Step 17 of 21

Disconnect this earth cable

  • 10mm,  which is located on the driver side rear, inside of chassis rail
18
Step 18 of 21

Connect lifting slings

19
Step 19 of 21

Lift off

  • When partially up doublecheck that no wires are still connected.
  • No need to remove rear bumper - Tub can lift directly vertical without hitting it.
20
Step 20 of 21

Lower Tub onto a trolley or stack of pallets. If a customer is keeping their Tub, they have been asked to bring qty 5 pallets.

21
Step 21 of 21

It should now look like this
