Fuel Filler, "V3 Headboard" NP300 Navara, Dual Cab
1
Step 1 of 7It is easiest to do this before fitting the Tray to vehicle, as it gives the best access.
2
Step 2 of 7

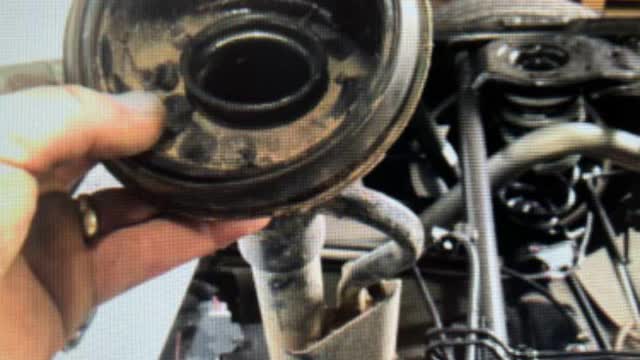

Remove the Fuel Filler from vehicle - it needs to be modified.
3
Step 3 of 7Undo hose from tank.
Flip fuel hose "End for End".
The new position will be in front (toward front of vehicle) of the small hoses.
4
Step 4 of 7

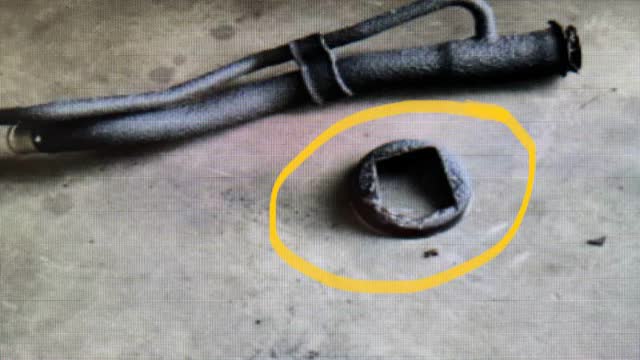

Cut off all Mounts and Shroud from filler neck
5
Step 5 of 7

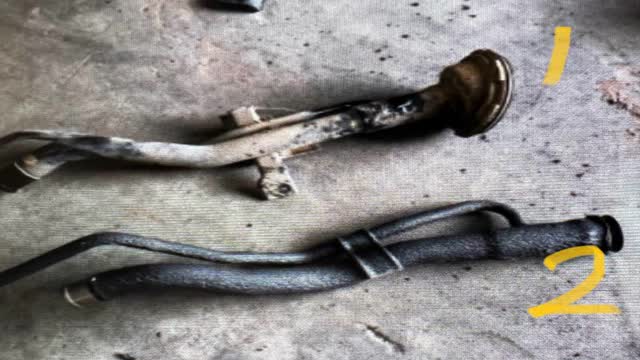

#1, shows the Original neck.
#2, Shows the neck after trimming Shroud and extra mount brackets
6
Step 6 of 7

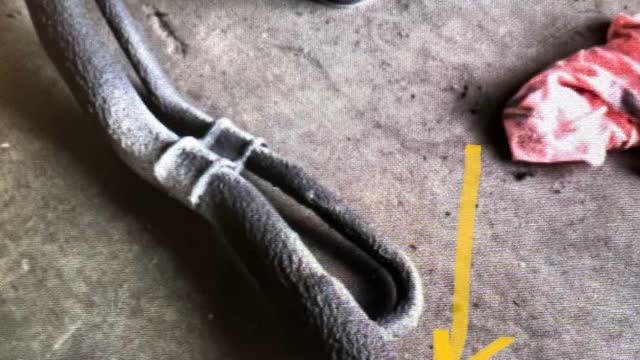

Paint all cuts with rust Guard
7
Step 7 of 7Refit filler to vehicle
