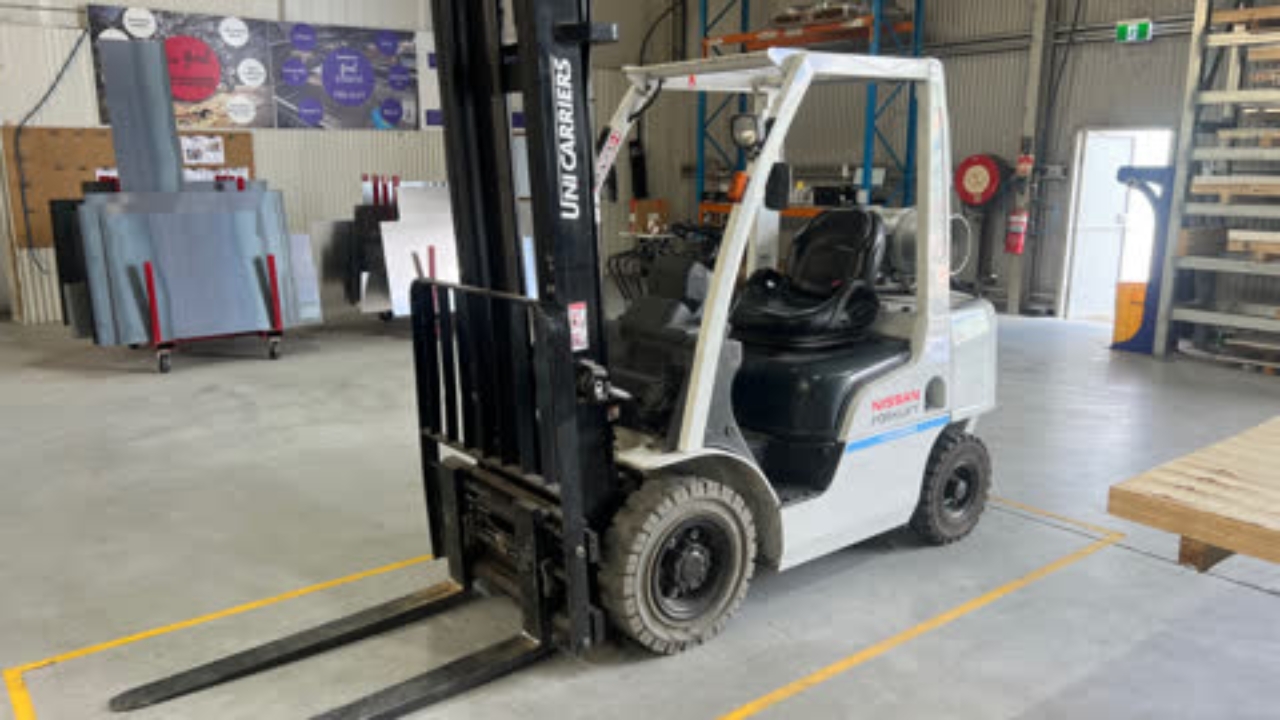

Forklift Weekly Check - Nissan 2500
Nissan 2500 Model: P1F2A25DU, S/No: 400688
Nissan 2500 Model: P1F2A25DU, S/No: 400688
1
Step 1 of 16

Check guards

Do a walk around of the forklift to make sure all guards are in place and no damage.

2
Step 2 of 16

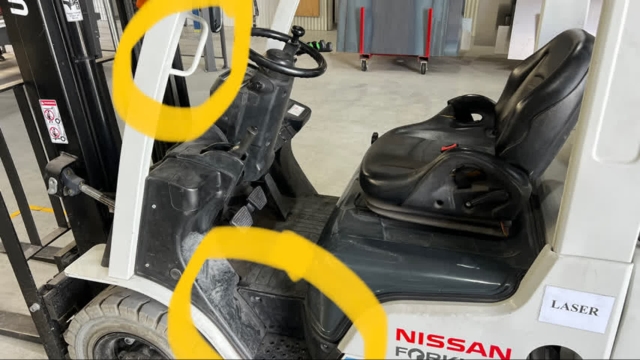

<p>Access</p> <p>Steps and grab handles should be in good condition and clean</p>

Access

Steps and grab handles should be in good condition and clean

3
Step 3 of 16

Check Tyres/Wheels No damage, excessive dirt or wear, rust, cracks, splits or seperation from rim. All wheel nuts in place

4
Step 4 of 16

Lean backrest forward, then slide seat forward

5
Step 5 of 16

Lift cover (with finger pull) to access engine bay

6
Step 6 of 16

Fluids (Engine Oil) Pull out dipstick and wipe clean

7
Step 7 of 16

Redip then check it is is the normal range

8
Step 8 of 16

Hydraulic fluid Remove cap and wipe with rag

9
Step 9 of 16

Hydraulic Fluid Redip then check fluid is in correct range

10
Step 10 of 16

Lift off front cover

11
Step 11 of 16

Redip dipstick Check fluid is within correct range

12
Step 12 of 16

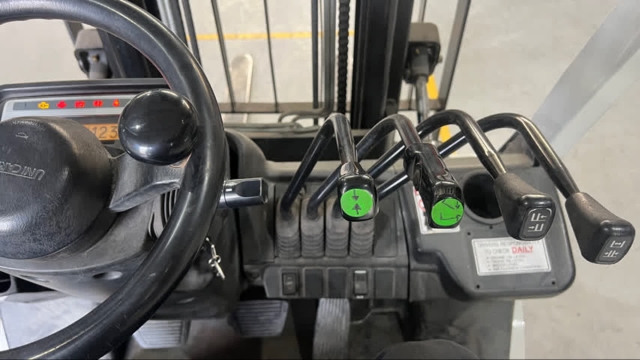

<p>Check controls are clearly marked</p>

Check controls are clearly marked

13
Step 13 of 16

Seatbelt works as intended It should automatically retract

14
Step 14 of 16

Controls (Post-Start) Check all are working. Hydraulic lift, Tilt, Sideshift, Fork Width

15
Step 15 of 16

Horn

Check it is clearly audible BEEP!

16
Step 16 of 16

Lights & Beacon

Should be visible and operational
