Fit Spare Tyre Under Tray, LandCruiser
1
Step 1 of 5

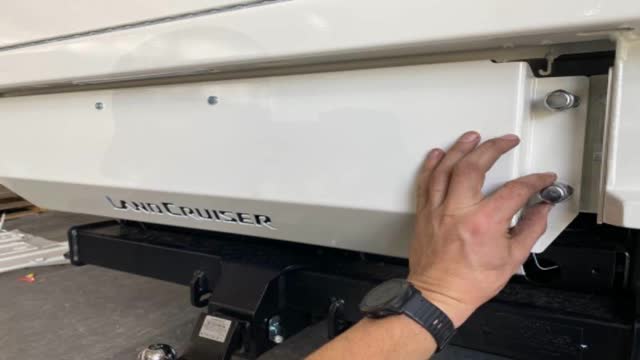

<p>Undo door wheelnuts</p>

Undo door wheelnuts

2
Step 2 of 5

Fit supplied bracket

There are multiple holes under tray to suit different size tyres. Trial and fit

3
Step 3 of 5

Tyre is not sitting on any wiring.

Front of tyre is sitting on fuel tank, back or tyre supported by door

4
Step 4 of 5

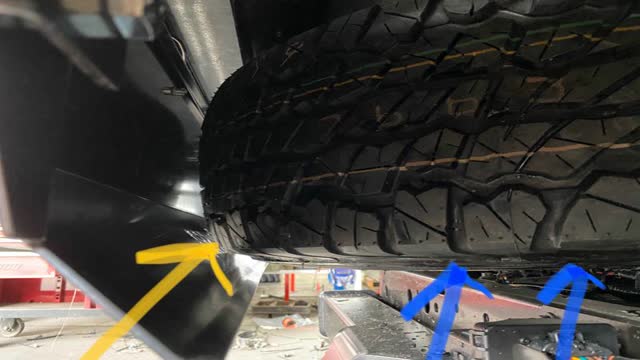

<p>Door supports the back of tyre (yellow arrow)</p> <p>Blue arrow shows, that when correctly fitted, does not sit on any vehicle wiring</p>

Door supports the back of tyre (yellow arrow)

Blue arrow shows, that when correctly fitted, does not sit on any vehicle wiring

5
Step 5 of 5

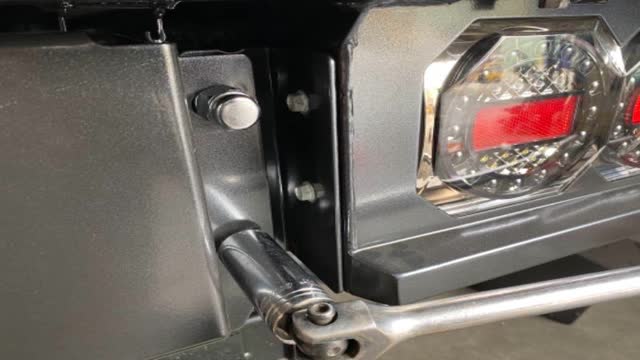

<p>Tighten door nuts, 22mm</p> <p>(This is same size as standard LandCruiser wheel nut)</p>

Tighten door nuts, 22mm

(This is same size as standard LandCruiser wheel nut)
