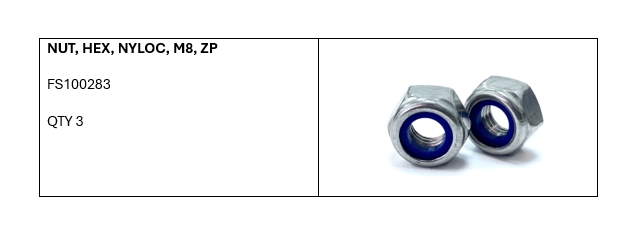

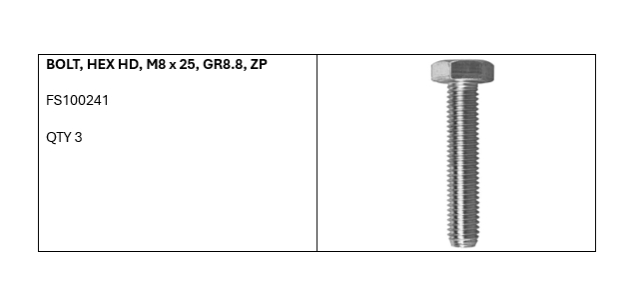

Components List

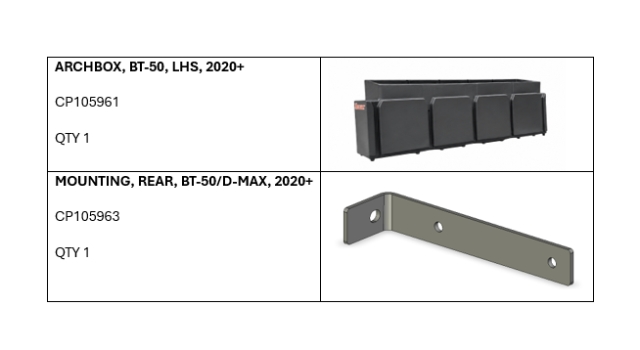

Components List

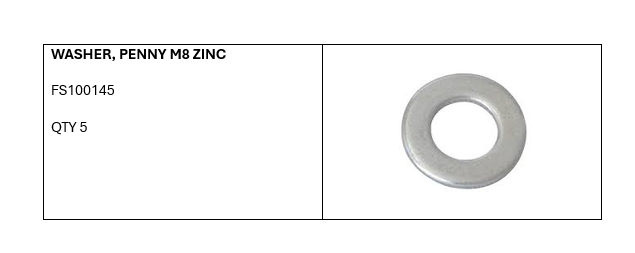

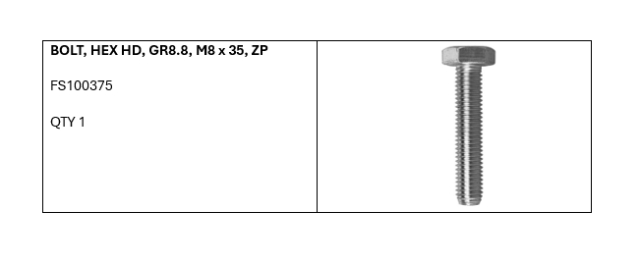

Components List
Components List

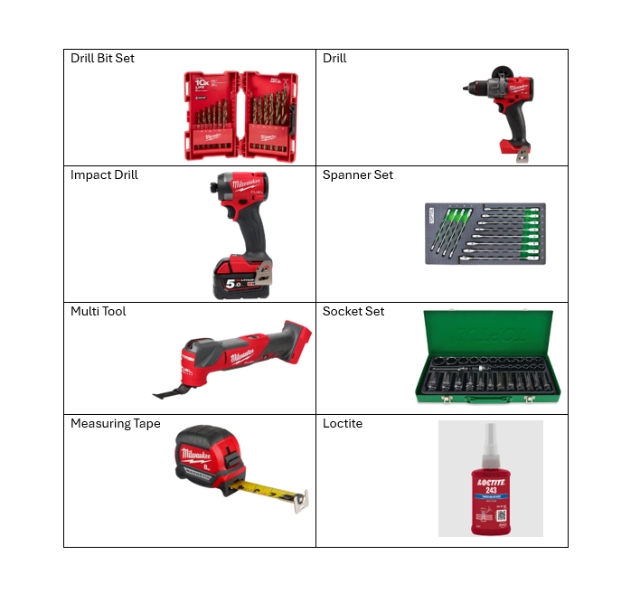

Tools List

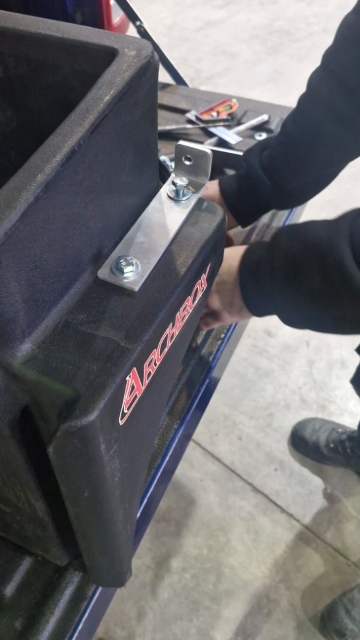

Fit the bracket to the arch box where you have drilled the marked holes with an 8.5 drill bit.
Fit using M8 x 25 hex head and flat head washers.

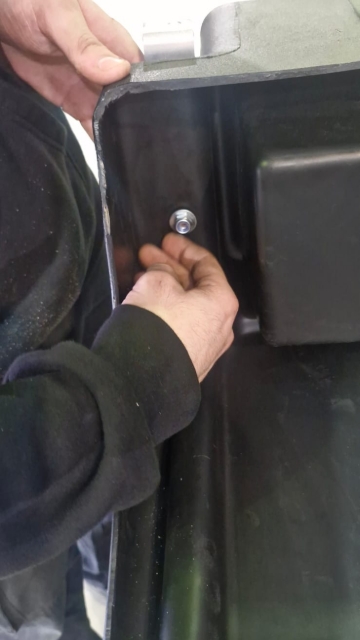

Fit M8 nyloc nuts and M8 flathead washers to the bolts.
Tighten the bracket to the archbox.

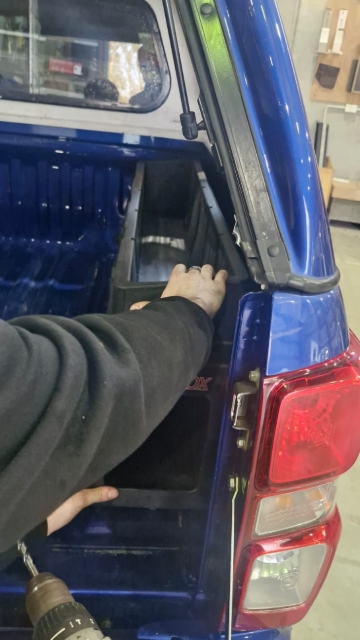

Fit the archbox into the wellside.
Using an extended drill socket to tighten the bracket loosely to the wellside.
Tighten the bracket to the wellside.

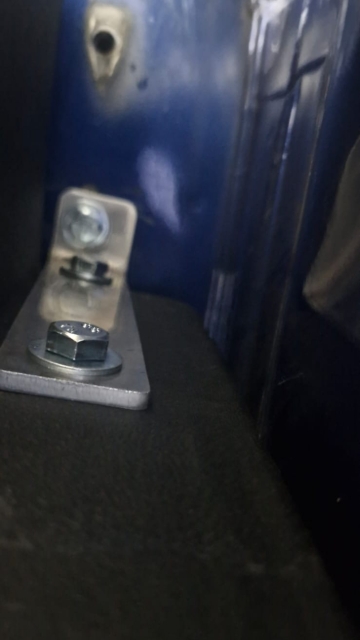

Bracket fitted to wellside.

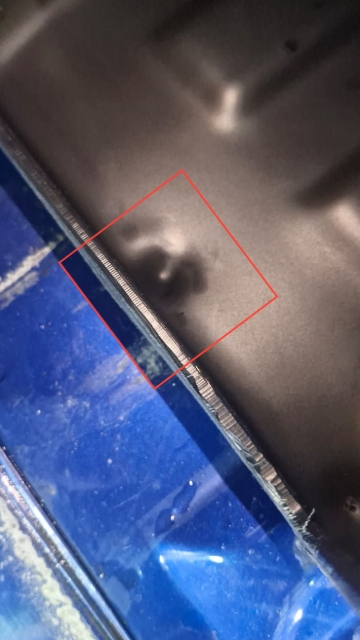

Where this dimple is shown a hole will need to be drilled through to tighten the archbox to the wellside.
Drill through the wellside using an 8.5mm drill bit.
Ensure there is nothing to hit underneath the wellside.
Insert an M8 x 35 hex head bolt with an M8 flat head. Add daboff around the bolt to seal it.

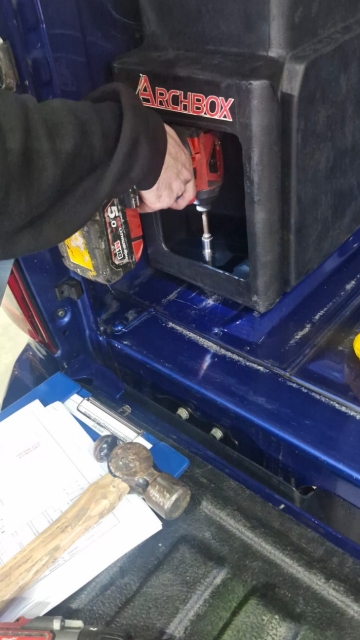

Tighten the bolt to an M8 nyloc nut with an M8 flat head washer.
