C - Canopy Latch Assembly
1
Step 1 of 7Unload parts from the PC trolley and inspect for PC defects. Inspecting for light and heavy PC
Report issues prior to reworking
2
Step 2 of 7

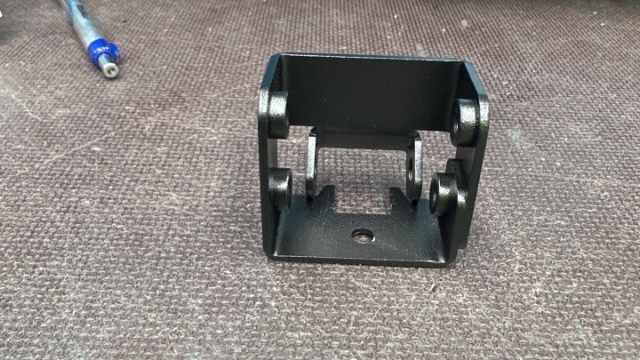

Have the latch housing facing towards you on the table.
3
Step 3 of 7Place the spring in so it will close towards you.
4

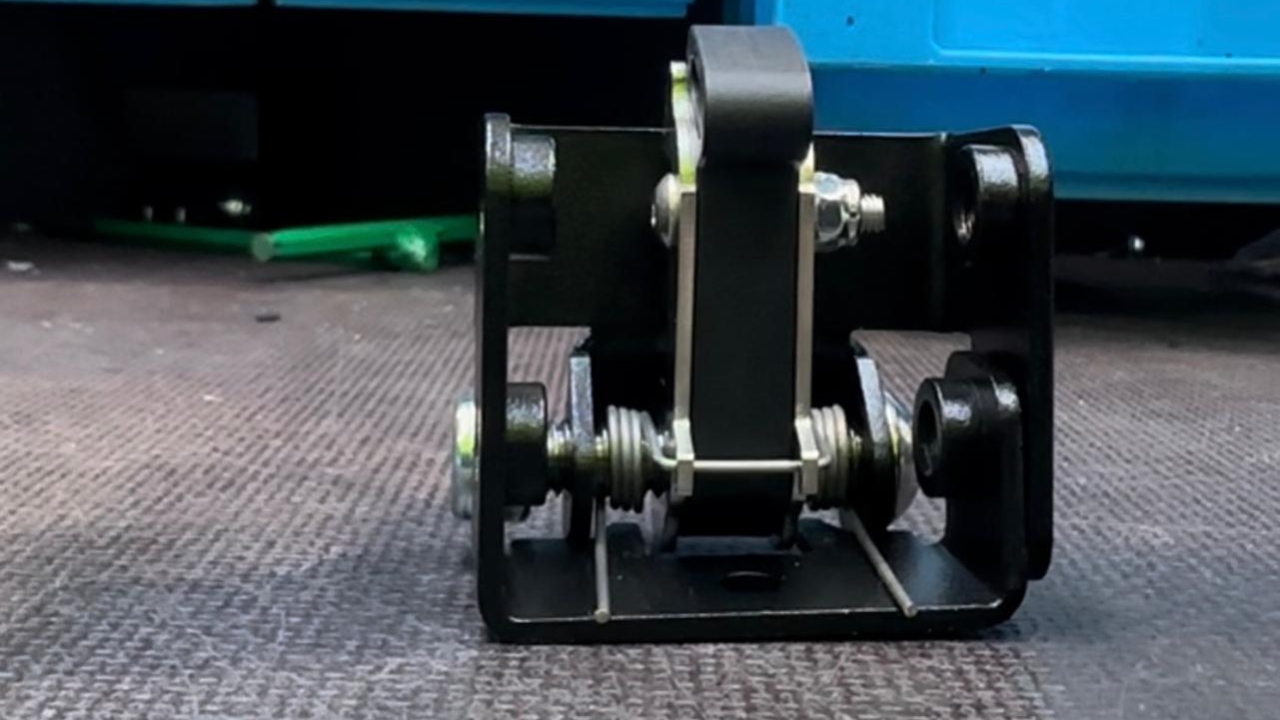

Step 4 of 7Using the assembled latch mechanism push the spring down and in until you see the holes align at the back of the latch.
5
Step 5 of 7Drive the bolt through the holes.
6
Step 6 of 7Tighten and nut on to the end of the bolt until flush.
7
Step 7 of 7Test the latch
