Cluster Assembly

Knowby

Cluster Assembly

1

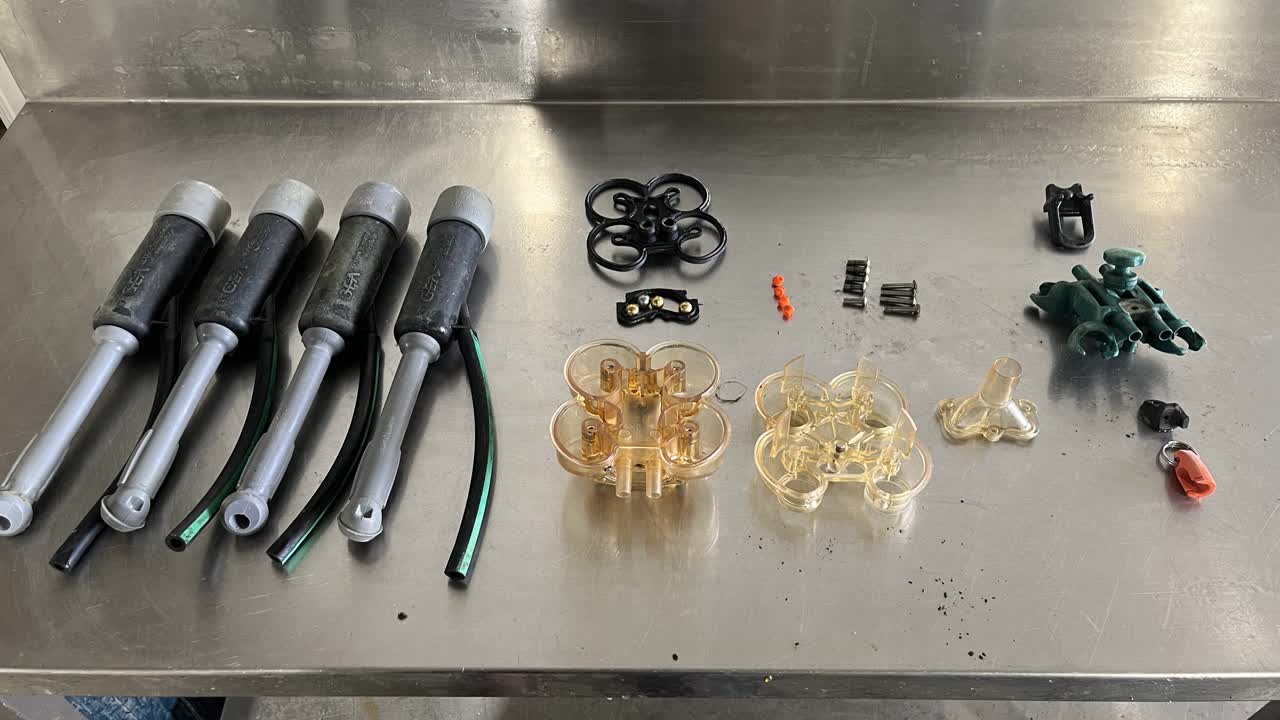

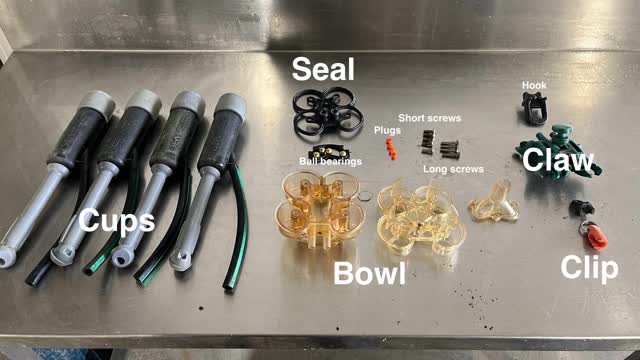

Step 1 of 13

2

Step 2 of 13

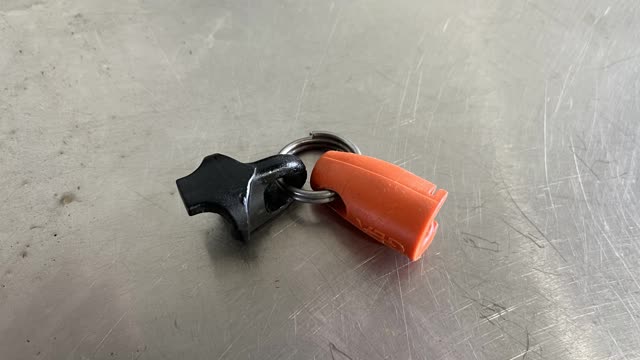

<p>Attach ACR clip to small hook.</p>

Attach ACR clip to small hook.

3

Step 3 of 13

Screw small hooks onto claw.

4

Step 4 of 13

Assemble the cups by inserting the liner into the shell. Align the arrows on the sides of the liner and shell and pull the tail of the liner through the rear of the shell.

5

Step 5 of 13

Attach a claw tube to the side. Repeat this for all four shells, liners, and claw tubes.

6

Step 6 of 13

Attach cups to the claw, ensuring claw tubes are not twisted.

7

Step 7 of 13

Insert a ball stopper and a ball bearing into each quarter of the bowl lid.

8

Step 8 of 13

Seal holes on the bowl half with the rubber seals, make sure they are seated correctly.

9

Step 9 of 13

Fit bowl seal to bowl cover making sure there are no gaps.

10

Step 10 of 13

Close the two halves of the bowl together and fix with four long screws.

11

Step 11 of 13

Add seal to milk line fitting and screw to bowl with 3 short screws.

12

Step 12 of 13

Align bowl to claw and screw tightly.

13

Step 13 of 13

Connect cluster to pulsation line then milk line and clip to acr.
