xTub Removal, MQ-MR Mitsubiushi Triton

Knowby

xTub Removal, MQ-MR Mitsubiushi Triton

1

Step 1 of 18

3 people must be present during the removal - 1 on the forklift and 2 on the ground The rubber protection pad must be used

2

Step 2 of 18

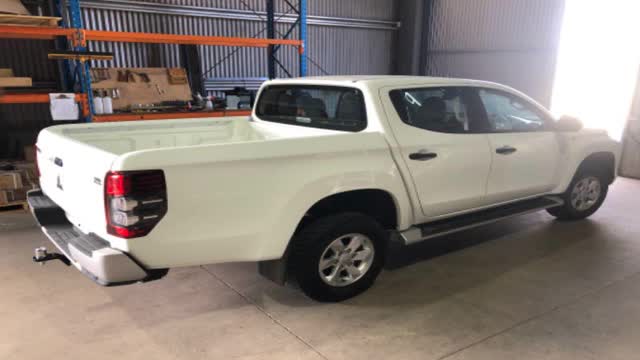

<p>How to remove factory tub. Time: 35-45 mins (depending on model) Tools List: • 19mm deep socket • 10mm socket • Medium Phillips head screwdriver. • Forklift with Tyne extensions. • 4 x Lifting slings. Approx 2m long</p>

How to remove factory tub. Time: 35-45 mins (depending on model) Tools List: • 19mm deep socket • 10mm socket • Medium Phillips head screwdriver. • Forklift with Tyne extensions. • 4 x Lifting slings. Approx 2m long

3

Step 3 of 18

<p>Release fuel door</p>

Release fuel door

4

Step 4 of 18

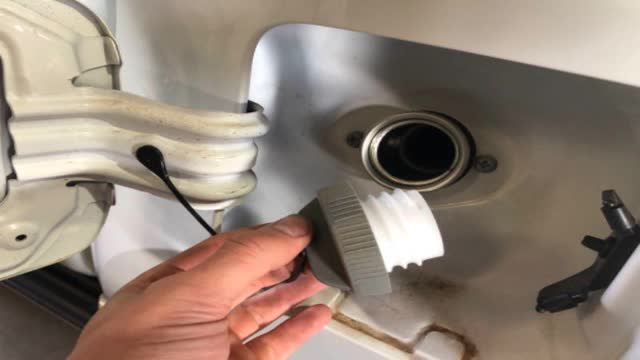

<p>Open fuel door</p>

Open fuel door

5

Step 5 of 18

Remove cap, pull it

6

Step 6 of 18

Phillips head remove bolts around filler

7

Step 7 of 18

Phillips head, inner guard

8

Step 8 of 18

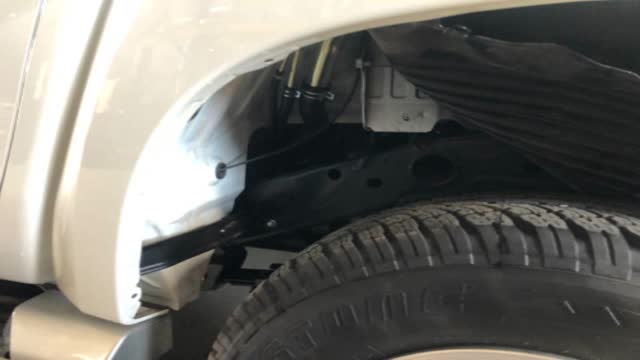

<p>Pull inner guard partially out of way</p>

Pull inner guard partially out of way

9

Step 9 of 18

Phillips head, fuel neck to tub. Can be tight!

10

Step 10 of 18

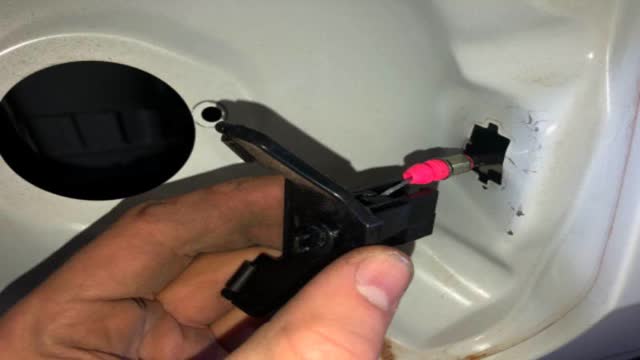

<p>Detach black bracket from tub. Use a flat head screwdriver to pry bracket away from tub</p>

Detach black bracket from tub. Use a flat head screwdriver to pry bracket away from tub

11

Step 11 of 18

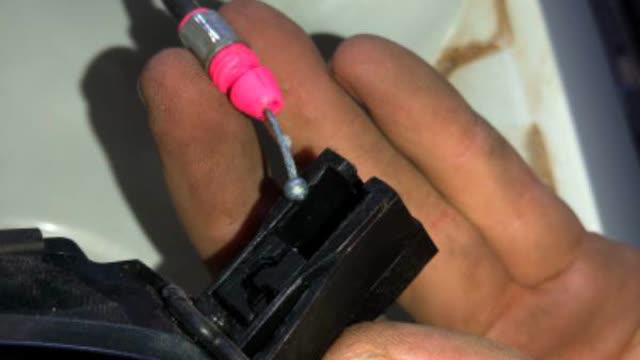

<p>Detach cable from black bracket</p>

Detach cable from black bracket

12

Step 12 of 18

Feed fuel cable forward into chassis- vid

13

Step 13 of 18

Inner wing brace, 14mm.

14

Step 14 of 18

Front mounts. (Qty 2) 17mm socket from inside of tub

15

Step 15 of 18

14mm bumper

16

Step 16 of 18

If Towbar is fitted, 18mm better access to rear mount

17

Step 17 of 18

Remove other bolt 18mm

18

Step 18 of 18

Use 18mm breaker bar
