Fit Rhino Racks to Canopy
1
Step 1 of 9

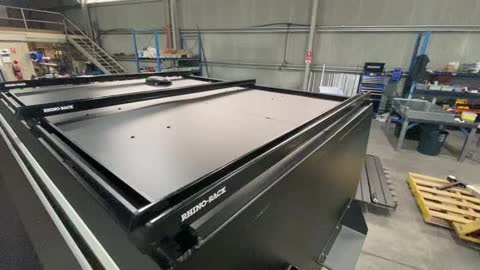

Will look like this when done (Qty of Racks may vary - refer to Work Order)

2
Step 2 of 9

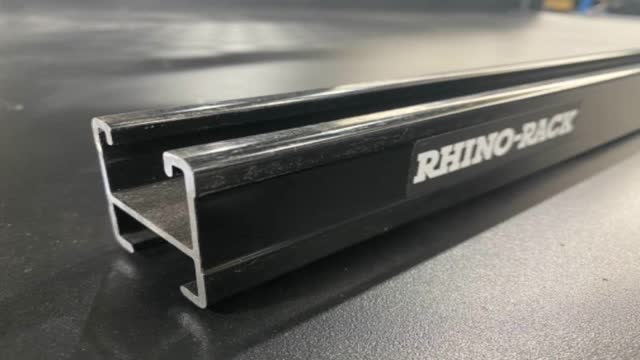

<p>Get Rhino Racks, Drill them to suit the spacings as on top of canopy mounting rails.</p>

Get Rhino Racks, Drill them to suit the spacings as on top of canopy mounting rails.

3
Step 3 of 9

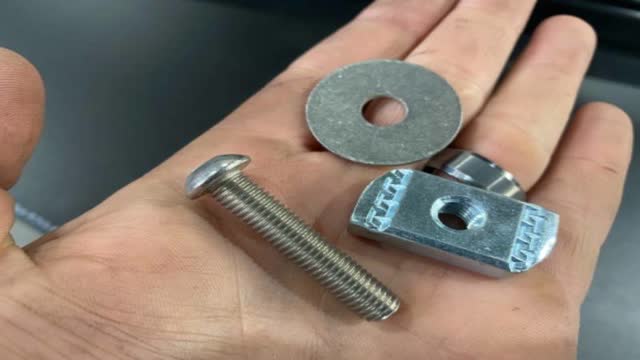

<p>Get Fasteners: M8 Channel Nut Large Stainless Washer M8x40mm Button Head Bolt, Stainless</p>

Get Fasteners: M8 Channel Nut Large Stainless Washer M8x40mm Button Head Bolt, Stainless

4
Step 4 of 9

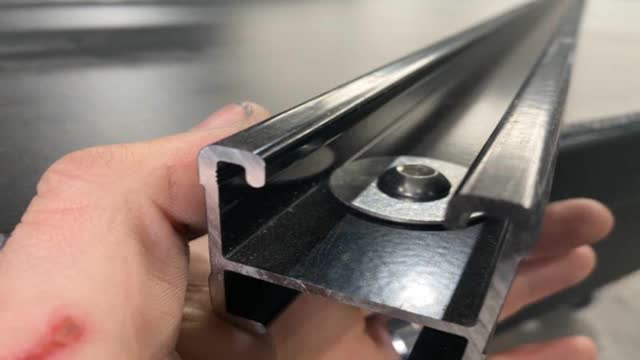

<p>Assemble: Washer on top side</p>

Assemble: Washer on top side

5
Step 5 of 9

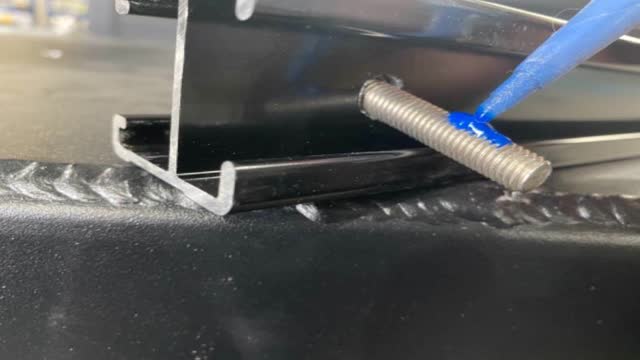

<p>Apply Loctite to thread</p>

Apply Loctite to thread

6
Step 6 of 9

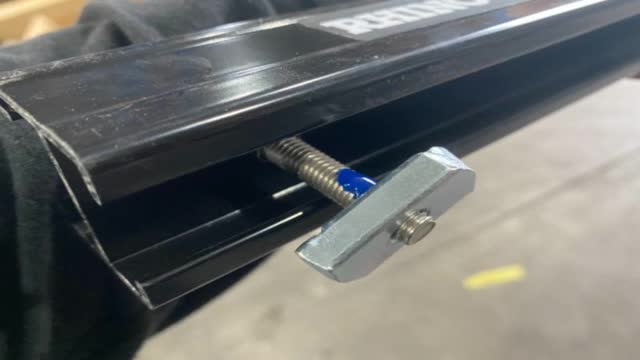

<p>Spin on the Channel Nut</p>

Spin on the Channel Nut

7
Step 7 of 9

Fit t Top of canopy

Tighten, 5mm Hex

8
Step 8 of 9

Fit end cap

9
Step 9 of 9

Done
