What to do if platform stops suddenly
1
Step 1 of 10

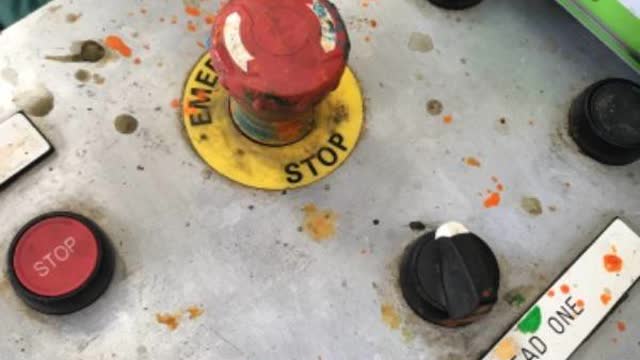

<p>Check control panel to ensure the emergency stop isn’t down. If it’s down you’ll need to twist and pull it up</p>

Check control panel to ensure the emergency stop isn’t down. If it’s down you’ll need to twist and pull it up

2
Step 2 of 10

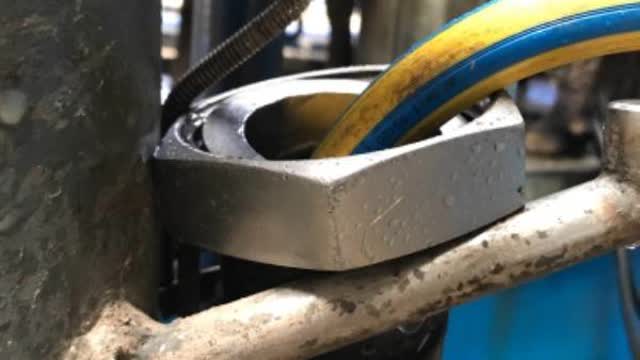

<p>Go to wash hose area and ensure the sensor is pushed in by wash hoses - here the sensor is at the top of the photo.</p>

Go to wash hose area and ensure the sensor is pushed in by wash hoses - here the sensor is at the top of the photo.

3
Step 3 of 10

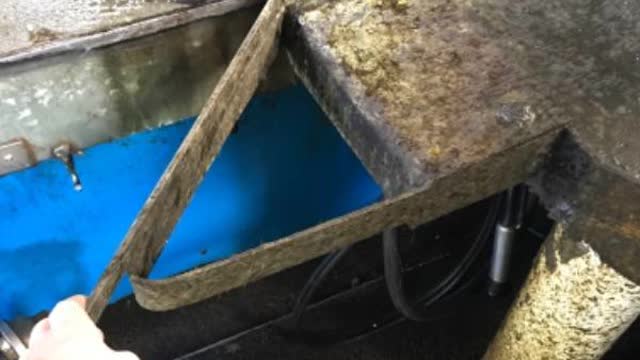

<p>Go to cups off and make sure the Emergency 🚨 stop Batton is fully out and press and hold blue button on control panel</p>

Go to cups off and make sure the Emergency 🚨 stop Batton is fully out and press and hold blue button on control panel

4
Step 4 of 10

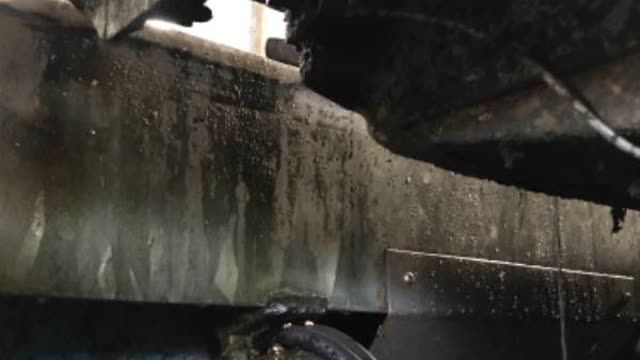

<p>Make sure the sensor under the batton is clean of crap</p>

Make sure the sensor under the batton is clean of crap

5
Step 5 of 10

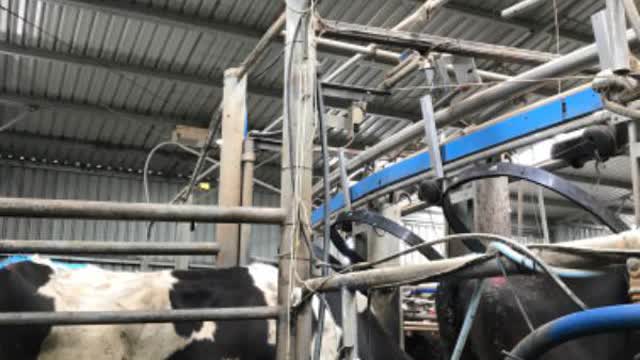

<p>Look up above the bridge</p>

Look up above the bridge

6
Step 6 of 10

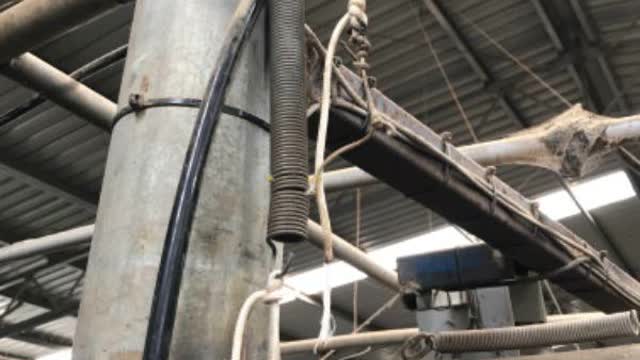

<p>Ensure that this spring is in the correct spot and not caught around the ring at the base of the photo</p>

Ensure that this spring is in the correct spot and not caught around the ring at the base of the photo

7
Step 7 of 10

Go back to control panel and hold the blue button and press start for 5 seconds then pull cord again

8
Step 8 of 10

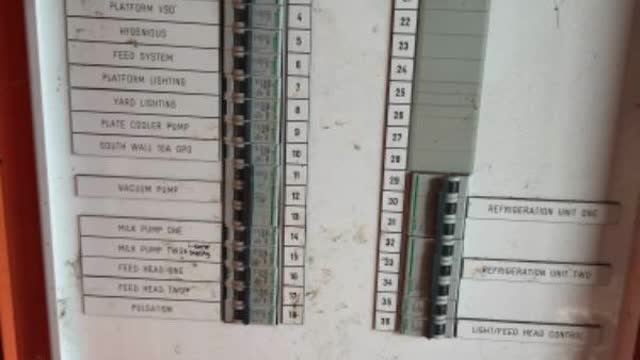

<p>Go to main switch board in vacuum pump room and make sure all switches are on</p>

Go to main switch board in vacuum pump room and make sure all switches are on

9
Step 9 of 10

Go to VSD box in top left of switchboards and make sure the two black switches are in the “on” position

10
Step 10 of 10

If none of above work call manager
