Start Dairy

Knowby

Start Dairy

Start Dairy

Start Dairy

1

Step 1 of 26

Discount wash line

Drain milk filters & remove

2

Step 2 of 26

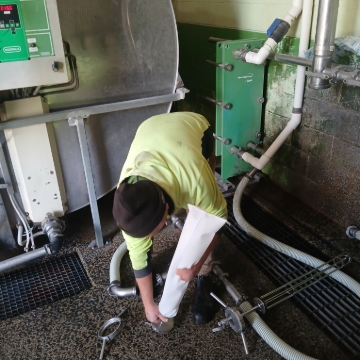

<p>Change both filter socks</p>

Change both filter socks

3

Step 3 of 26

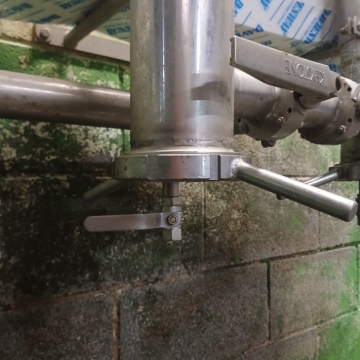

<p>Drain tap must be closed </p>

Drain tap must be closed

4

Step 4 of 26

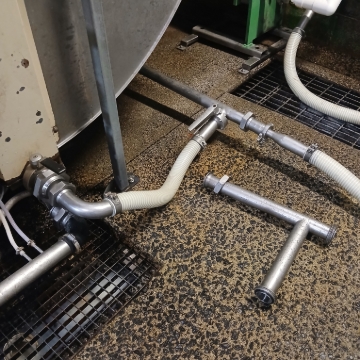

<p>Vat 1</p><p>Remove wash Tee</p><p>Connect hose to vat </p><p>Open taps </p><p><strong>DON'T OPEN TAPS! </strong></p><p><strong>WITH MILK IN VATS AT THIS STAGE! </strong></p><p><br></p>

Vat 1

Remove wash Tee

Connect hose to vat

Open taps

DON'T OPEN TAPS!

WITH MILK IN VATS AT THIS STAGE!

5

Step 5 of 26

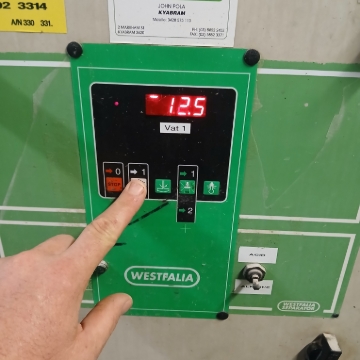

<p>Vat 1</p><p>Hold in <strong>cool</strong> ❄️ <strong>button</strong> afew seconds </p><p>The vat will time down 20 minutes before starting.  </p>

Vat 1

Hold in cool ❄️ button afew seconds

The vat will time down 20 minutes before starting.

6

Step 6 of 26

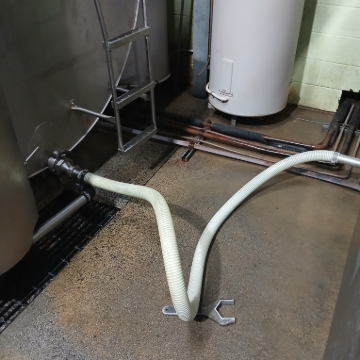

<p>Vat 2 </p><p>Connect milk line</p><p><b>OK!  TO OPEN TAPS ON VATS! </b></p><p><b>WITH MILK IN VAT</b></p>

Vat 2

Connect milk line

OK! TO OPEN TAPS ON VATS!

WITH MILK IN VAT

7

Step 7 of 26

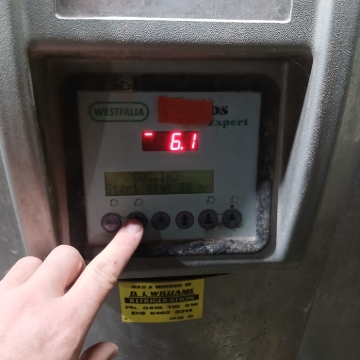

<p>Vat 2</p><p>Hold in <strong>cool</strong> ❄️ <strong>button</strong> </p><p>Vat will time down 20 minutes before starting </p>

Vat 2

Hold in cool ❄️ button

Vat will time down 20 minutes before starting

8

Step 8 of 26

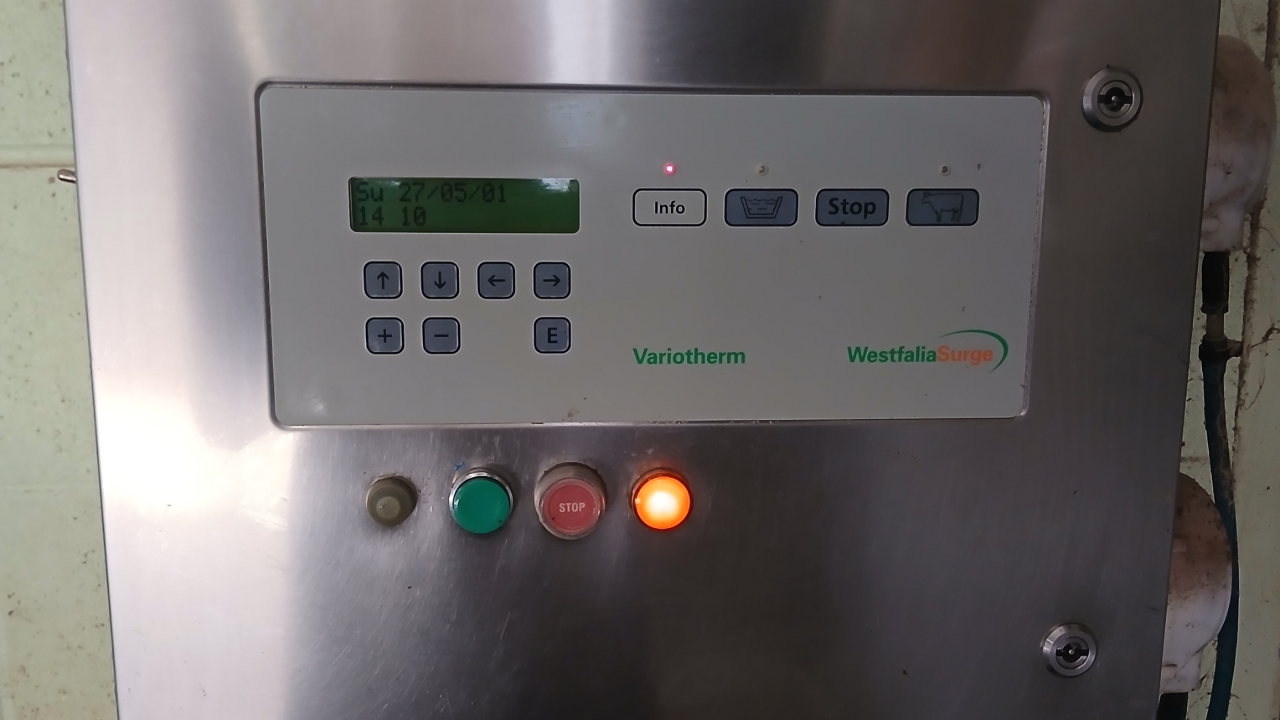

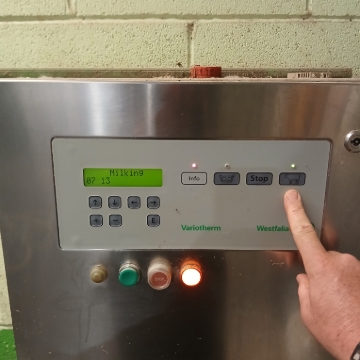

<p>Start Dairy <strong>press cow</strong> 🐄 </p><p>Display will change to milking </p>

Start Dairy press cow 🐄

Display will change to milking

9

Step 9 of 26

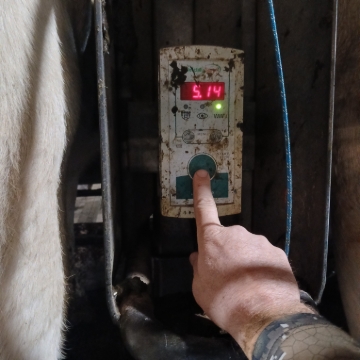

<p>Hold in big <strong>GREEN BUTTON</strong> for afew seconds to lift retention bars & pick up vacuum. </p>

Hold in big GREEN BUTTON for afew seconds to lift retention bars & pick up vacuum.

10

Step 10 of 26

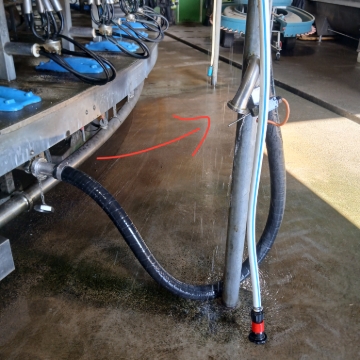

<p>Disconnect wash line</p><p>Connect to holder.</p><p>This will start hydraulic pump </p>

Disconnect wash line

Connect to holder.

This will start hydraulic pump

11

Step 11 of 26

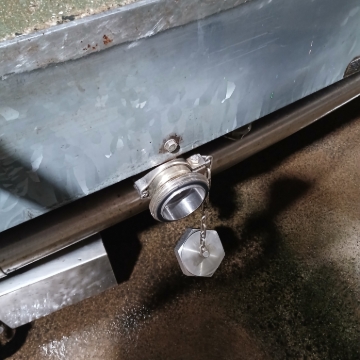

<p>Cap on wash line </p>

Cap on wash line

12

Step 12 of 26

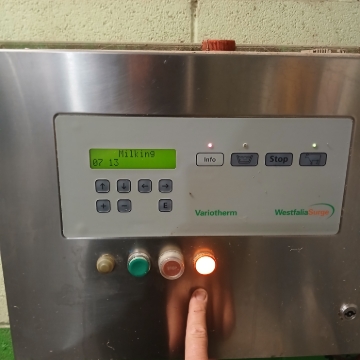

<p>Orange light should be ON </p><p>If not reset with green button.</p><p>This controls hydraulic pump. </p>

Orange light should be ON

If not reset with green button.

This controls hydraulic pump.

13

Step 13 of 26

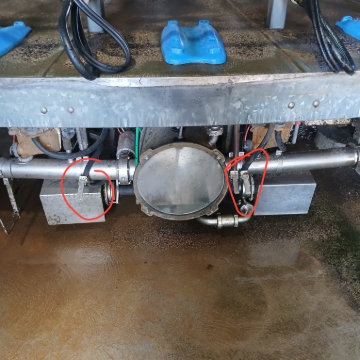

<p>Close 3 snap taps</p>

Close 3 snap taps

14

Step 14 of 26

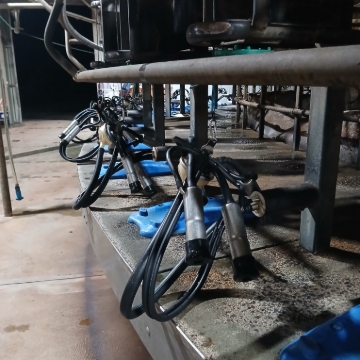

<p>Remove cups from jetties </p><p>Wet dairy down </p>

Remove cups from jetties

Wet dairy down

15

Step 15 of 26

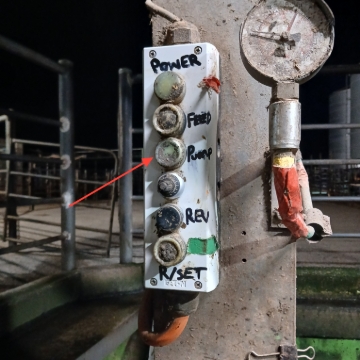

<p>Start water pump if needed.</p><p>Will turn off automatically.  </p><p><br></p>

Start water pump if needed.

Will turn off automatically.

16

Step 16 of 26

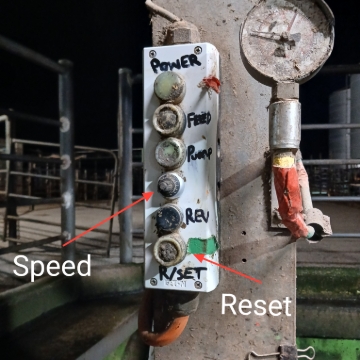

<p>Check platform speed </p><p>Milking speed around 5</p><p>Reset will start platform after green safety cord been pulled </p>

Check platform speed

Milking speed around 5

Reset will start platform after green safety cord been pulled

17

Step 17 of 26

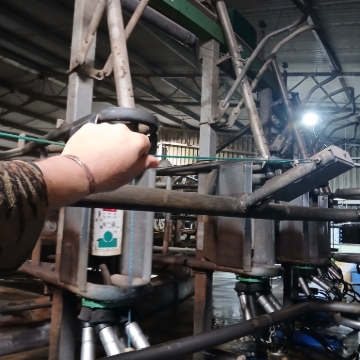

<p>Safety <strong>STOP</strong> pull down </p>

Safety STOP pull down

18

Step 18 of 26

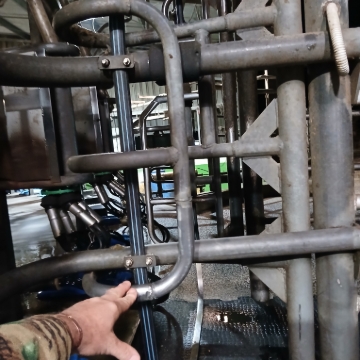

<p>Gate must be pushed away to move platform. </p><p>Pull to you will stop platform </p>

Gate must be pushed away to move platform.

Pull to you will stop platform

19

Step 19 of 26

Test feed heads

1 mineral mix

2 protein

3 crush grain

20

Step 20 of 26

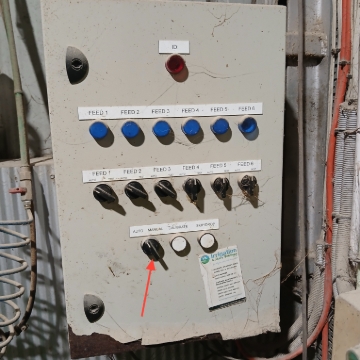

<p>Grain feeder in ON <strong>AUTO</strong> </p>

Grain feeder in ON AUTO

21

Step 21 of 26

Be careful of cow pushing on dairy opening gate

22

Step 22 of 26

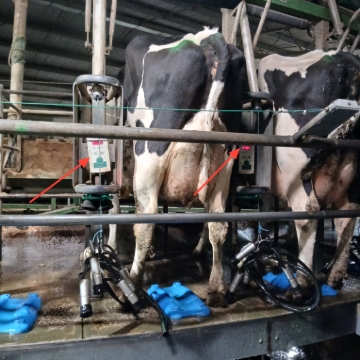

<p>Check cows ID in on screen </p><p>Cows are getting <strong>feed grain</strong> </p>

Check cows ID in on screen

Cows are getting feed grain

23

Step 23 of 26

Check teat sprayer is working.

Arm moving in and out.

Teat spray coming out.

24

Step 24 of 26

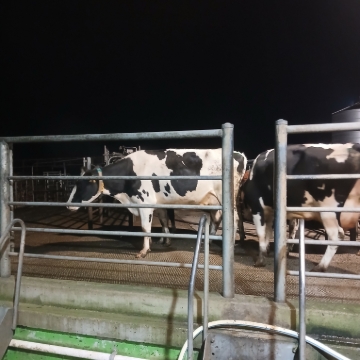

<p>Know we're the cows are going !</p>

Know we're the cows are going !

25

Step 25 of 26

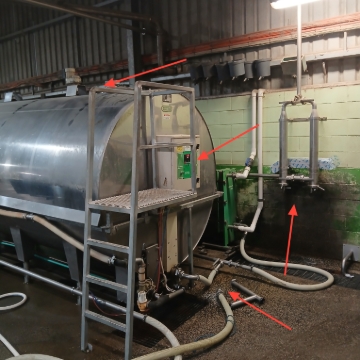

<p><strong>Check</strong> <strong>list</strong><strong></strong></p><p>Milk going in vat</p><p>No milk leaks </p><p>Vats ON & cooling </p><p>Agitators working</p><p>Cows getting grain </p><p>Cows going to right paddock </p><p><br></p>

Check list

Milk going in vat

No milk leaks

Vats ON & cooling

Agitators working

Cows getting grain

Cows going to right paddock

26

Step 26 of 26

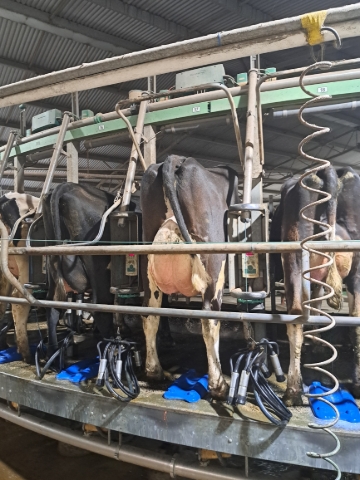

<p>All set for milking! </p>

All set for milking!
