Knowby
Fuel Filler, "V3 Headboard", "RG" DMax-BT50, Extra Cab
1
Step 1 of 11

Suits 2020+ DMax and BT50

2
Step 2 of 11

Looks like this when done

3
Step 3 of 11

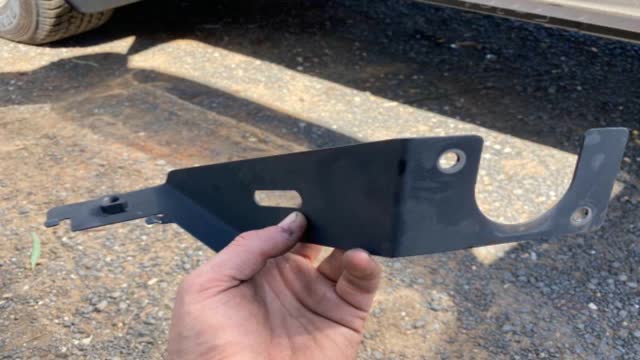

<p>Remove original and discard</p>

Remove original and discard

4
Step 4 of 11

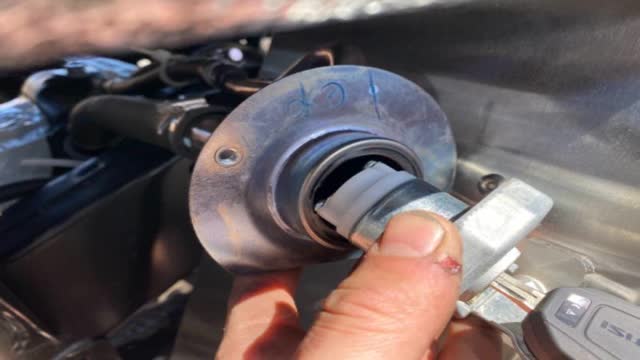

<p>Remove cap</p>

Remove cap

5
Step 5 of 11

Identify supplied bracket  Marked with 101-278

6
Step 6 of 11

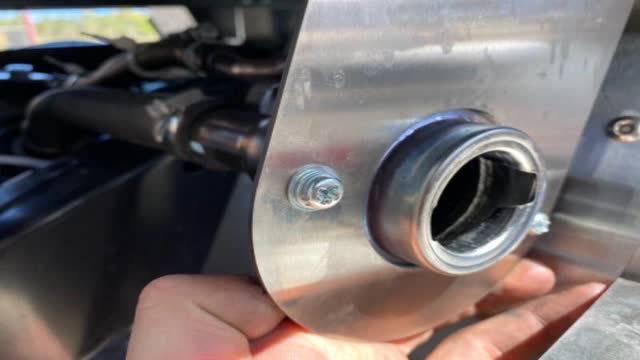

<p>Reuse original screws</p>

Reuse original screws

7
Step 7 of 11

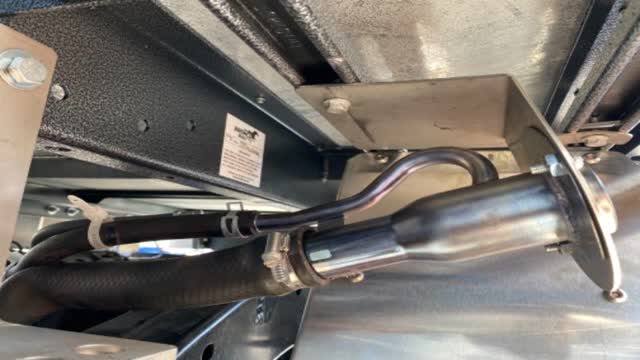

<p>Fit it</p>

Fit it

8
Step 8 of 11

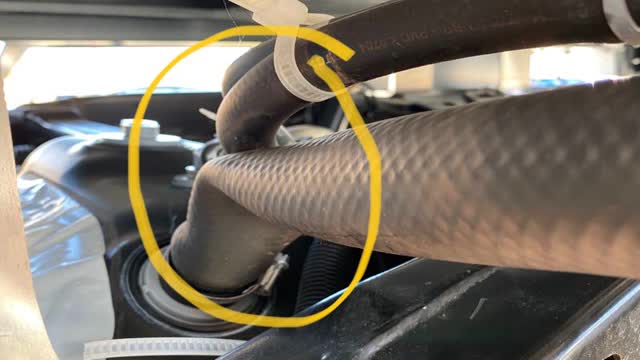

<p>Hose will be kinked</p>

Hose will be kinked

9
Step 9 of 11

Loosen clamps, 7mm socket

Rotate hose so it is not kinked

10
Step 10 of 11

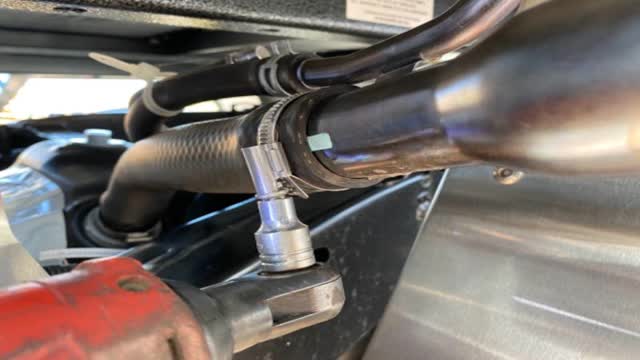

<p>Retighten clamps</p>

Retighten clamps

11
Step 11 of 11

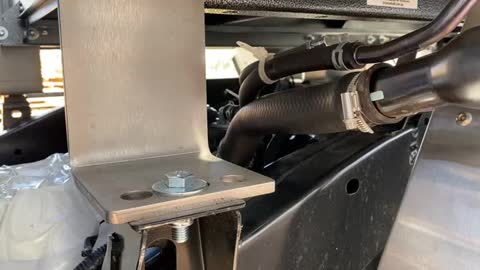

Should look like this
