How to remove a Load-Lid Handle and Locking Plate

Step 1 of 5

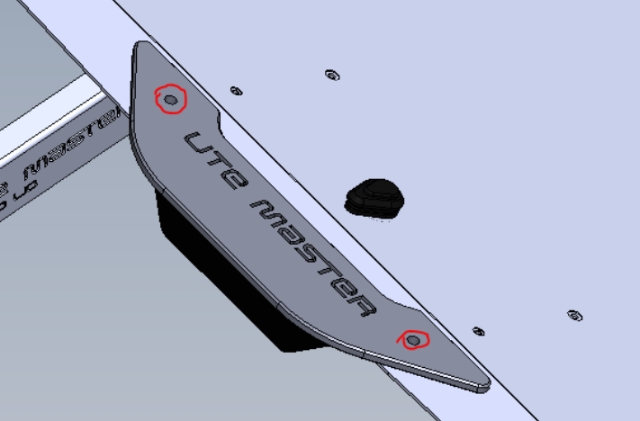

<p>Remove the Bolts through the handle using an allen key on the top of the lid and some vice grips on the nutserts under the lid (to prevent these from spinning)</p>

Remove the Bolts through the handle using an allen key on the top of the lid and some vice grips on the nutserts under the lid (to prevent these from spinning)

Step 2 of 5

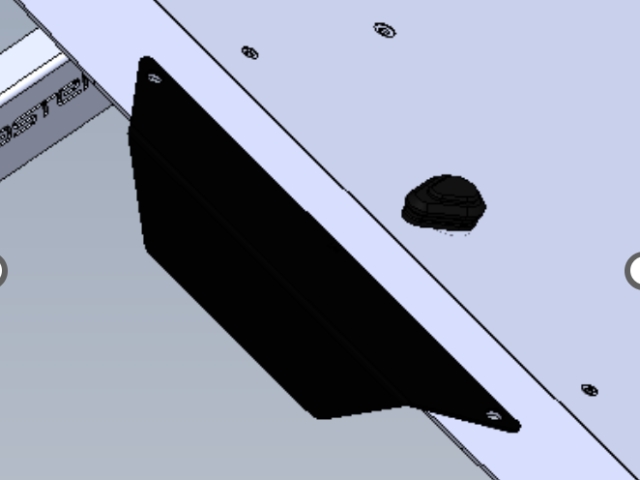

Pull the handle and the locking plate off the lid. Note, these will be installed using structural bonding glue so will need a firm pull.

Step 3 of 5

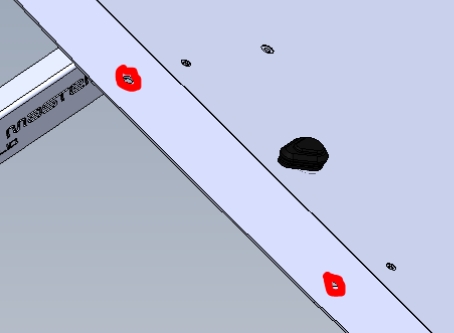

To re-install the handle (with or without the locking plate installed), Apply sealer around the bolt holes

Step 4 of 5

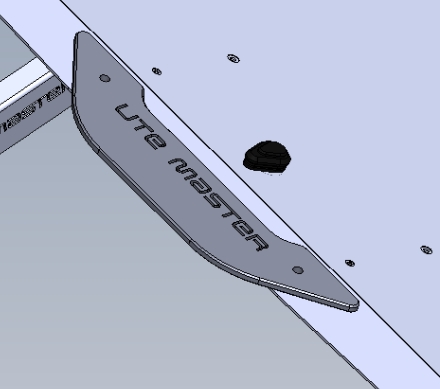

Place rivnuts up through the lid, and place the handle down onto the rivnuts.

Step 5 of 5

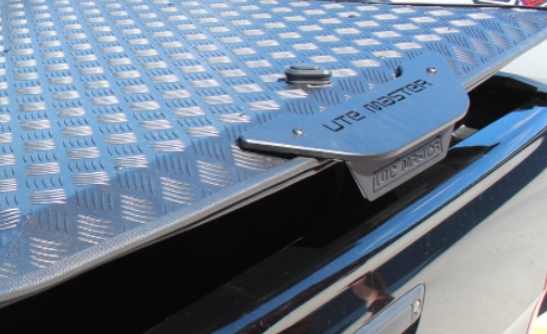

Tighten the bolts taking care for the bolts not to spin on the handle damaging the Powder Coating.

Use vice grips on the rivnuts to stop them from spinning if required.
