250 ML Maintenance Changeover Involvo

On the involvo, maintenance is required to remove change parts

Step 1 of 5

When changing over the involvo to 250ml, maintenance are required to remove certain change parts.

17 A & 17 B

A & B are on Opposite sides

Second pressing station.

Maintenance is required to remove quick release brackets, by undoing 4 x bolts using an allen key

Step 2 of 5

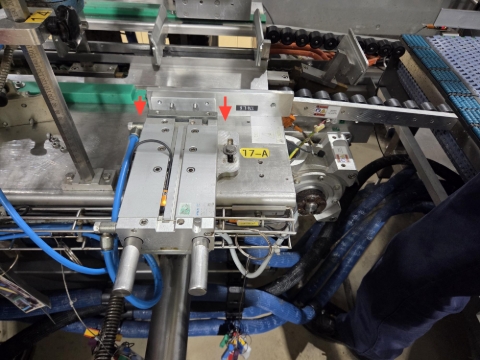

Change parts are located at the change part trolley

(Ask Operator for change parts if needed)

Using an allen key screw 4 x bolts into station

17 A & 17 B

A & B are on Opposite sides

Second pressing station.

Step 3 of 5

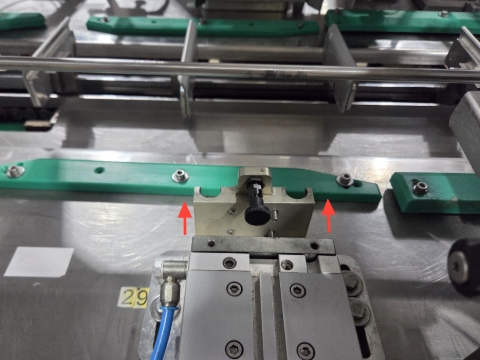

16 & 29

Are on Opposite sides

First pressing station.

Maintenance is required to remove quick release brackets, by undoing 4 x bolts using an allen key

Step 4 of 5

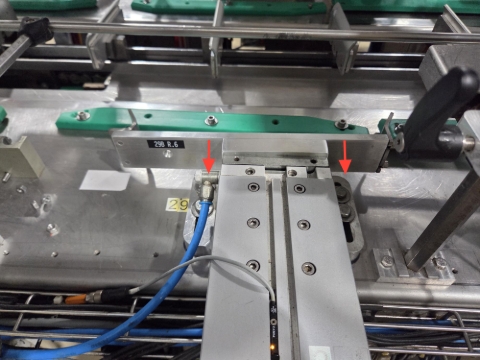

Change parts are located at the change part trolley

(Ask Operator for change parts if needed)

Using an allen key screw 4 x bolts into station

16 & 29

Are on Opposite sides

First pressing station.

Step 5 of 5

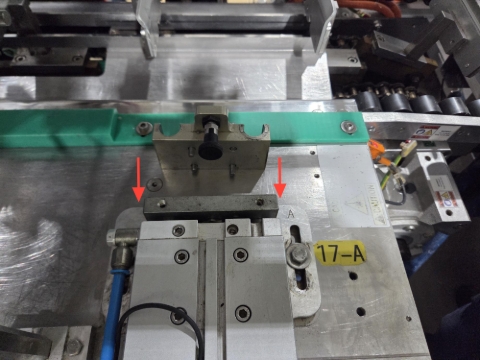

On completion of 250Ml run

17 A & 17B Second Pressing Station

16 & 29 First Pressing Station

Maintenance is required to add the quick release brackets back in using the allen key
