Getting Started with Osmo Pocket 3
Learn the essential steps to set up and use your Osmo Pocket 3 for the first time.
Learn the essential steps to set up and use your Osmo Pocket 3 for the first time.
1
Unbox
- Choose Your Package: Osmo Pocket 3 comes in Standard Combo and Creator Combo.
2
Assemble
- Attach Handle: Insert the handle into the Type-C port on the bottom of the gimbal camera and secure it with the clips on both sides.
3
Power On and Initial Setup
- Turn On: Rotate the screen to power on Osmo Pocket 3.
- Select Language: Choose your preferred language on the screen.
- Download DJI Mimo: Scan the QR code to download the DJI Mimo app. Register and log in to your account.
4
Connect to DJI Mimo
- Enable Connections: Turn on Wi-Fi, Bluetooth, and location services on your phone.
- Connect to Osmo Pocket 3: Open the DJI Mimo app, tap “Device” on the top left, find the Wi-Fi name displayed on your Osmo Pocket 3 screen, and tap to connect.
- Activate Device: Tap to activate your device within the Mimo app. You’ll receive a notification upon successful activation.
5
Start Recording
- Insert SD Card: Ensure an SD card is inserted.
- Record Video: Press the record button to start and stop recording.
- Playback: Swipe right on the screen to access playback. Tap the pause icon and swipe right again to favorite or delete the video.
6
Power Off and Lock Gimbal
- Power Off: Rotate the screen to power off. The gimbal locks automatically to prevent movement.
7

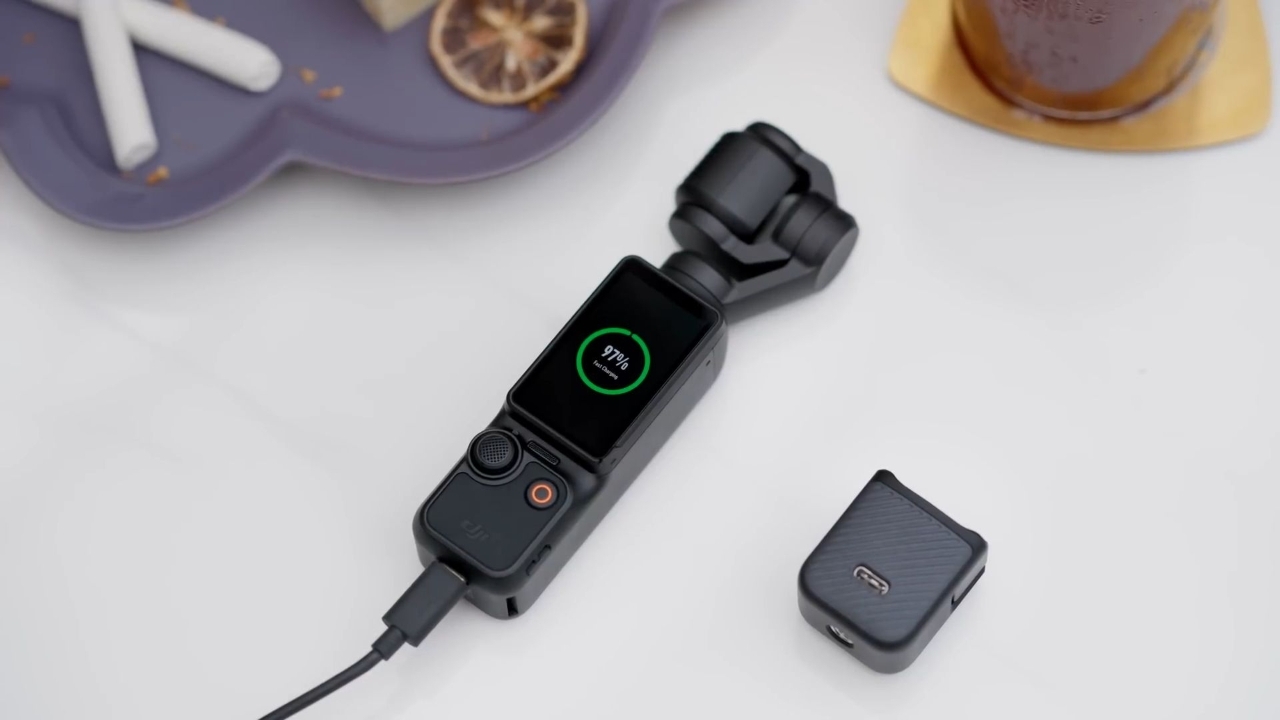

Charge the Device
- Use the Type-C to Type-C PD Cable to charge Osmo Pocket 3 when needed.
8
Additional Features (Creator Combo Only)
- DJI Mic 2 TX: This microphone automatically pairs with the Osmo Pocket 3 for audio recording.
- Wide-Angle Lens: Attach the wide-angle lens to expand the field of view to 108°.
9
Storage
- Place the locked Osmo Pocket 3 with the screen facing inward in the protective case or carrying bag for safe storage.
