Introduction

• The CSeries of articulated trucks includes machines in the 35, 40, and 45-tonne size classes.

• New features are explained in the following steps.

C Series Machine Walk-Around

Conduct a Safety Walk-Around

• Check for loose fittings and leaks.

• Inspect tires for damage.

• Ensure lights are working.

• Check fluid levels.

Prepare for Operation

• Isolate the machine.

• Enter the cab using three points of contact.

• Climb the steps onto the guarded walkway.

C Series In the Cab

Adjust the Operator Seat

• Adjust seat suspension until the white line is in the green indicator.

• Move the seat closer or further using the handle.

• Adjust the seat support for comfort.

Set Up Steering and Mirrors

• Adjust the steering wheel for tilt and reach.

• Lower the armrest.

• Position mirrors for optimal visibility.

• Adjust mirrors manually or with electric controls.

• Activate heated mirrors if available.

Use the CMPD

• Access information and up to three additional cameras.

• View data from the optional CAT production measurement system.

C Series Start-Up Procedure

Prepare for Start-Up

• Ensure gear selection is in neutral.
• Ensure hoist lever is in the hold position.
• Engage the park brake.

Start the Machine

• Hold the brake pedal and start the engine.

• Release the park brake and put the machine in gear.

• Move the hoist lever into the float position.

• Check the area around you is clear and pull away.

C Series Traction Control

Use Automatic Traction Control

The operation of cross axle differential locks is fully automatic and requires no input from the operator.

C Series Retarder Operation

Use Automatic Retarder System

• Choose off, manual (stages one or two), or fully automatic.
• Pre-select the gear before descending.
• Select the retardation stage with the lever.
• Remove foot from the throttle, cover the brake.
• Press throttle to disengage at the bottom.

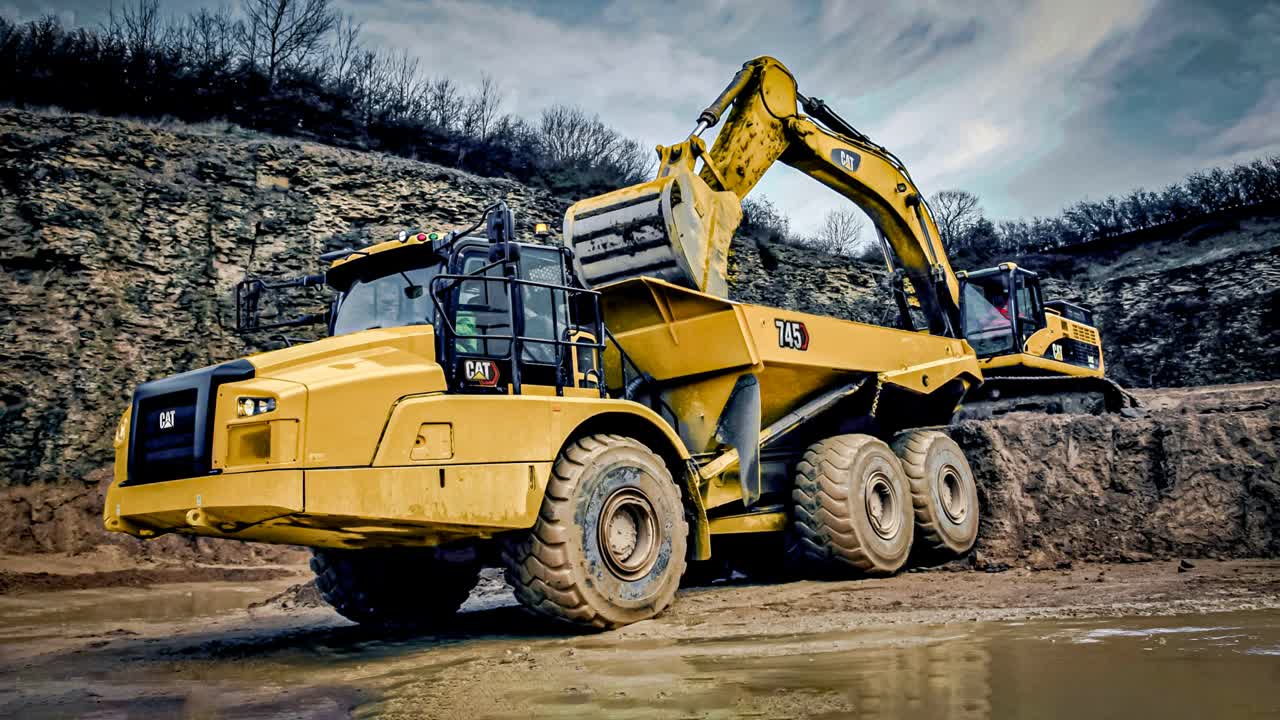

C Series Loading the AT

Position the Truck for Loading

• Position truck at a right angle to the bench.

• Align truck body center with excavator pivot point.

• Place excavator on a bench above the truck.

• Ensure bench height matches excavator stick height.

• Aim for a loading swing of 45 degrees or less.

Use Loading Enhancements

• Use a scissor tailgate for material containment.

• Utilize liner plates for protection against abrasive materials and rock.

• Monitor payload with the CAT production measurement system in the cab and via cab-mounted lights.

C Series Dumping the Material

Select a Suitable Dump Area

• Choose a firm, level area for machine stability.

• Minimize maneuvering to reduce cycle times and fuel consumption.

Tip the Material

• Stop the machine in a straight position.

• Use the recommended procedure for tipping.

• Control material discharge manually with the eject lever if using an ejector.

• Spread material according to ground speed.

• Eject material safely where tippers cannot be used.

C Series Regeneration

Manage Regeneration System

• Fill DEF tank from ground level as needed.

• Follow safety procedures for DEF.

• Automatic mode: regeneration occurs without input.

• Manual mode: stop machine, select neutral, engage park brake, hold regen switch for 5 seconds.

C Series Safety & Maintenance

Ensure Safety During Maintenance

• Use steering locks when wheels are lifted.

• Use body lock pin under raised body.

• Raise/lower hood with switch.

• Use cab windows or break glass for exit.

• Stop engine with key or switch.

• Inflate tires as recommended.

• Follow manual for maintenance.

Conclusion

End of Day Procedures

Correct operation of your CSeries articulated truck ensures a more comfortable, efficient, and profitable machine.
