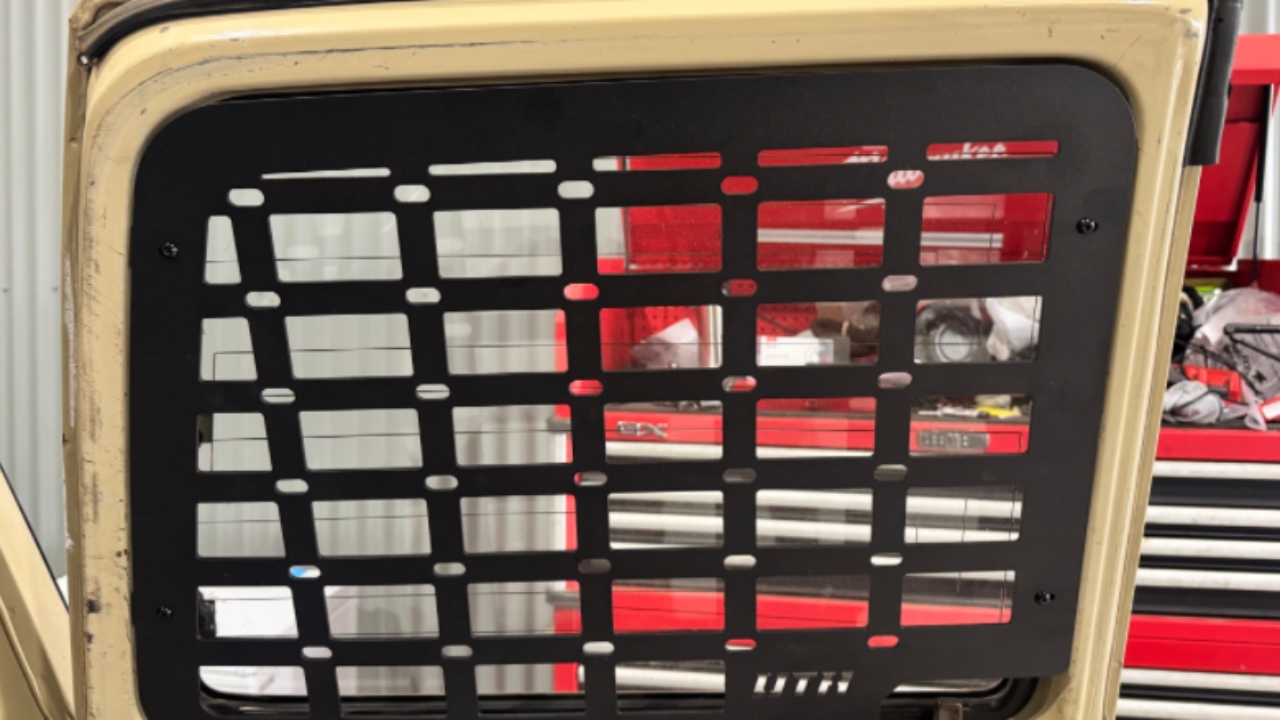

60 Series Right Hand Molle Panel
Fitting Instructions - 20/01/26
Fitting Instructions - 20/01/26
1
Step 1 of 9
<p><strong>Tools required</strong></p><ul><li><p>No2 Phillips screwdriver</p></li><li><p>Masking tape</p></li><li><p>Marking pen</p></li><li><p>3mm Allen key</p></li><li><p>8mm spanner</p></li><li><p>Drill</p></li><li><p>3mm drill bit</p></li><li><p>7.5mm drill bit</p></li><li><p>5mm Rivnut gun</p></li><li><p>Debuting tool</p></li><li><p>Drill stop</p></li></ul><p></p>

Tools required

  • No2 Phillips screwdriver

  • Masking tape

  • Marking pen

  • 3mm Allen key

  • 8mm spanner

  • Drill

  • 3mm drill bit

  • 7.5mm drill bit

  • 5mm Rivnut gun

  • Debuting tool

  • Drill stop

2
Step 2 of 9
<p><strong>Step One</strong></p><p>Unpack and lay out parts.</p><p>Note position of brackets</p>

Step One

Unpack and lay out parts.

Note position of brackets

3
Step 3 of 9
<p><strong>Step Two</strong></p><p>Mask door</p>

Step Two

Mask door

4
Step 4 of 9
<p><strong>Step Three</strong></p><p>Fit brackets to plate.</p>

Step Three

Fit brackets to plate.

5
Step 5 of 9

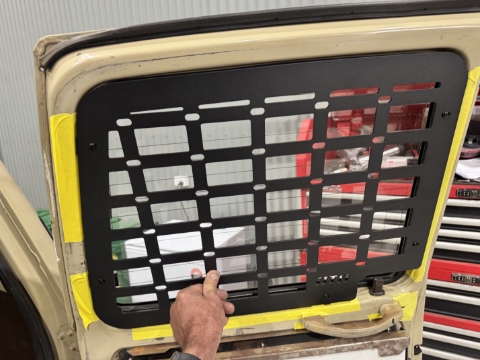

<p><strong>Step Four</strong></p><p>Have assistant hold plate in place and mark the holes to be drilled.</p>

Step Four

Have assistant hold plate in place and mark the holes to be drilled.

6
Step 6 of 9

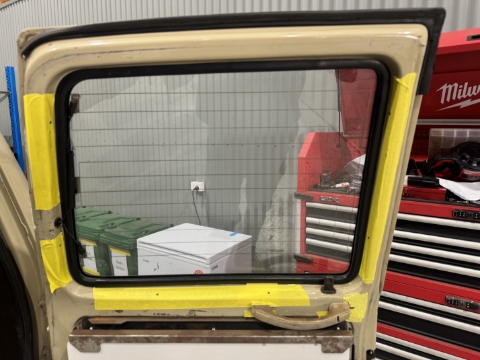

<p><strong>Step Five</strong></p><p>Drill 3mm pilot hole and then drill holes out to 7.5 mm. De bur and apply rust prevention.</p><p>Fit rivnuts.</p><p>Remove swarf</p>

Step Five

Drill 3mm pilot hole and then drill holes out to 7.5 mm. De bur and apply rust prevention.

Fit rivnuts.

Remove swarf

7
Step 7 of 9

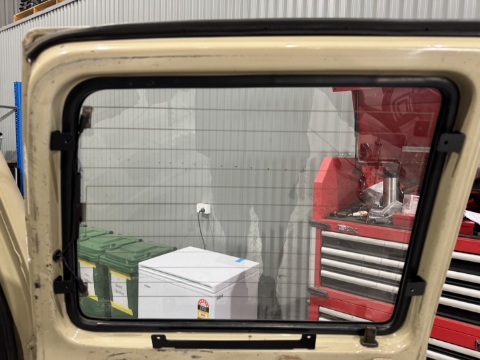

<p><strong>Step Six</strong></p><p>Remove brackets from plate and fit to the door</p>

Step Six

Remove brackets from plate and fit to the door

8
Step 8 of 9

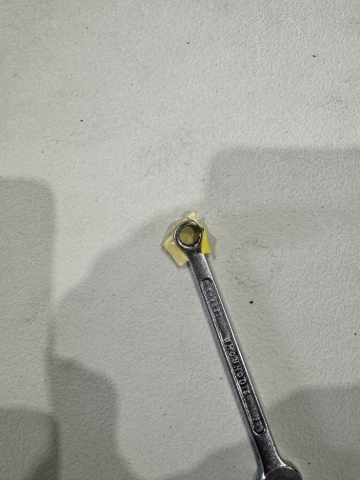

<p><strong>Tip:</strong> put small amount of masking tape on spanner to hold nut for easy installation.</p>

Tip: put small amount of masking tape on spanner to hold nut for easy installation.

9
Step 9 of 9

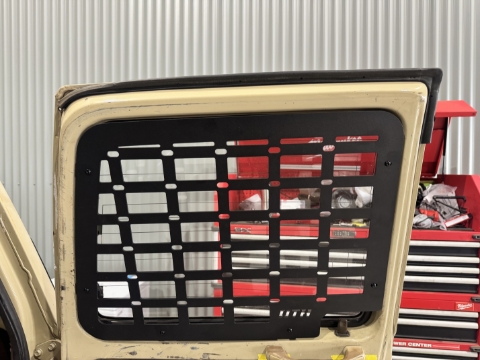

<p><strong>Tip:</strong> put small amount of masking tape on spanner to hold nut for easy installation.</p>

Tip: put small amount of masking tape on spanner to hold nut for easy installation.
