Thaco Feedback - Bending Process for Canopy Front Wall
1
Step 1 of 3

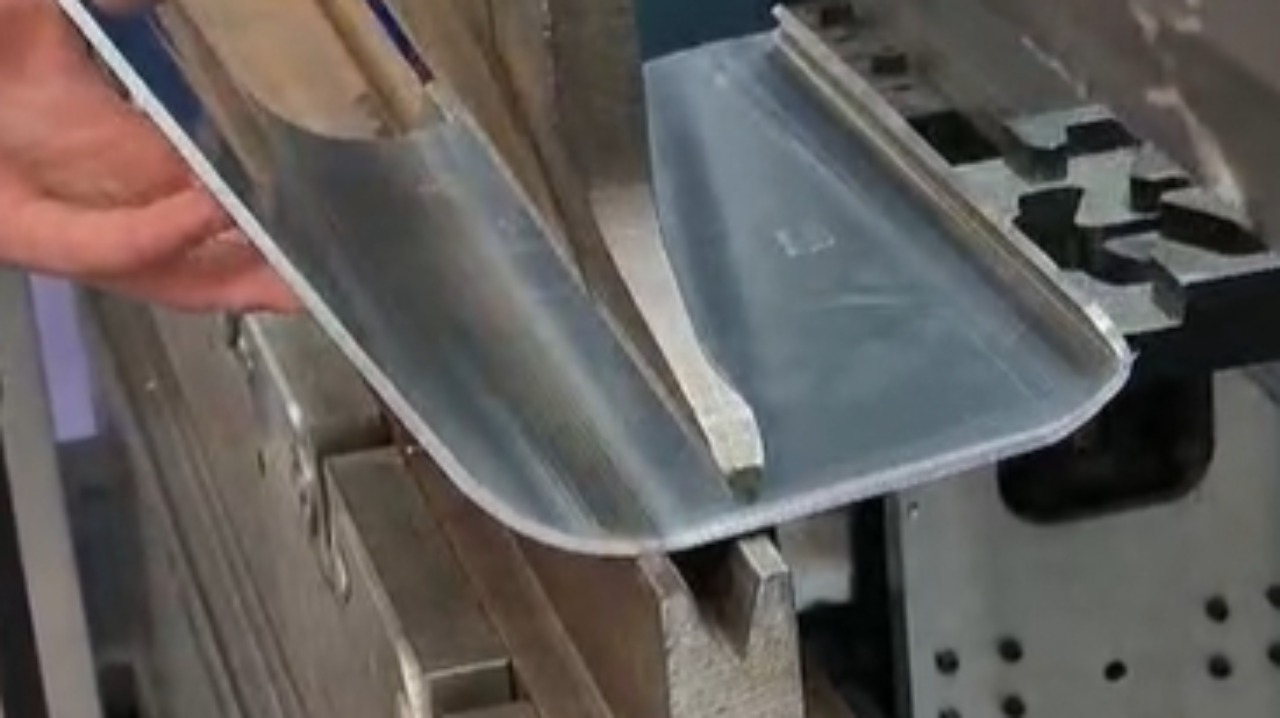

Example of Folding process of Front wall. Using a Scrap piece for example only.

Key Points:

  • The bump folds should be no more than 2x the material thickness apart.

  • R3 Tooling should be used for this as stated on the drawing (Tooling specification is critical on all our parts)

2
Step 2 of 3
<p>A Gauge can be used to check the angle, And if needed corrections can be made to acheive the correct radius and bend angle. </p>

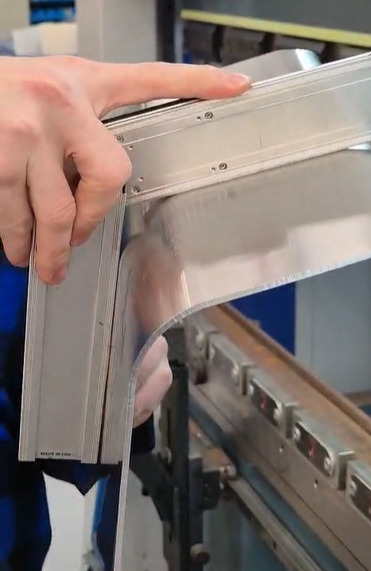

A Gauge can be used to check the angle, And if needed corrections can be made to acheive the correct radius and bend angle.
