How to replace a canopy door switch

Knowby

How to replace a canopy door switch

1

Step 1 of 9

Remove the door switch cover by undoing the M6 bolt

2

Step 2 of 9

Remove the switch bracket by undoing the 2 x M6 Bolts

3

Step 3 of 9

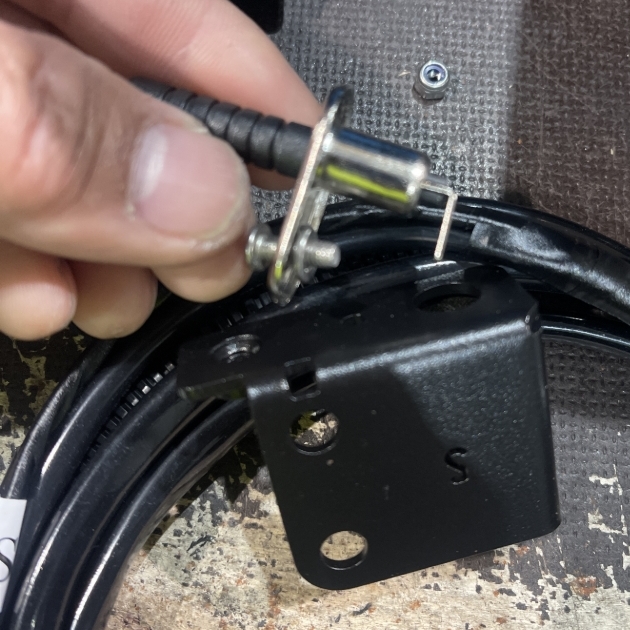

<p>Insert the switch with M4x12 bolt and put spring washer as a spacer.</p><p><br></p>

Insert the switch with M4x12 bolt and put spring washer as a spacer.

4

Step 4 of 9

Plug in the spade terminal to the door switch, then secure the eyelet onto the M4 bolt using a 7mm socket and 3mm hex.

5

Step 5 of 9

Insert the spade terminal make sure that the connection is not loose.

6

Step 6 of 9

Test that the switch is functioning correctly by turning on the canopy LED, with the other 2 closed, press the switch, the LED should turn off.

7

Step 7 of 9

Re-install the switch to the door using the 2 x M6 Bolts. - Don't fully tighten yet.

8

Step 8 of 9

<p>Confirm the switch aligns correctly to the locking tab.</p><p>Once this aligns, fully tighten the 2 x M6 Bolts.</p>

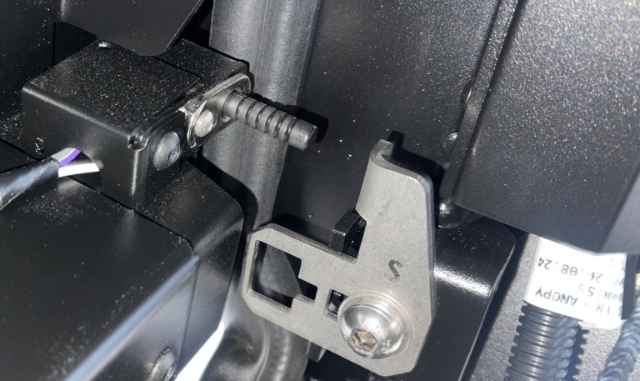

Confirm the switch aligns correctly to the locking tab.

Once this aligns, fully tighten the 2 x M6 Bolts.

9

Step 9 of 9

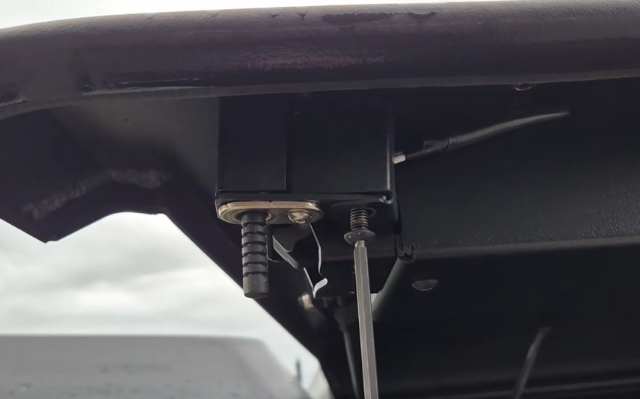

<p>Re-install the switch cover</p>

Re-install the switch cover
