TC - FRC2 Fuel Filler Installation
Applicable to all FRC2 cab configurations.
Applicable to all FRC2 cab configurations.
1
Step 1 of 9

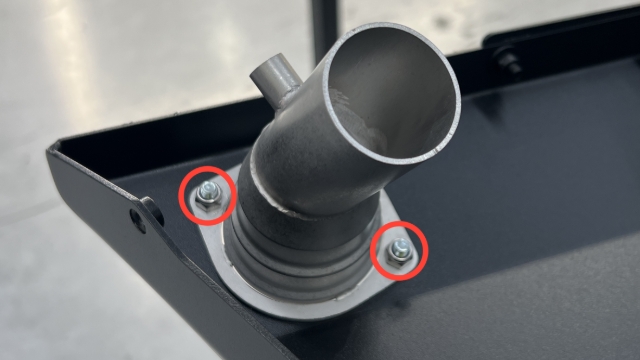

<p>Secure the fuel filler neck to the infill studs using 2 SS nyloc nuts.</p>

Secure the fuel filler neck to the infill studs using 2 SS nyloc nuts.

2
Step 2 of 9

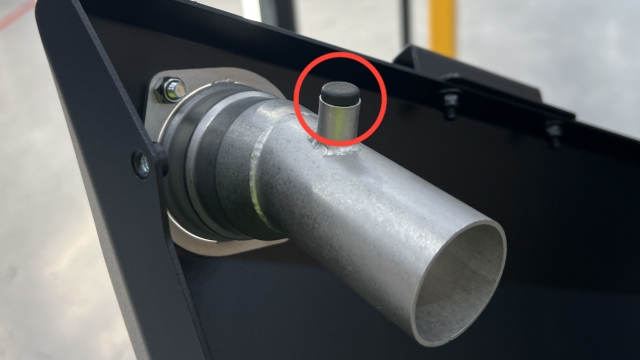

<p>Insert the plastic bung into the breather port to seal it.</p>

Insert the plastic bung into the breather port to seal it.

3
Step 3 of 9

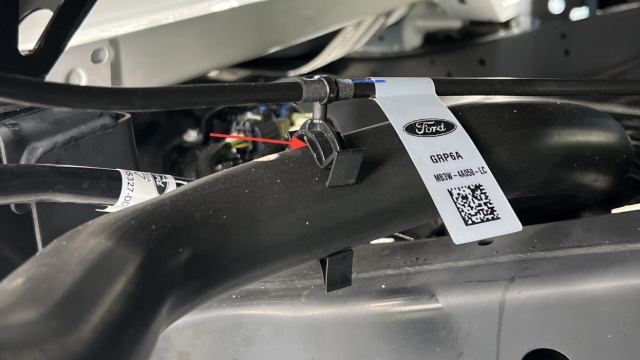

<p>Secure the rear axle breather to the moulded fuel hose using this retainer.</p>

Secure the rear axle breather to the moulded fuel hose using this retainer.

4
Step 4 of 9

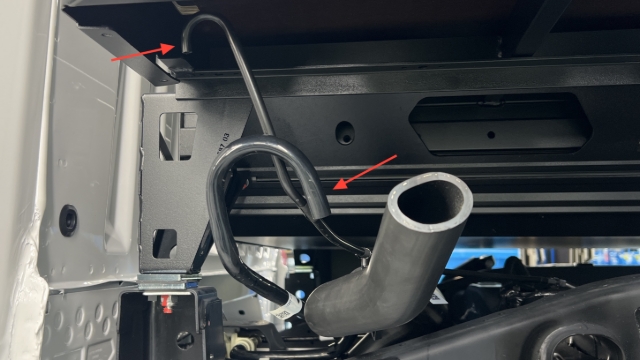

<p>Position the rear axle breather and fuel tank vent shepherds' hooks as shown before fitting the front infill.</p><blockquote><p><strong>CQC: Ensure each shepherd's hook is facing downward.</strong></p></blockquote><p></p>

Position the rear axle breather and fuel tank vent shepherds' hooks as shown before fitting the front infill.

CQC: Ensure each shepherd's hook is facing downward.

5
Step 5 of 9

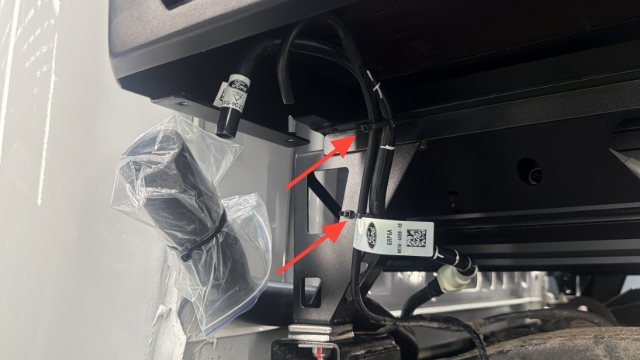

<p>Secure both breather lines to the front chassis mount using cable ties as shown.</p><blockquote><p><strong>CQC: Ensure each shepherd's hook is facing downward.</strong></p></blockquote><p></p>

Secure both breather lines to the front chassis mount using cable ties as shown.

CQC: Ensure each shepherd's hook is facing downward.

6
Step 6 of 9

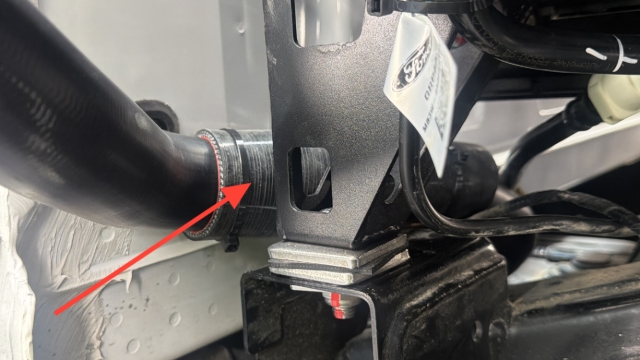

<p>Protect the main fuel line from rubbing against the chassis using an external sheath.</p>

Protect the main fuel line from rubbing against the chassis using an external sheath.

7
Step 7 of 9

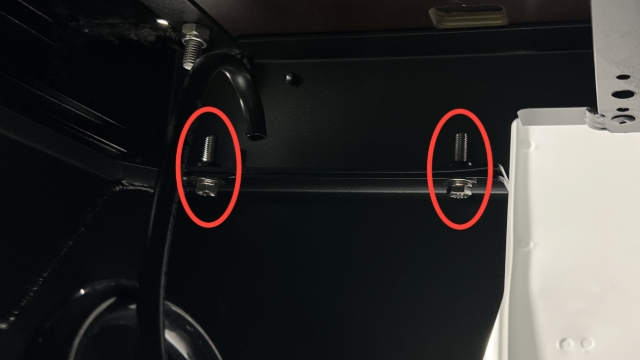

<p>Install the front infill using 2 SS M6x25 hex bolts.</p><blockquote><p><strong>CQC: Use a spring washer and flat washer with each bolt.</strong></p></blockquote><p></p>

Install the front infill using 2 SS M6x25 hex bolts.

CQC: Use a spring washer and flat washer with each bolt.

8
Step 8 of 9

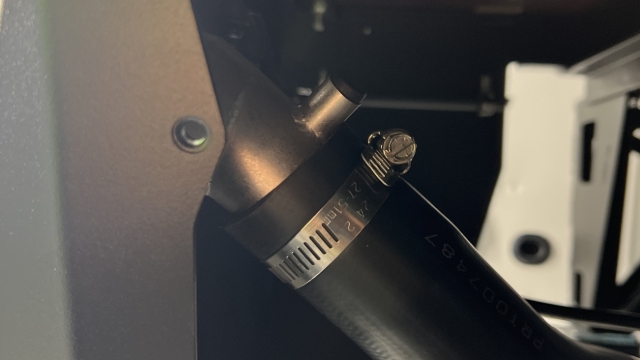

<p>Secure the moulded fuel hose to the fuel neck using an 8mm hose clamp.</p><blockquote><p><strong>CQC: Pull/twist test the hose to ensure this is tight.</strong></p></blockquote><p></p>

Secure the moulded fuel hose to the fuel neck using an 8mm hose clamp.

CQC: Pull/twist test the hose to ensure this is tight.

9
Step 9 of 9

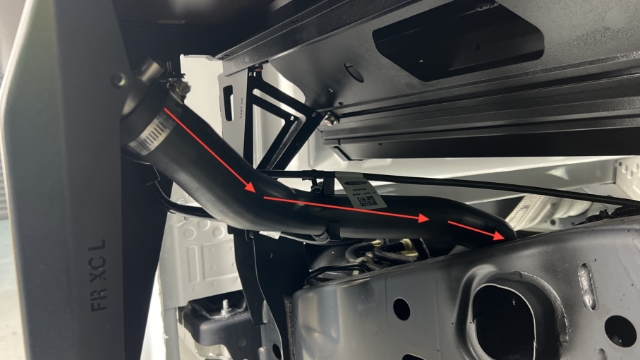

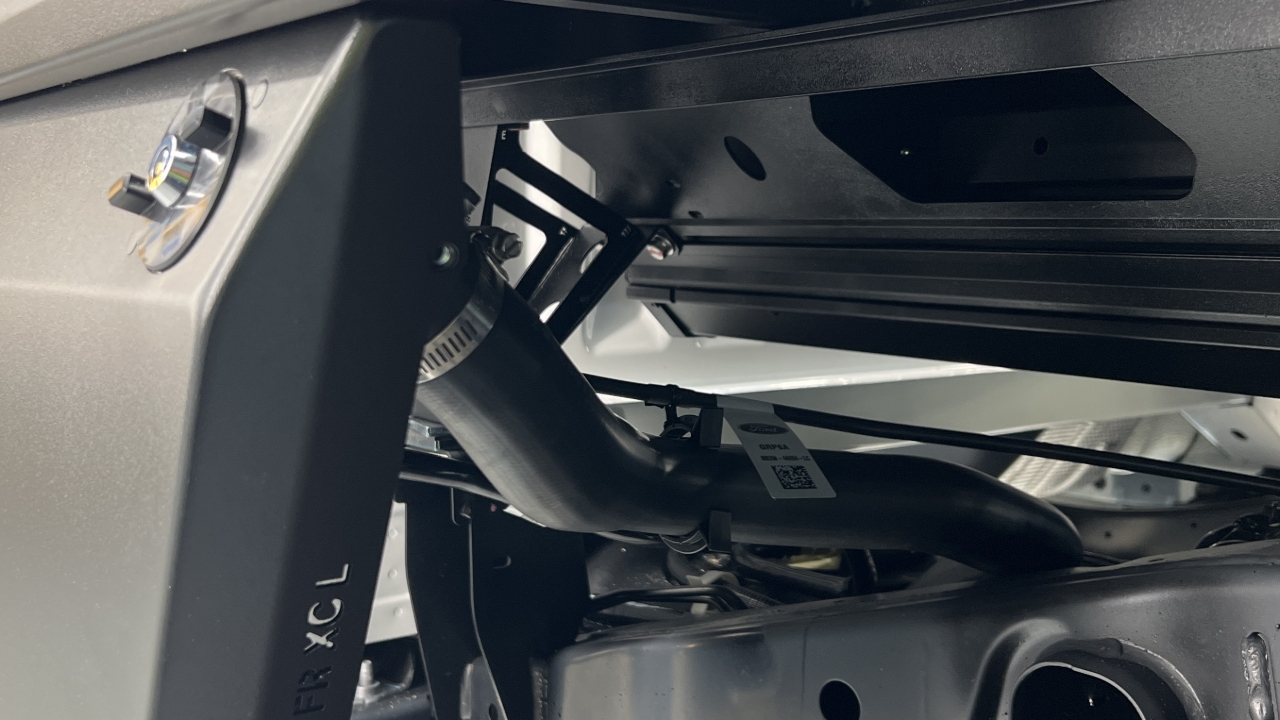

<blockquote><p><strong>CQC's:</strong></p><ul><li><p><strong>Ensure there is at least 3 degrees continuous fall from the fuel neck to the fuel tank.</strong></p></li><li><p><strong>Ensure there are no kinks or dips in the pipe.</strong></p></li><li><p><strong>Ensure the piping is not near or touching any sharp edges or protruding fasteners.</strong></p></li><li><p><strong>Ensure the fuel system is away from any hot surfaces or exhaust components.</strong></p></li></ul></blockquote><p></p>

CQC's:

  • Ensure there is at least 3 degrees continuous fall from the fuel neck to the fuel tank.

  • Ensure there are no kinks or dips in the pipe.

  • Ensure the piping is not near or touching any sharp edges or protruding fasteners.

  • Ensure the fuel system is away from any hot surfaces or exhaust components.
