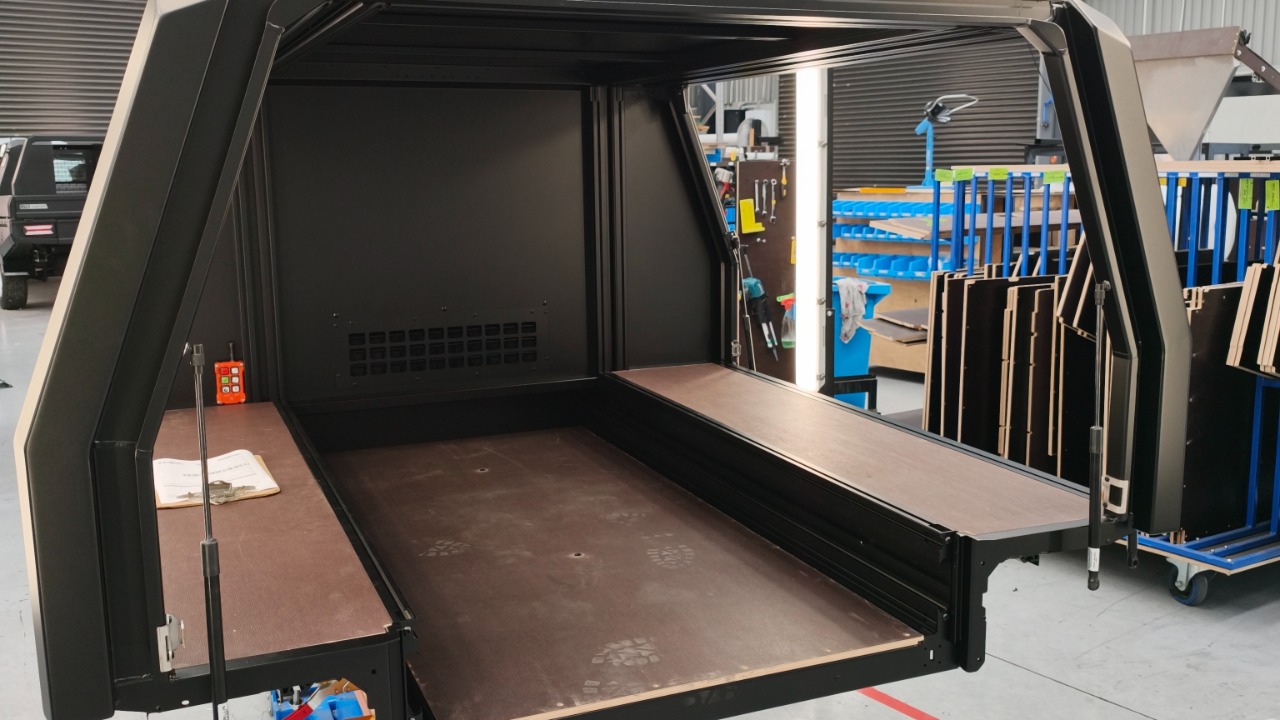

How to install or replace a Trailcore Body Internal Floor
1
Step 1 of 6

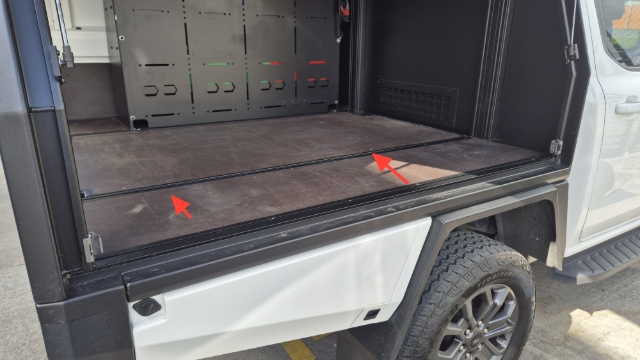

<p>To remove the ply, first slide this toward the centre of the body to this loosens out of the groove. </p><p>Note, this will be glued down to each cross member so this may need to be cut or broken before the ply can be removed.</p>

To remove the ply, first slide this toward the centre of the body to this loosens out of the groove.

Note, this will be glued down to each cross member so this may need to be cut or broken before the ply can be removed.

2
Step 2 of 6

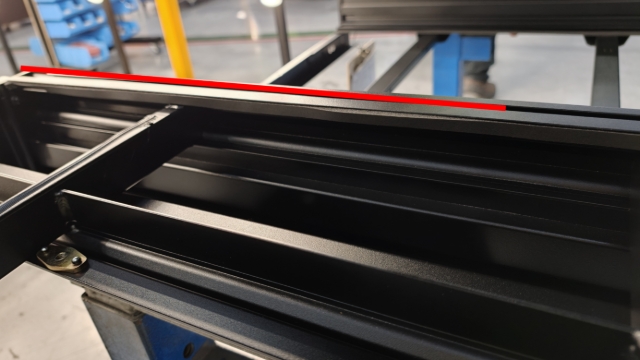

<p>Install side ply foam inside the full length of the U-channel shown (red).</p>

Install side ply foam inside the full length of the U-channel shown (red).

3
Step 3 of 6

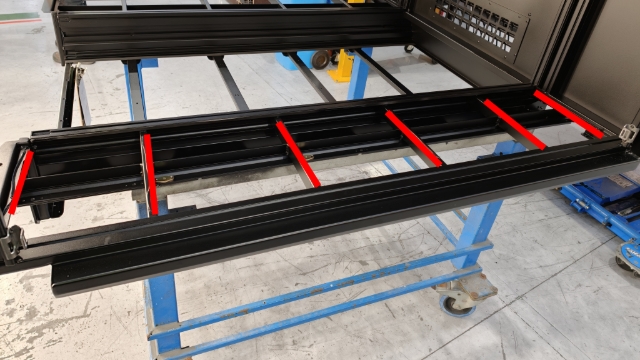

<p>Apply sealant along the full length of the top of each cross member.</p><p></p>

Apply sealant along the full length of the top of each cross member.

4
Step 4 of 6

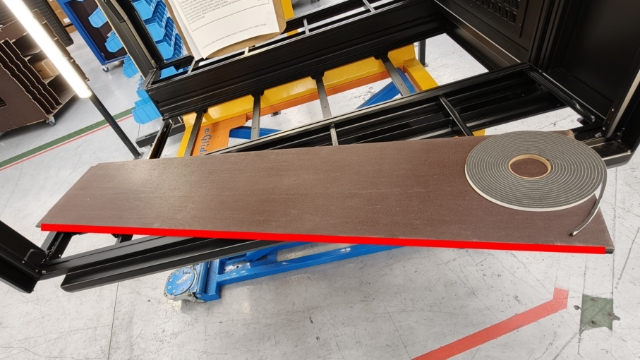

<p>Install side ply foam to the full length of the outside of each side ply insert.</p>

Install side ply foam to the full length of the outside of each side ply insert.

5
Step 5 of 6

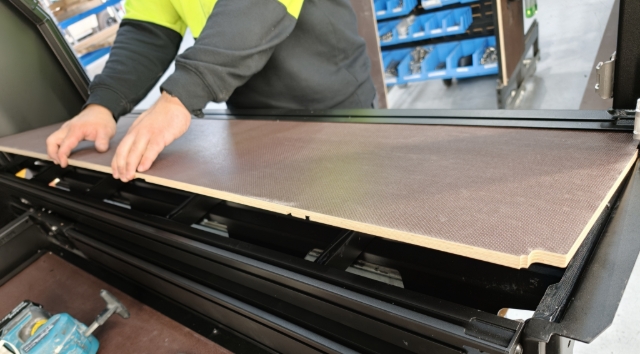

<p>Install each side ply insert by angling into the outside U-channel first.</p>

Install each side ply insert by angling into the outside U-channel first.

6
Step 6 of 6

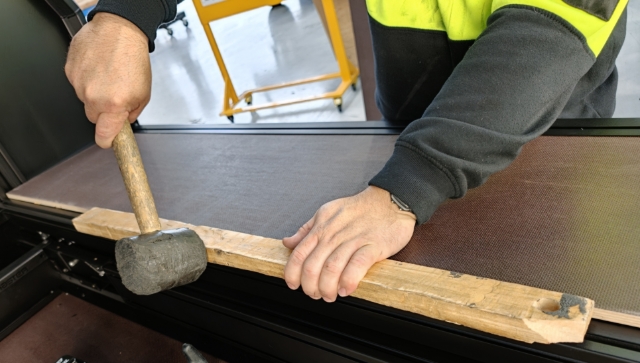

<p>If the ply is too hard to press into position by hand, gently edge into place using a rubber mallet.</p>

If the ply is too hard to press into position by hand, gently edge into place using a rubber mallet.
