PERU Pre-Start Inspection for Structural Integrity
The steps outlined in this instruction are to provide the PERU operator with the relevant warnings and precautions, as well as a visual reference identifying the location of the components to be inspected when undertaking the SWP - PERU Pre-Start Inspection for Structural Integrity.
The steps outlined in this instruction are to provide the PERU operator with the relevant warnings and precautions, as well as a visual reference identifying the location of the components to be inspected when undertaking the SWP - PERU Pre-Start Inspection for Structural Integrity.
1
Step 1 of 18

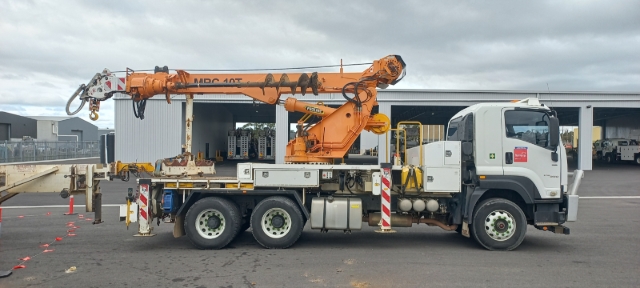

<p><strong>Inspection Principles:</strong></p><p>Look for CRACKS, OIL LEAKS or LOOSE BOLTS.</p><p><span style="color: rgb(0, 0, 0);">If any components are loose, missing, damaged, have broken torque seals, show signs of movement or contain cracks:&nbsp;</span></p><p><span style="color: rgb(0, 0, 0);">If any components are loose, missing, damaged, have broken torque seals, show signs of movement or contain cracks:&nbsp;</span></p><p><span style="color: rgb(0, 0, 0); font-size: 24px; line-height: 1.4;"><strong>NOTE: </strong>Where a locker has been placed in front of the weld, it may be only possible to inspect the exposed section.</span></p><p></p><p><span style="color: rgb(255, 0, 0);"><strong>DO NOT OPERATE PERU. TAG OUT THE EQUIPMENT AND REPORT THE ISSUE TO YOUR SUPERVISOR</strong></span></p>

Inspection Principles:

Look for CRACKS, OIL LEAKS or LOOSE BOLTS.

If any components are loose, missing, damaged, have broken torque seals, show signs of movement or contain cracks:

If any components are loose, missing, damaged, have broken torque seals, show signs of movement or contain cracks:

NOTE: Where a locker has been placed in front of the weld, it may be only possible to inspect the exposed section.

DO NOT OPERATE PERU. TAG OUT THE EQUIPMENT AND REPORT THE ISSUE TO YOUR SUPERVISOR

2
Step 2 of 18
<p><span style="color: windowtext;">Additional Items:</span></p><p><span style="color: windowtext;">A torch for inspection in low-light conditions&nbsp;&nbsp;</span></p><p><span style="color: windowtext;">Clean rags to remove dirt, grease or contaminants from inspection areas&nbsp;</span></p><p></p>

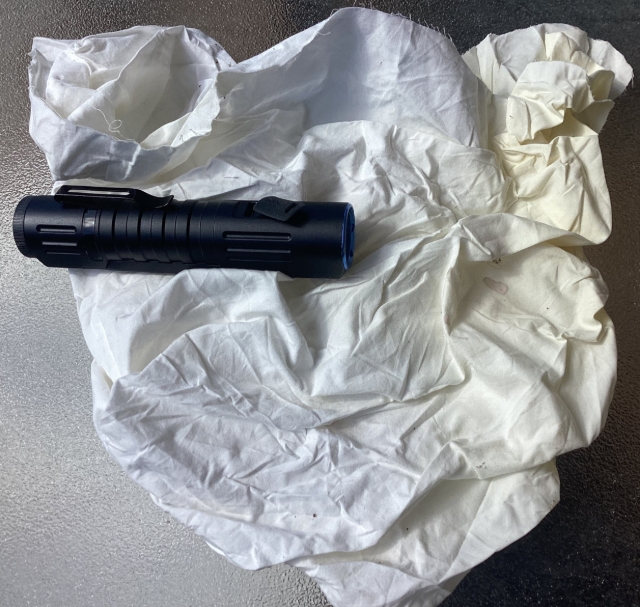

Additional Items:

A torch for inspection in low-light conditions

Clean rags to remove dirt, grease or contaminants from inspection areas

3
Step 3 of 18
<p><span style="color: rgb(0, 0, 0); font-size: 34px; line-height: 1.4;"><strong>Crane Inspection Locations</strong></span></p><ol><li><p><span style="color: rgb(0, 0, 0);"><strong>Front Cross member locations</strong>&nbsp;</span></p></li><li><p><span style="color: rgb(0, 0, 0);"><strong>Chassis tie and securing (clamping) plate locations</strong></span></p></li><li><p><span style="color: rgb(0, 0, 0);"><strong>Turret base, slew gearbox, turret pedestal and slew bearing mounting bolt locations</strong></span></p></li><li><p><span style="color: rgb(0, 0, 0);"><strong>Upper and lower luff cylinder clevis pin locations</strong>&nbsp;</span></p></li><li><p><span style="color: rgb(0, 0, 0);">&nbsp;<strong>Winch frame to jib and jib support for winch</strong>&nbsp;</span></p></li><li><p><span style="color: rgb(0, 0, 0);"><strong>Jib-to-turret pin support boss and rear of jib-to-turret connection</strong>&nbsp;</span></p></li><li><p><span style="color: rgb(0, 0, 0);"><strong>Upper luff cylinder clevis</strong>&nbsp;</span></p></li></ol><p></p>

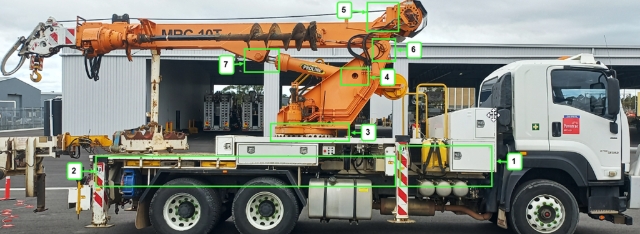

Crane Inspection Locations

  1. Front Cross member locations

  2. Chassis tie and securing (clamping) plate locations

  3. Turret base, slew gearbox, turret pedestal and slew bearing mounting bolt locations

  4. Upper and lower luff cylinder clevis pin locations

  5.  Winch frame to jib and jib support for winch

  6. Jib-to-turret pin support boss and rear of jib-to-turret connection

  7. Upper luff cylinder clevis

4
Step 4 of 18
<p><span style="color: rgb(0, 0, 0); font-size: 24px; line-height: 1.4;"><strong>1. Front Cross member locations</strong></span></p><p></p><p></p>

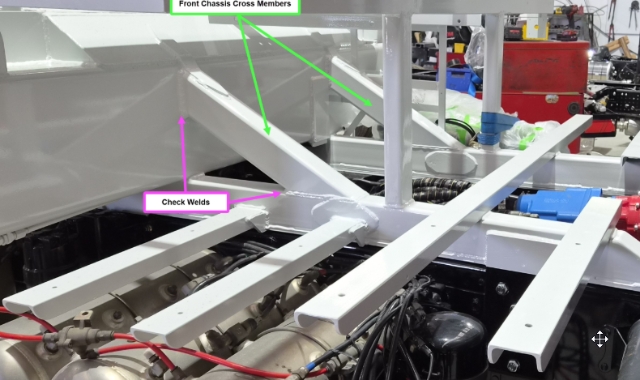

1. Front Cross member locations

5
Step 5 of 18

1.Front Cross member

6
Step 6 of 18
<p><span style="color: rgb(0, 0, 0); font-size: 24px; line-height: 1.4;"><strong>2.Chassis tie and securing plate locations</strong></span></p><p></p><p></p><p></p><p><span style="color: rgb(0, 0, 0); font-size: 22px; line-height: 1.4;"><strong>This Image is an overview of</strong></span><span style="color: rgb(0, 0, 0); font-size: 13.3333px; line-height: 1.4;"><strong> </strong></span><span style="color: rgb(0, 0, 0);"><strong>Chassis tie and securing (clamping) plate locations- Prior to fitting to the truck.</strong>&nbsp;</span></p>

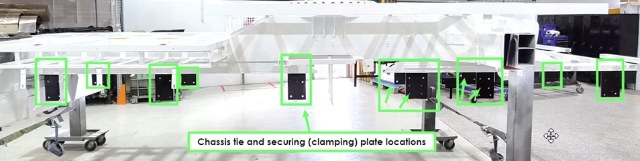

2.Chassis tie and securing plate locations

This Image is an overview of Chassis tie and securing (clamping) plate locations- Prior to fitting to the truck.

7
Step 7 of 18
<p><span style="color: rgb(0, 0, 0); font-size: 24px; line-height: 1.4;"><strong>2.Chassis tie and securing plate locations</strong></span></p><p></p><p></p><p><span style="color: rgb(0, 0, 0);"><strong>Right Hand Side Facing Rear-Chassis tie and securing (clamping) plate locations</strong></span></p>

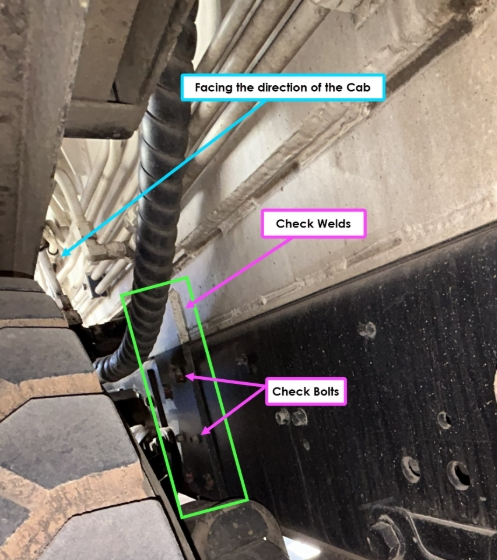

2.Chassis tie and securing plate locations

Right Hand Side Facing Rear-Chassis tie and securing (clamping) plate locations

8
Step 8 of 18

2.Chassis tie and securing plate locations-Right Hand Side

9
Step 9 of 18

2.Chassis tie and securing plate locations-Left Hand Side

10
Step 10 of 18
<p><strong>3</strong>.<strong>Turret base, slew gearbox, turret pedestal and slew bearing mounting bolts</strong></p><p><span style="color: rgb(0, 0, 0);">If any components are loose, missing, damaged, have broken torque seals, show signs of movement or contain cracks:&nbsp;</span></p><p><span style="color: rgb(0, 0, 0);">If any components are loose, missing, damaged, have broken torque seals, show signs of movement or contain cracks:&nbsp;</span></p><p><span style="color: rgb(0, 0, 0);">&nbsp;</span><span style="color: rgb(255, 0, 0);"><strong>DO NOT OPERATE PERU. TAG OUT THE EQUIPMENT AND REPORT THE ISSUE TO YOUR SUPERVISOR</strong></span></p>

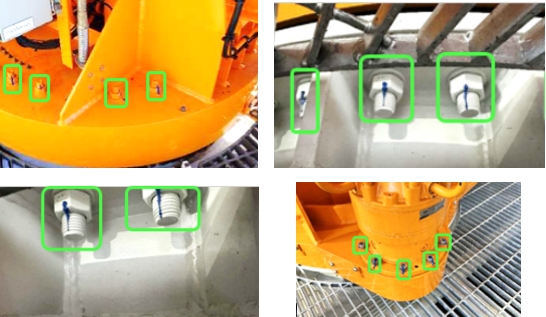

3.Turret base, slew gearbox, turret pedestal and slew bearing mounting bolts

If any components are loose, missing, damaged, have broken torque seals, show signs of movement or contain cracks:

If any components are loose, missing, damaged, have broken torque seals, show signs of movement or contain cracks:

 DO NOT OPERATE PERU. TAG OUT THE EQUIPMENT AND REPORT THE ISSUE TO YOUR SUPERVISOR

11
Step 11 of 18
<p><span style="font-size: 22px; line-height: 1.4;"><strong>3. </strong></span><span style="color: rgb(0, 0, 0); font-size: 22px; line-height: 1.4;"><strong>Turret base, slew gearbox, turret pedestal and slew bearing mounting bolt locations</strong></span></p><p></p><p><span style="color: rgb(0, 0, 0); font-size: 22px; line-height: 1.4;"><strong>NOTE: </strong></span><span style="font-size: 22px; line-height: 1.4;"><strong>Where only the bolt ends are visible, ensure all bolt ends are protruding evenly</strong></span></p>

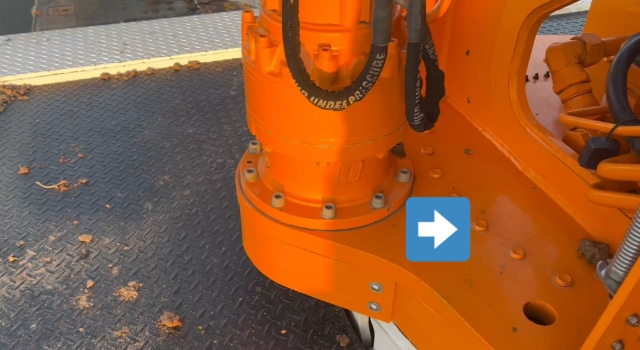

3. Turret base, slew gearbox, turret pedestal and slew bearing mounting bolt locations

NOTE: Where only the bolt ends are visible, ensure all bolt ends are protruding evenly

12
Step 12 of 18

3.Turret base, slew gearbox, turret pedestal and slew bearing mounting bolt locations

13
Step 13 of 18

4. Upper and lower luff cylinder clevis pin locations

Inspect lower clevis mounts, pins and retainers

14
Step 14 of 18

4.Luff cylinder pin support housing

15
Step 15 of 18

5. Winch frame to jib and jib support for winch

16
Step 16 of 18

6 Jib-to-turret pin support boss and rear of jib-to-turret connection

17
Step 17 of 18

7 Upper luff cylinder clevis

18
Step 18 of 18

8. Legs
