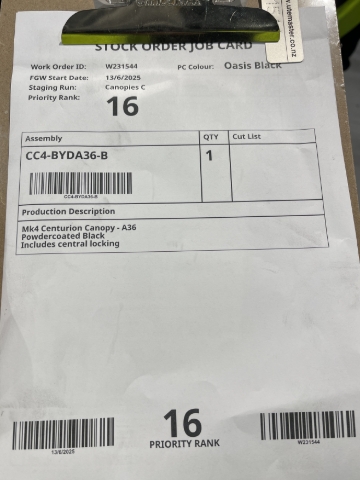

Get the Job card with priority rank number

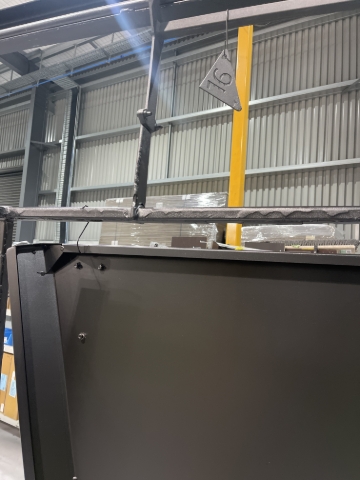

Get the doors to be assembled from the rack matching priority number

Check all 3 doors for defects and immediately send to rework if found any.

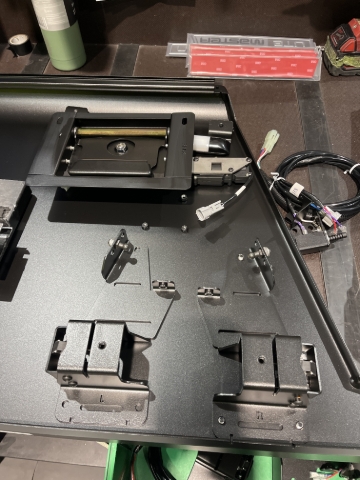

Prepare the brackets to be used for the door you are making including central locking parts if it is need to.

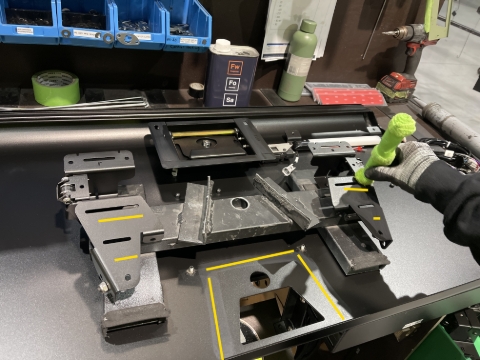

Apply activator on the brackets and to the door nearest to the studs.

Apply glue on the brackets

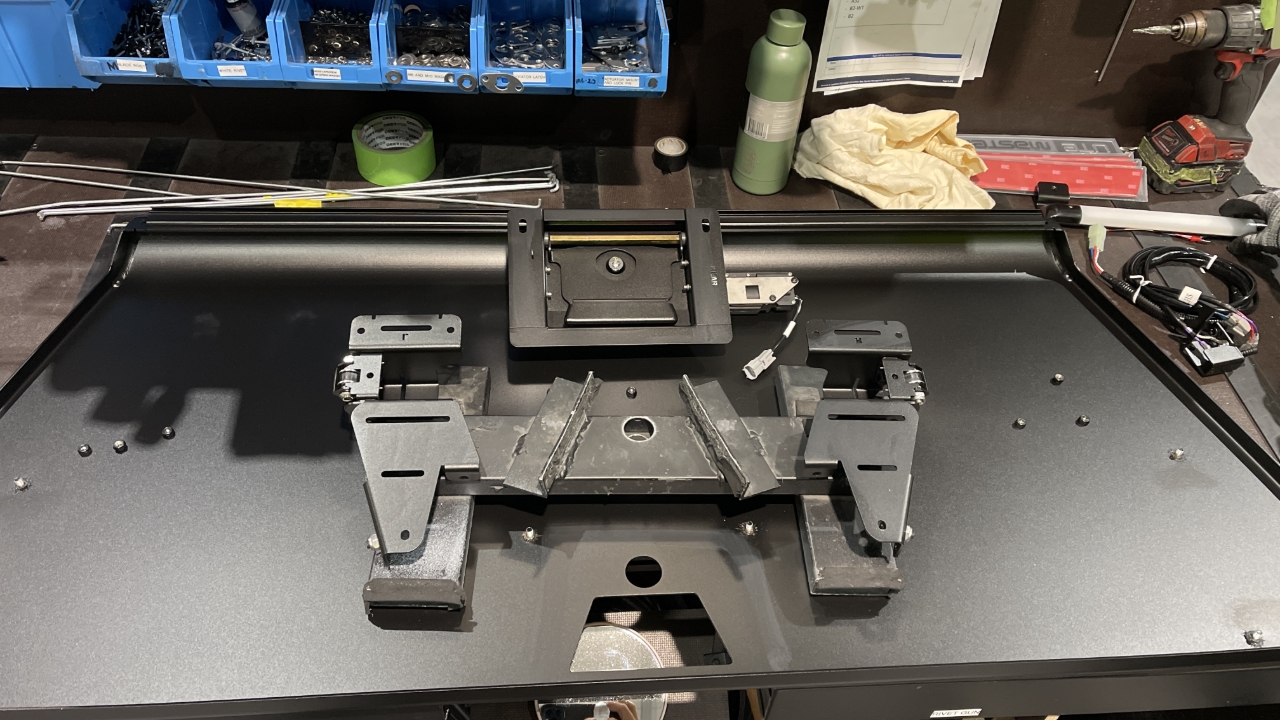

Place the handle and brackets to the door

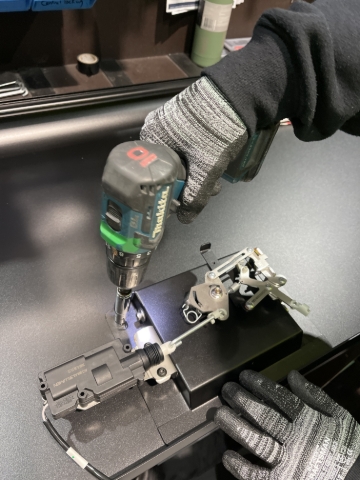

Tighten the nuts to the studs

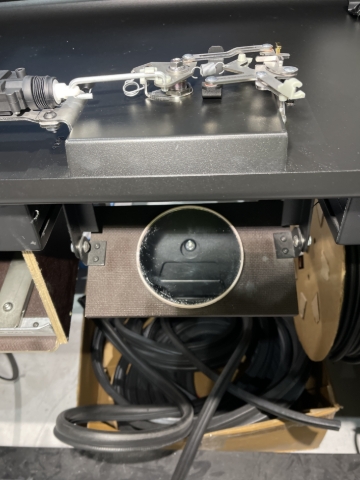

Using the mirror make sure the lock is centered.

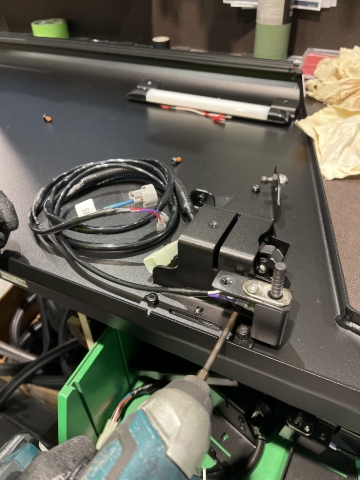

Connect the central locking switch to the bracket

Connect the terminal to the actuator on the handle.

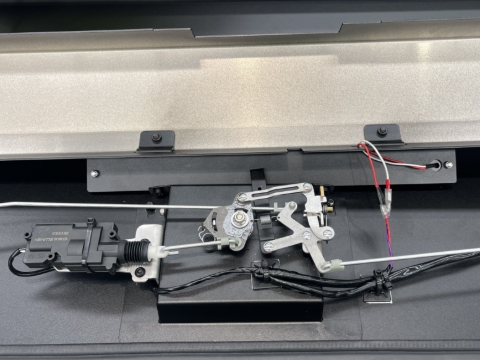

Make sure that the wiring is zip ties and away from the mechanism

Make sure that the cable are loosened not on tension giving allowance for door opening and closing to avoid any damage to the wires.

Install the designated rod for this model

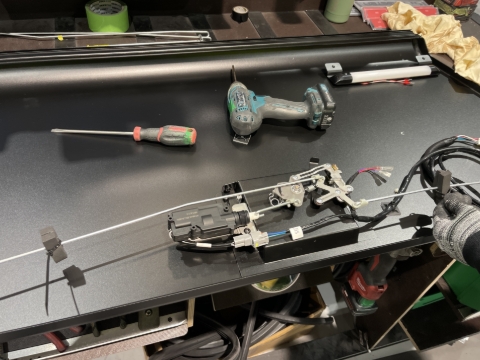

*CQC insert foam on the center of the rods

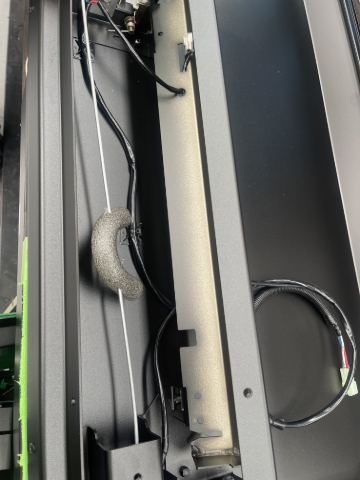

Make sure rod is straight, not folded in between.

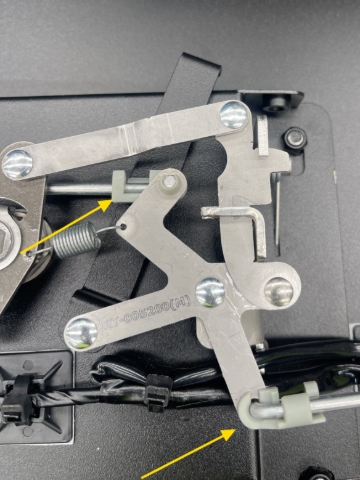

*CQC Make sure that the plastic pivot for rods is lock to prevent from coming off.

Put the required windlace seal if you are making the rear door

Put the cover and taking out the LED terminal

Connect the terminals

Using M6x12 Black Bolts with pre-applied thread-locker. Install the lock cover and LED light bracket.

CQC: Do not overtighten these bolts, the Thread locker will prevent these from rattling loose.

Put an extrusion to the the wires ready for the next assembly

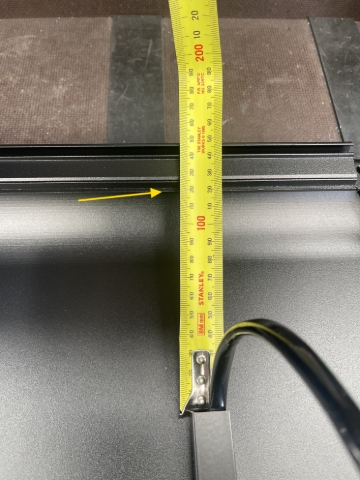

*CQC Keep 120mm space for wiring loom from extrusion to door hinge

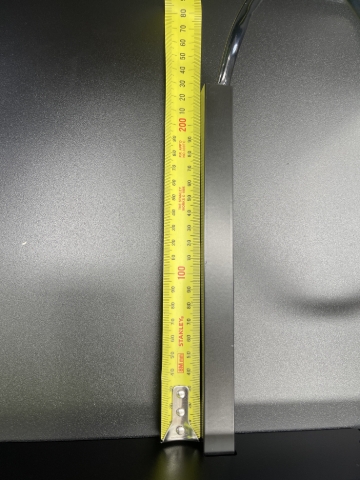

Use 220mm extrusion for rear door

Lastly install the Utemaster logo on the left side of the door using the jig provided. Door is ready.
