TC - FRC2 DC Chassis Prep
1
Step 1 of 7

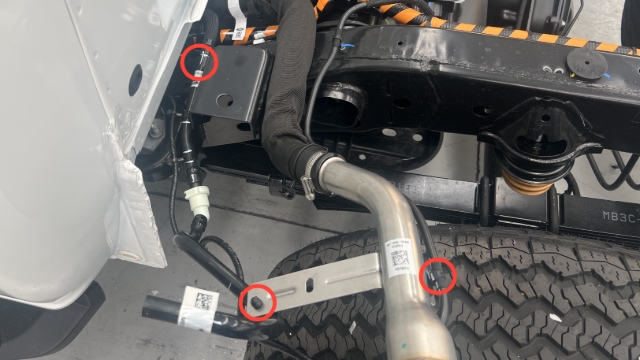

<p>Cut the cable ties holding the rear axle breather and fuel tank vent hose to the fuel neck and chassis.</p>

Cut the cable ties holding the rear axle breather and fuel tank vent hose to the fuel neck and chassis.

2
Step 2 of 7

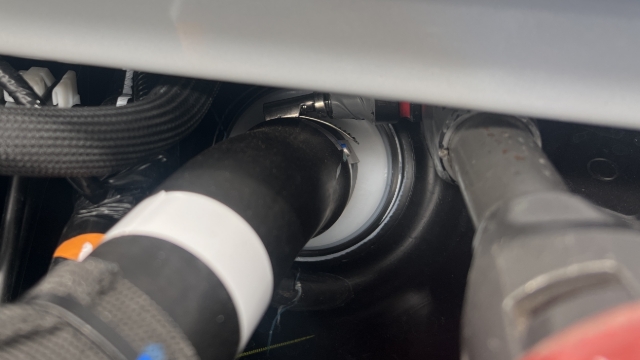

<p>Loosen the hose clamp at the tank-end of the fuel filler pipe with a 7mm socket.</p>

Loosen the hose clamp at the tank-end of the fuel filler pipe with a 7mm socket.

3
Step 3 of 7

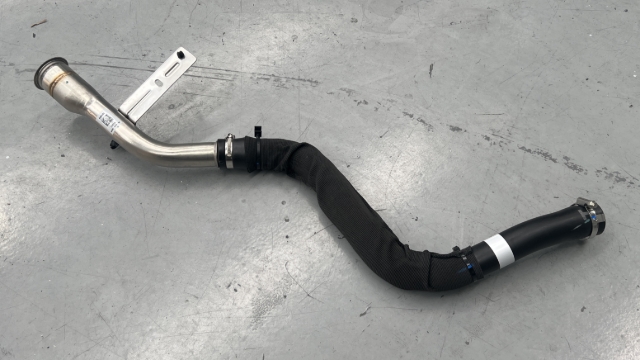

<p>Remove and dispose of the factory fuel filler pipe.</p>

Remove and dispose of the factory fuel filler pipe.

4
Step 4 of 7

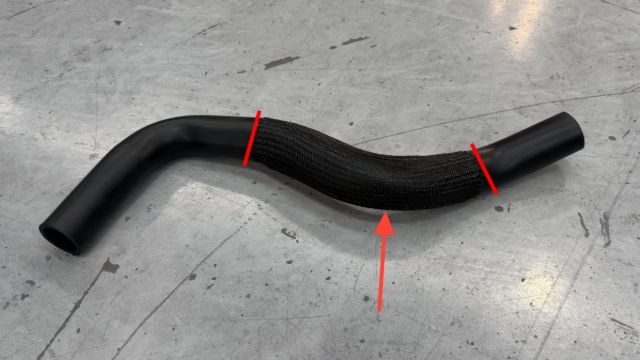

<p>Pre-install approximately 300mm of 50mm braided protective sleeving over this section of the moulded fuel hose (PRT-007487).</p>

Pre-install approximately 300mm of 50mm braided protective sleeving over this section of the moulded fuel hose (PRT-007487).

5
Step 5 of 7

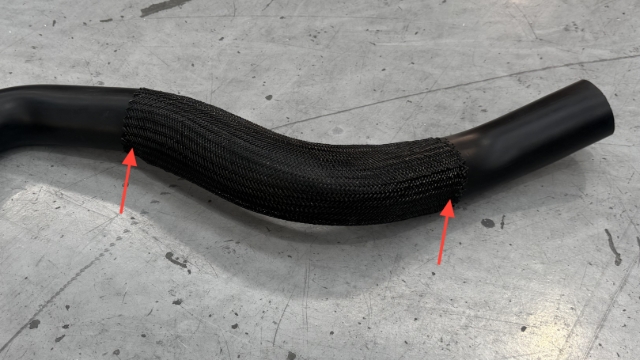

<p>Dot with super glue (Loctite 406) to keep in place.</p>

Dot with super glue (Loctite 406) to keep in place.

6
Step 6 of 7

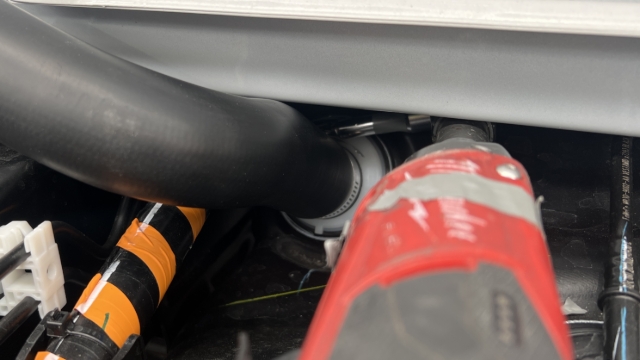

<p>Using an 8mm hose clamp, fix the FRC2 moulded fuel hose (PRT-007487) to the fuel tank.</p>

Using an 8mm hose clamp, fix the FRC2 moulded fuel hose (PRT-007487) to the fuel tank.

7
Step 7 of 7

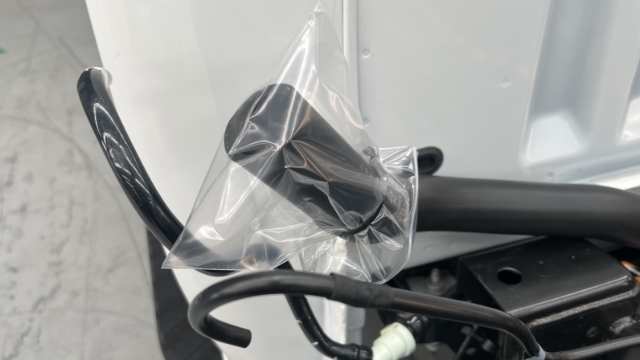

<blockquote><p><strong>CQC: Cable tie a plastic bag over the fuel hose inlet to prevent fuel contamination.</strong></p></blockquote><p></p>

CQC: Cable tie a plastic bag over the fuel hose inlet to prevent fuel contamination.
