Replacing a Mk3 Canopy Lock
How to replace the lock on a Mk3 Canopy
How to replace the lock on a Mk3 Canopy
1
Step 1 of 9

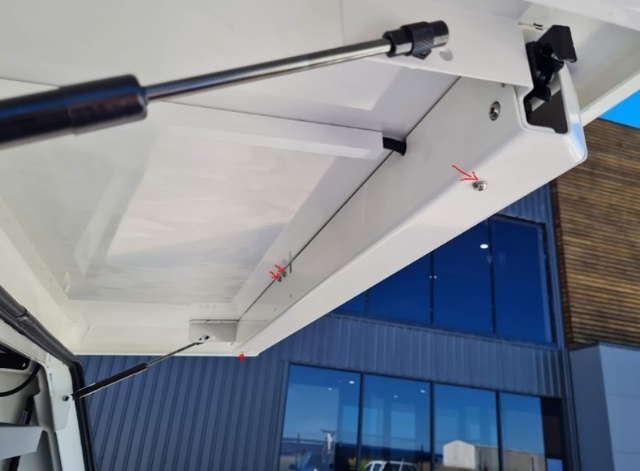

<p><span style="color: black; line-height: 1.4;">Remove lock cover by undoing the 4 bolts shown</span></p>

Remove lock cover by undoing the 4 bolts shown

2
Step 2 of 9

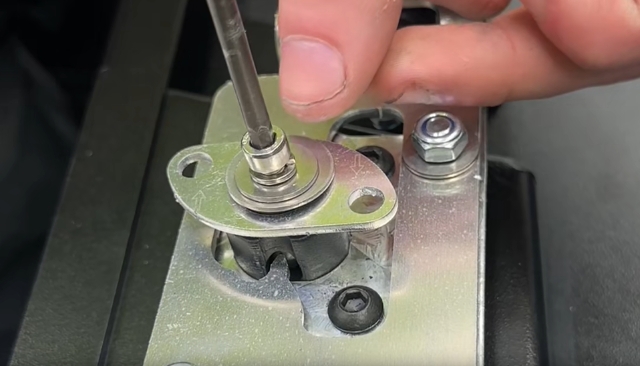

<p>Remove the locking rods from the back of the lock. Take care not to loose any fasteners as these will be needed later.</p>

Remove the locking rods from the back of the lock. Take care not to loose any fasteners as these will be needed later.

3
Step 3 of 9

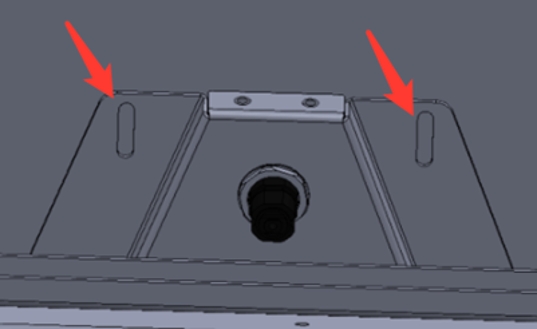

<p><span style="color: black; line-height: 1.4;">Undo nuts securing lock backing plate</span></p>

Undo nuts securing lock backing plate

4
Step 4 of 9

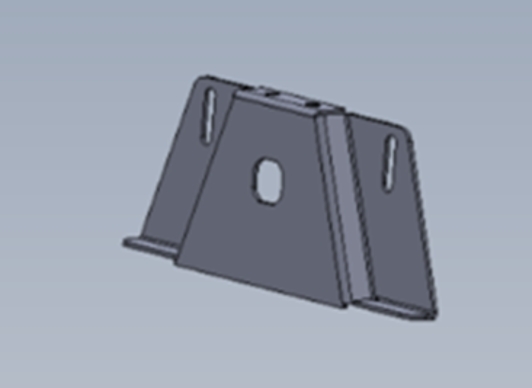

<p><span style="color: black;">Remove the latch backing bracket from the canopy. As this is glued, this may need to be heated and the glue gently cut using a blade.</span></p><blockquote><p>Take care not to dent the door skin while removing this as this will be visible from the outside.</p></blockquote><p></p>

Remove the latch backing bracket from the canopy. As this is glued, this may need to be heated and the glue gently cut using a blade.

Take care not to dent the door skin while removing this as this will be visible from the outside.

5
Step 5 of 9
<p>Replace the lock in the the housing.</p>

Replace the lock in the the housing.

6
Step 6 of 9

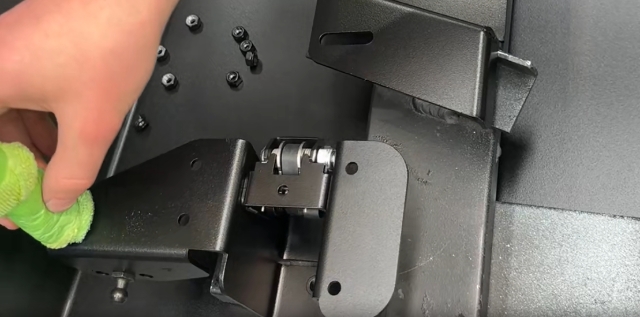

<p>Prepare all of the powder coated surfaces using a surface activator.</p><blockquote><p>Take care not to get surface activator on visible areas of the canopy as this alters the surface of the powder coating to help the glue to stick.</p></blockquote><p></p>

Prepare all of the powder coated surfaces using a surface activator.

Take care not to get surface activator on visible areas of the canopy as this alters the surface of the powder coating to help the glue to stick.

7
Step 7 of 9

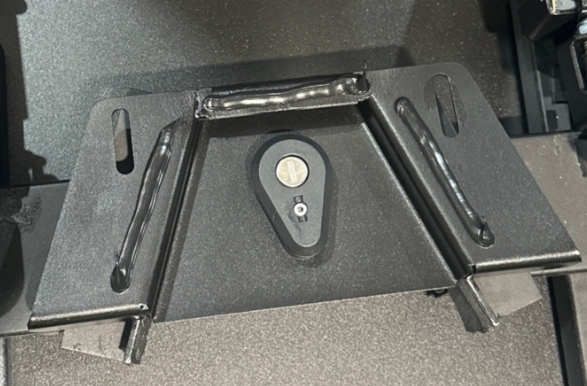

<p>Re-Glue the housing using a windscreen glue.</p>

Re-Glue the housing using a windscreen glue.

8
Step 8 of 9

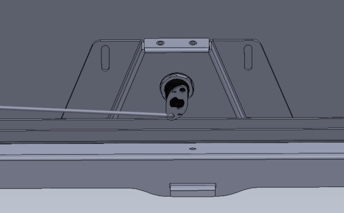

<p>Place the housing back onto the canopy and secure this in place using the 2 studs, clean up any excess glue.</p>

Place the housing back onto the canopy and secure this in place using the 2 studs, clean up any excess glue.

9
Step 9 of 9
<p>Re-install the lock cover</p><p></p>

Re-install the lock cover
