TC - FRC2 Door Alarm
1
Step 1 of 5
<p>Disconnect and isolate the negative battery terminal. </p>

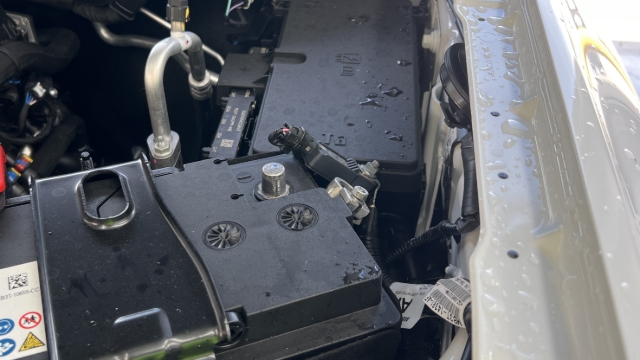

Disconnect and isolate the negative battery terminal.

2
Step 2 of 5
<p>Remove the radiator cover using a phillips screwdriver.</p>

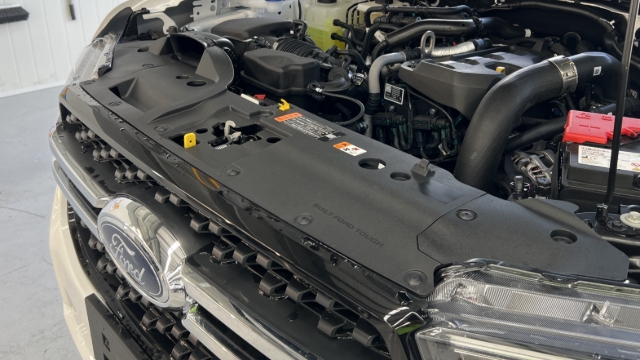

Remove the radiator cover using a phillips screwdriver.

3
Step 3 of 5
<p>Identify the hood courtesy plug.</p>

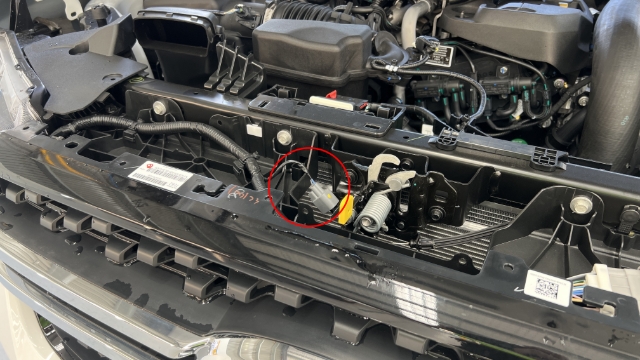

Identify the hood courtesy plug.

4
Step 4 of 5
<p>Use adapter splitter plugs.</p><p></p><p>Without the plug:</p><p>Split the Blue/Pink wire in half.</p>

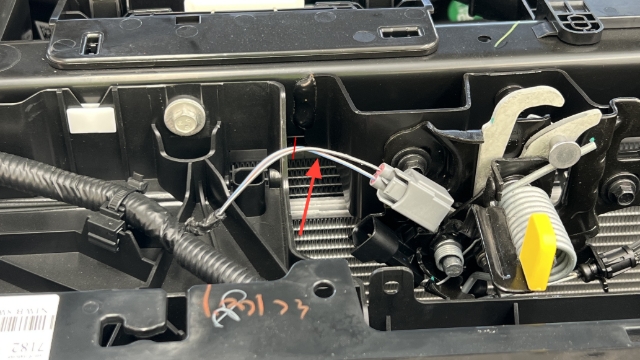

Use adapter splitter plugs.

Without the plug:

Split the Blue/Pink wire in half.

5
Step 5 of 5
<p>Extend the lines to reach the relay inside the PIR Sensor, first wire will be connected on C (Common Terminal) and the other into NC (Normally Closed Terminal). </p><p>Note: Interchangeable </p>

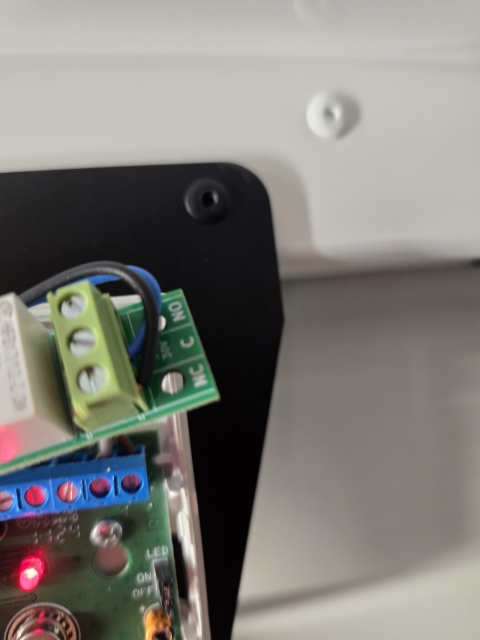

Extend the lines to reach the relay inside the PIR Sensor, first wire will be connected on C (Common Terminal) and the other into NC (Normally Closed Terminal).

Note: Interchangeable
