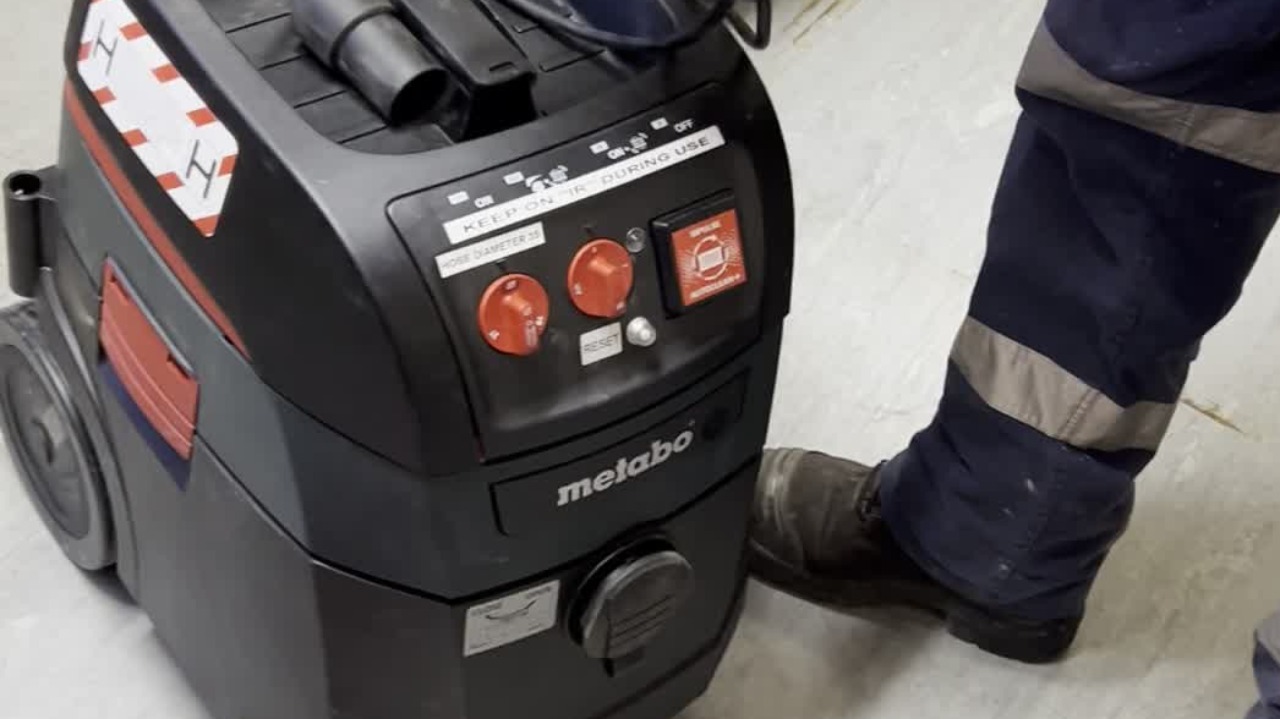

Using the H class wet and dry vacuum
Set up and post use guide for H class wet and dry vac
Set up and post use guide for H class wet and dry vac
1
Step 1 of 6

Before using the machine, you must check that there are no faults in the cord, it has an in date, current, testing tag and no visible defects on the machine itself

2
Step 2 of 6

Plug the machine in, get your hose and twist in to make sure it's locked. Select your diameter (The vacuum hose diameter is 35mm).

Then you select your operating mode. Zero is off, I is on.

3
Step 3 of 6

You'll notice we have a couple of vibrating functions in addition to 0 and I. We will always operate in IR, that means that the filters inside will self clean as they vibrate, that is the noise it's making, vibration as it's still cleaning itself.

The AR is for when you're using this, plugging in a tool. This function will not be used very often.

4
Step 4 of 6

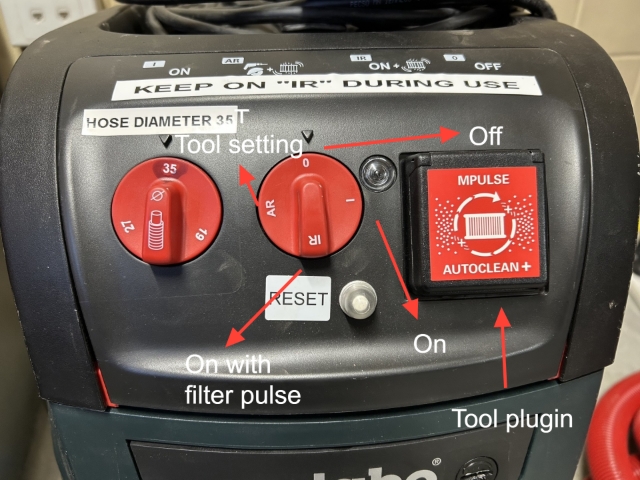

<p>Interface diagram</p>

Interface diagram

5
Step 5 of 6

Once you have finished using the unit, You must empty it.

To empty the unit, unclip the two red handles on either side of the machine. Lift the top of the unit off to expose the bin.

Empty the bottom unit into a designated area.

Replace the top of the unit and clip the two red handles into position.

6
Step 6 of 6

To pack it up, disconnect the hose. Plug the two ends together, so nothing can fall out of the hose. Switch the unit off at the power source.

Check it over for defects and then return it to its home
