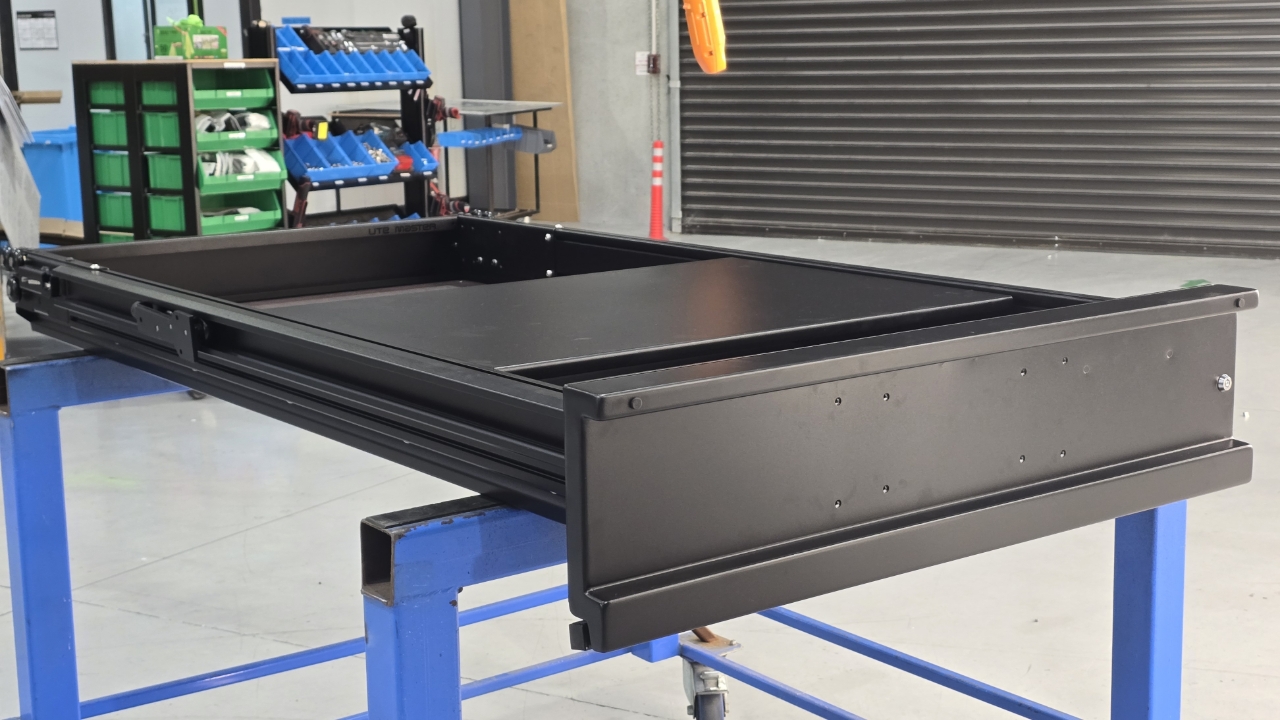

How to install or remove Trailcore Tray Underbody Drawer
TCT-UB-DRAWER
TCT-UB-DRAWER
1
Step 1 of 4

Slide drawer into tray

2
Step 2 of 4

Ensure the drawer catches at both the front and back, it should only disengage when the handle is pulled

3
Step 3 of 4

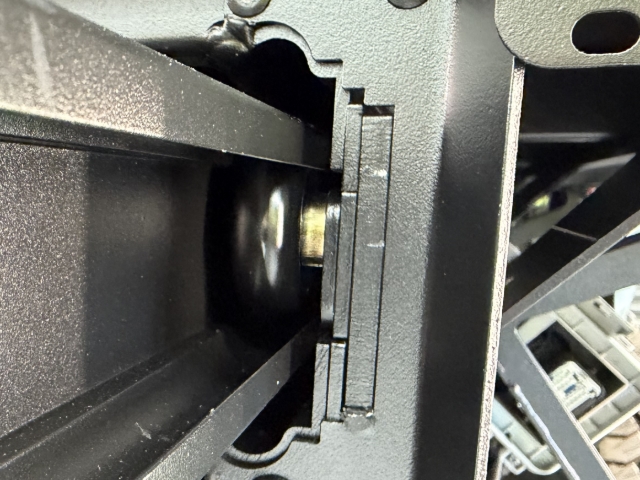

<p>Ensure the bearing plate assembly is flush with the tray.</p>

Ensure the bearing plate assembly is flush with the tray.

4
Step 4 of 4

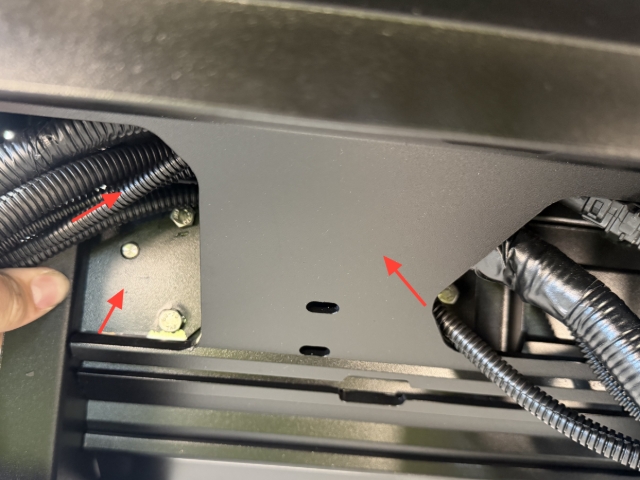

<p>Bolt bearing plate assembly to tray using M6x12 hex bolts with blue Loctite applied to the threads. </p>

Bolt bearing plate assembly to tray using M6x12 hex bolts with blue Loctite applied to the threads.
