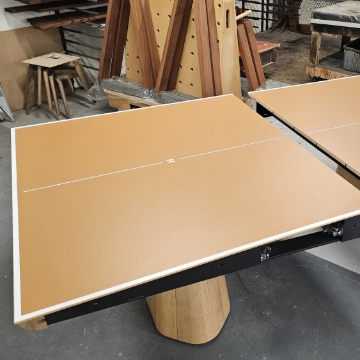

Keep Table in crate - seat top to base and

fix with wood screws from below

Remove crate screws and drop down, lift table over crate and place into position

Level base units with adjustable feet

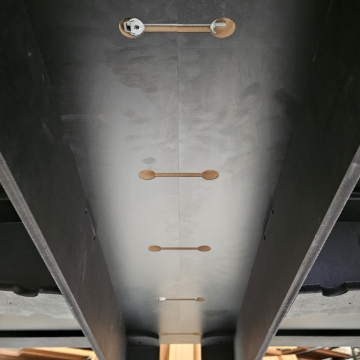

Once table is in position,

Pull both units together and tighten benchtop connectors

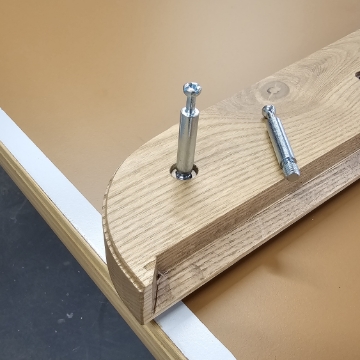

Insert cam bolts to either end of both side rails

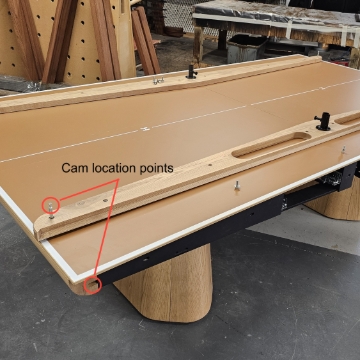

With cam bolts fitted, place Ash side rails onto table carcass

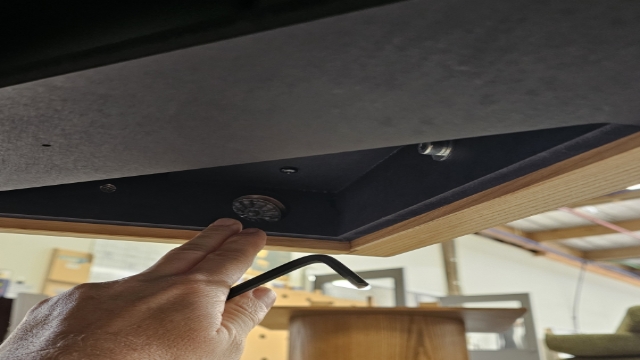

Flush the side rails with ends and tighten cams at either end

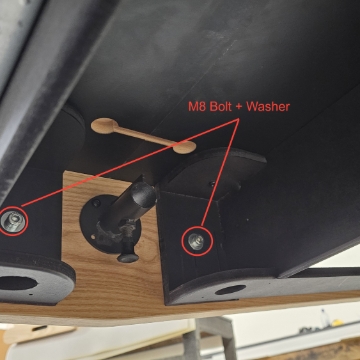

Once the side rails are fitted to the table insert M8 bolts and tighten into position

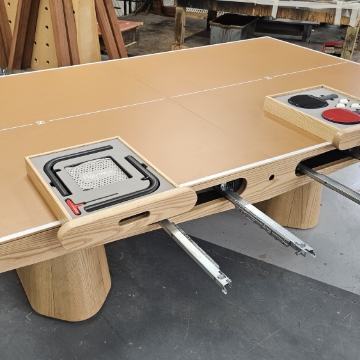

Note Drawer Fronts are grain matched

Install drawers,

• extend the runners

• sit drawer over runner

• holes on rear of runner will slide into drawer back

• push drawer in - this should engage the front clips that lock the drawer into place.

For any adjustment there is the Std Blum micro adjustments within the runners - Plus behind the drawer front are two machine screws to allow the front movement if needed

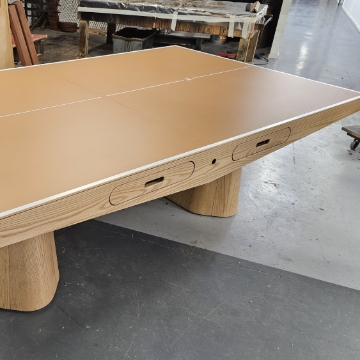

Check alignment of all components,

• Play surface level

• Side rails flush

• Drawer fronts have even tolerance all around

• Drawers operate without friction

Once all adjustments have been made to the above list.

• Fit panels to under side of table
