GF - Windlace Front Seal
How to apply the windlace to the front of the Gearforce Lid
How to apply the windlace to the front of the Gearforce Lid
1
Step 1 of 10

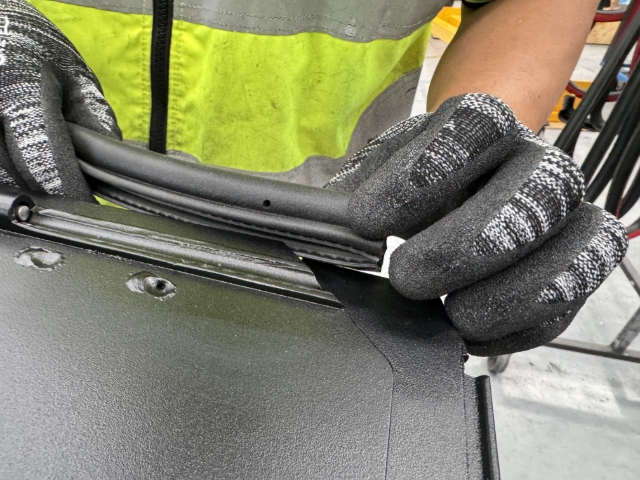

<p>Take windlace from box and measure out 3 mms of excess windlace as shown in video.</p>

Take windlace from box and measure out 3 mms of excess windlace as shown in video.

2
Step 2 of 10

Be sure to remember how much length was measured as this is the amount you will chop off using pliers. Make a cut as shown in video.

3
Step 3 of 10

Slice away bulbseal.

CQC: Ensure thick globes are used when cutting with craft knife.

4
Step 4 of 10

With correct amount cut off, press windlace onto rear of lid firmly, following the length of the lid.

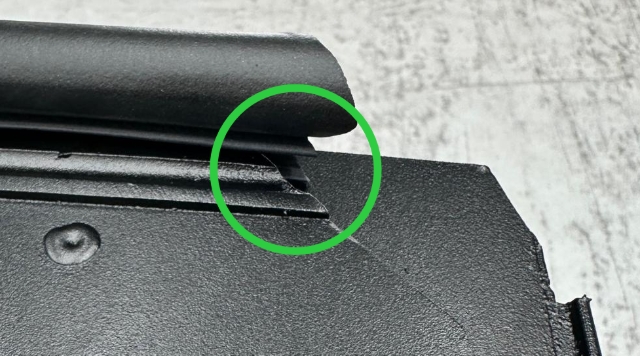

CQC: Ensure to over hang the windlace by 2mm. This will allow the bulb seal and windlace to join.

5
Step 5 of 10

Press the windlace into the grove the whole way along the front edge.

6
Step 6 of 10

Trim windlace leaving 3cms of bulbseal to be hidden when vulcanised bulbseal is applied.

CQC: Ensure to leave the extra 2mm to ensure it seals against the bulb seal.

7
Step 7 of 10

With firmer windlace, the hammer is used to keep nice straight windlace along lid.

8
Step 8 of 10

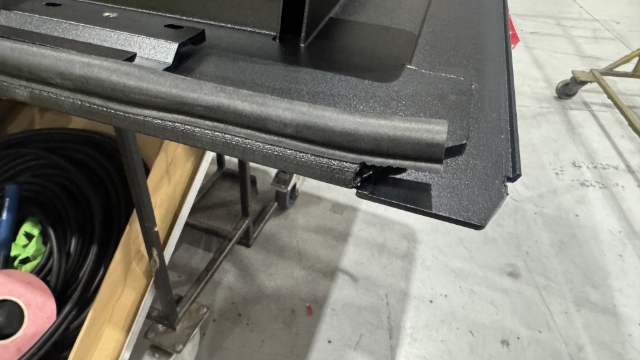

<p>Check windlace for defects and position, to ensure bulbseal will fit correctly when applied.</p>

Check windlace for defects and position, to ensure bulbseal will fit correctly when applied.

9
Step 9 of 10

Roll the windlace to remove any bumps.

10
Step 10 of 10

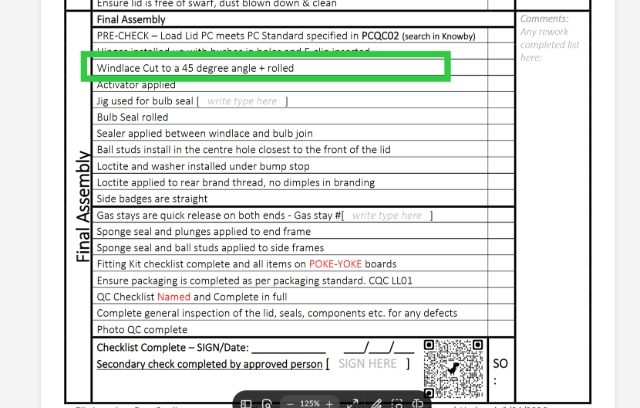

<p>Complete the quality checks</p>

Complete the quality checks
