Identify legs required using the room-by-room (including quantities and dimensions).

Refer to the label on the leg.

Check the architects C-sheet (and Hygenius room layout if provided) to ensure it matches the quantity and leg positions.

Important points to note:

• Ensure the drawing is the latest approved revision.

• Scaling of drawing may be required.
• You may have to adjust the leg positions to ensure the joints are supported

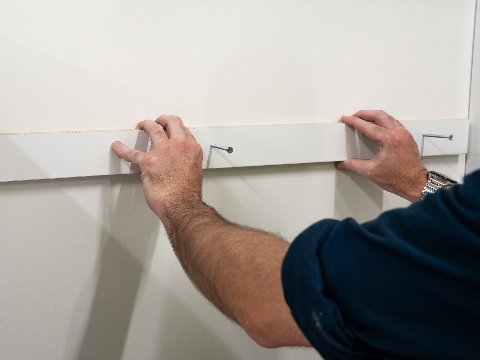

Identify wall construction (I.e. brick, ply-lined, timber stud, metal stud) and select the correct fixings.

Typically, 5 x 70mm screws can be used.

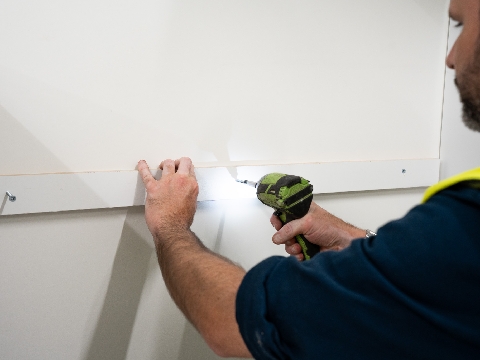

Install the wall batten at correct heights as per C-sheet.

Ensure it is level by using a Spirit or Laser level.

Now work out the cantilever positions as per the room by room stated quantities to a maximum of 1000mm centres.

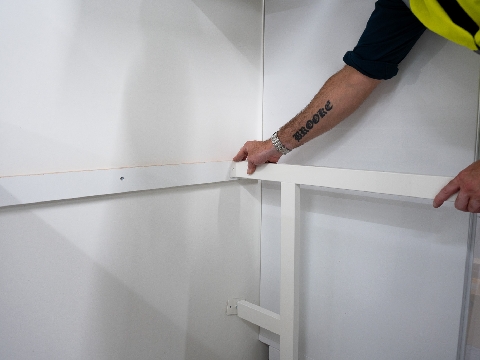

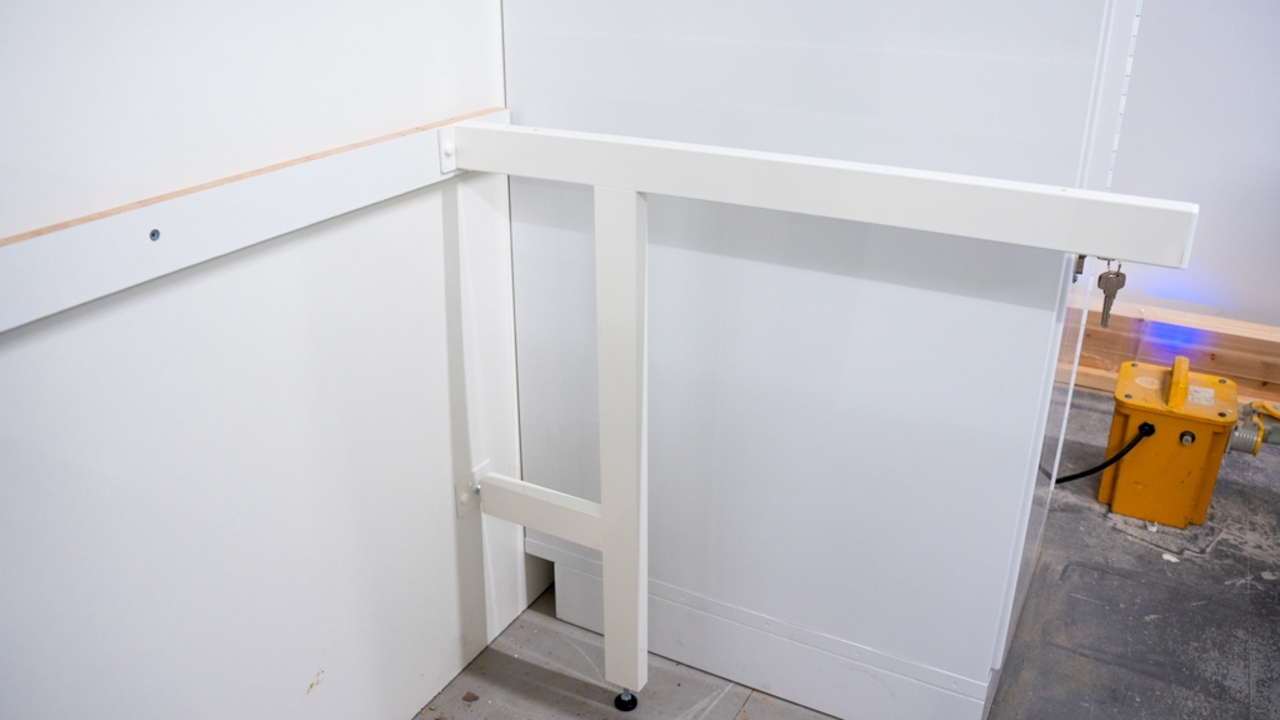

Adjust the leg to bring it level with the top of the batten.

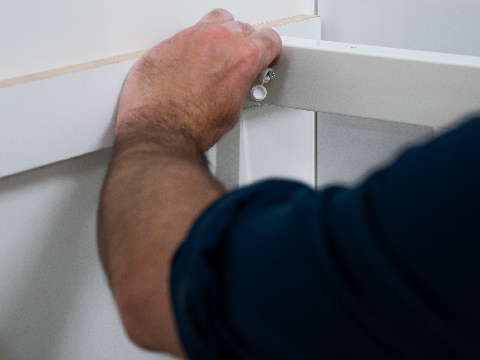

Mark cantilever holes on the top plate onto batten using a pencil.

Then, remove batten and pre-drill the marked holes.

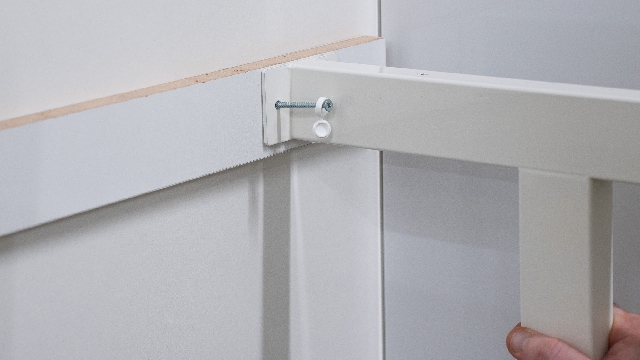

Place the cap on the screw then fix the batten into the pre-drilled hole.

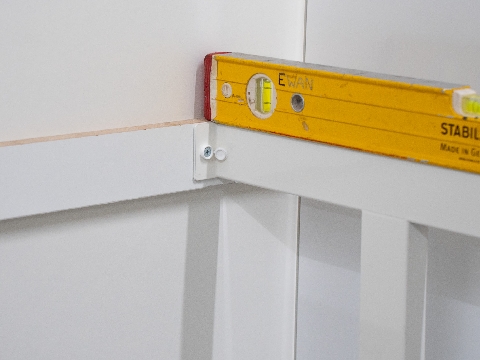

Level the leg horizontally and vertically using a Spirit level.

Adjust the bottom plate to wall.

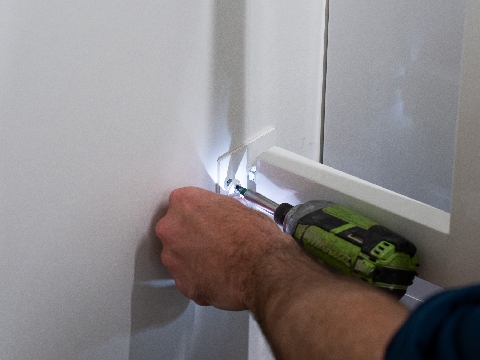

Place the cap on the screw then fix to the wall.

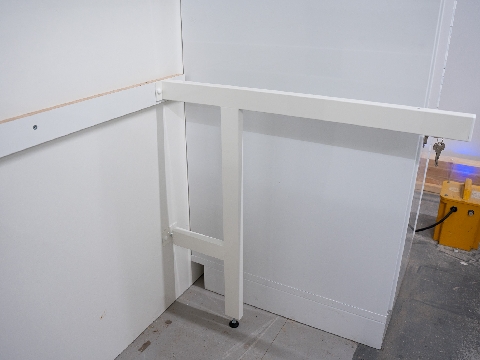

The installation is now complete!
