Revel - Net Bracket Assembly
1
Step 1 of 3

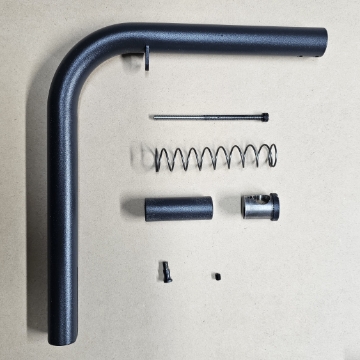

<p>Parts list includes:</p><p></p><ul><li><p>Main Arm Bracket</p></li><li><p>Threaded cap screw</p></li><li><p>Spring</p></li><li><p>Steel Plunger</p></li><li><p>Tube Top Cap</p></li><li><p>Turned net pin</p></li><li><p>Grub screw</p></li></ul><p></p>

Parts list includes:

  • Main Arm Bracket

  • Threaded cap screw

  • Spring

  • Steel Plunger

  • Tube Top Cap

  • Turned net pin

  • Grub screw

2
Step 2 of 3

Insert spring then steel plunger into main tube - Ensure plunger has threaded hole to outer face, thread cap screw into plunger.

Depress plunger into tube, Insert turned net pin into plunger thread.

Match top cap to main tube with machined hole sliding over cap screw

Fit grub screw through main bracket into top cap.

3
Step 3 of 3

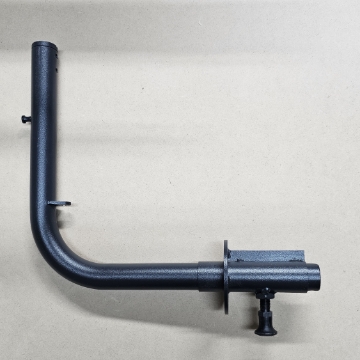

<p>Finished bracket shown with bottom socket fitted.</p>

Finished bracket shown with bottom socket fitted.
