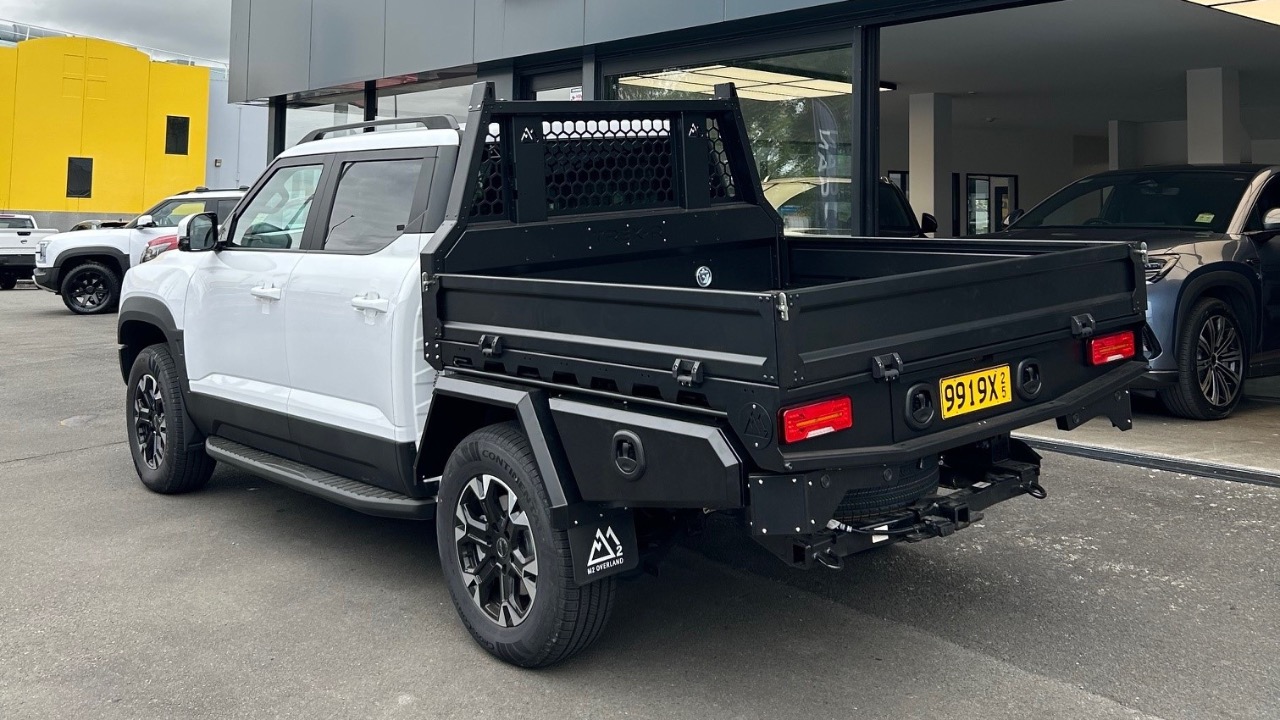

BYD TREK-R Tray Installation
1
Step 1 of 15

After vehicle has been fully powered down

Cut rear tail light wiring at required location

Passenger side vehicle loom needs all cable ties removed allowing it to be lengthened.

2
Step 2 of 15

Remove all cable ties from vehicle loom

Remove power box from BYD bracket

3
Step 3 of 15

Remove BYD charge ports from front drivers side bracket

4
Step 4 of 15

Disconnect fuel breather

Disconnect fuel filler

Remove all BYD mounts from chassis mounting points

5
Step 5 of 15

Secure power plus to bracket provided

6
Step 6 of 15

Remove breather plug from fuel filler assembly Disconnecting both ends

Remove plus from BYD hose

Connect plus to new hose provided

Reconnect plugs to breather assembly

7
Step 7 of 15

Secure breather hose to the fuel breather valve and secure in the housing provided

At this stage secure new mounts and tray

System.

8
Step 8 of 15

Connect rear tail lights and reverse camera in connections shown

9
Step 9 of 15

Secure BYD charging connections using mount provided.

10
Step 10 of 15

Secure BYD electrical components to chassis

11
Step 11 of 15

Connect earth cable to BYD earth connection and secure to chassis

12
Step 12 of 15

Drill two holes in drivers side chassis and cable tie electrical cabling.

13
Step 13 of 15

Cable tie breather hoses

Securing breather assemble to chassis

14
Step 14 of 15

Secure fuel filler assembly to chassis

Connect remaining fuel filler and breather components to chassis

15
Step 15 of 15

Install guards and tool boxes
