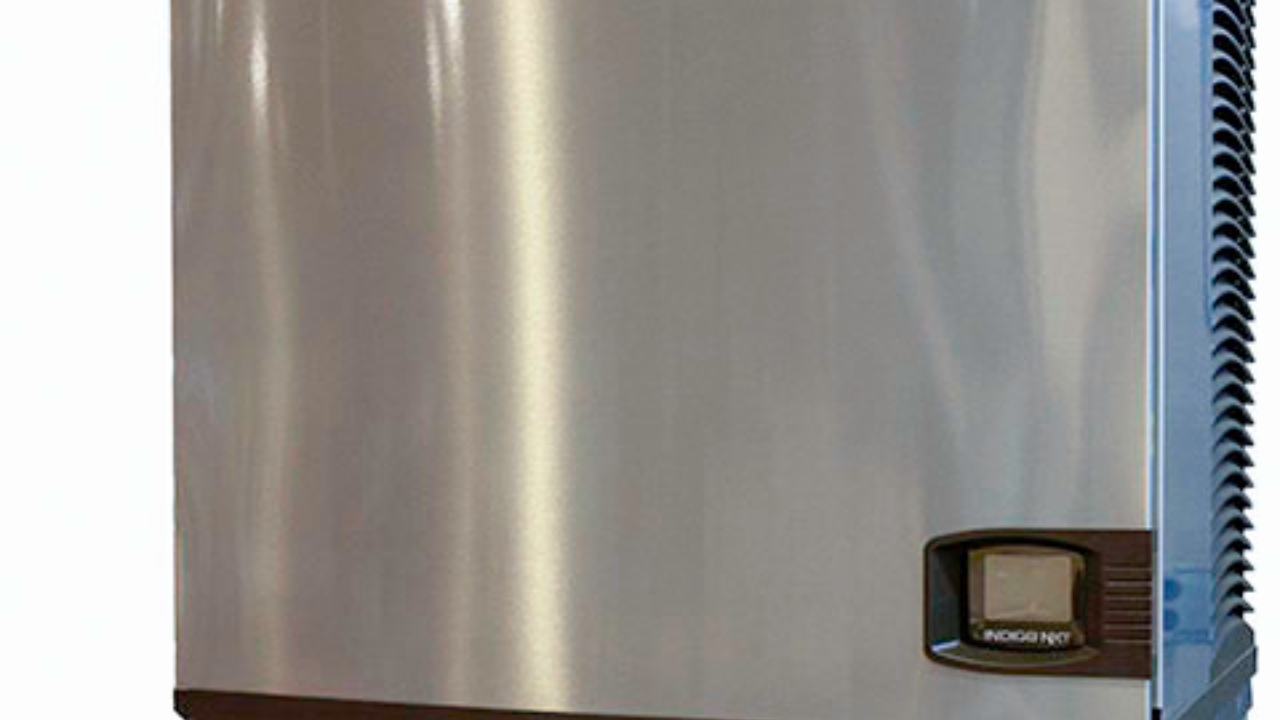

How to descale and sanitize a Manitowoc Indigo NXT ice machine

The full detailed de-scaling and sanitizing procedure for Manitowoc Indigo NXT ice machines: shutdown and teardown, soaking and wiping down with Manitowoc cleaner/descaler (9405463) and sanitizer (9405653), running the automatic clean and sanitize cycles, and reassembly. Descale at least every six months (more often in hard water); sanitize at least every six months. Based on Manitowoc service bulletin MII_SB_0032 (4/20).

Step 1 of 27

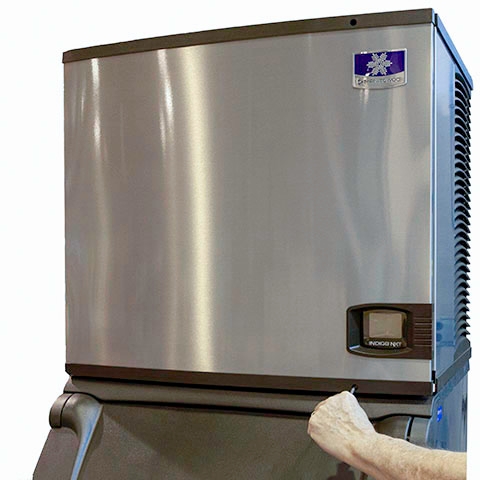

<p>Remove the front panel. Use a Phillips screwdriver to loosen the screw(s) securing the door. Do not remove the screws completely — they are retained to prevent loss.</p>

Remove the front panel. Use a Phillips screwdriver to loosen the screw(s) securing the door. Do not remove the screws completely — they are retained to prevent loss.

Step 2 of 27

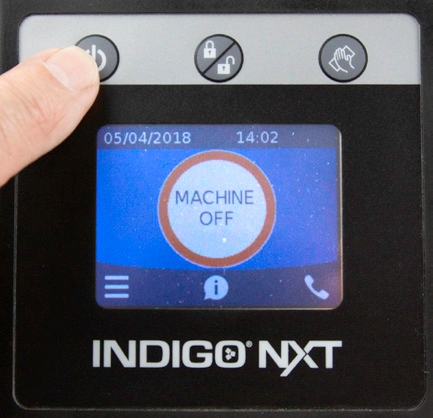

Turn the ice machine off. After ice has fallen from the evaporator, press the power button to turn the ice machine OFF.

Step 3 of 27

<p>Disconnect main power at the service disconnect or breaker.

WARNING: Do not begin cleaning any other part of the ice machine until line voltage is disconnected from the ice machine and, if applicable, the dispenser.</p>

Disconnect main power at the service disconnect or breaker. WARNING: Do not begin cleaning any other part of the ice machine until line voltage is disconnected from the ice machine and, if applicable, the dispenser.

Step 4 of 27

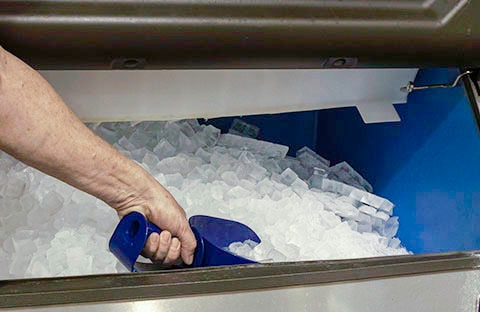

Empty the ice bin. Use an ice scoop to remove all ice from the storage bin.

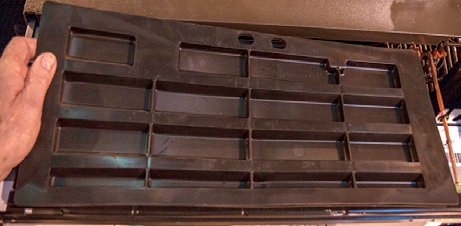

Step 5 of 27

Remove the top cover and evaporator dust cover. Lift the top cover to remove it, then lift and remove the evaporator dust cover.

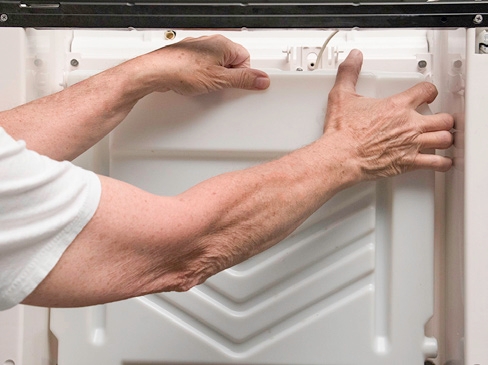

Step 6 of 27

<p>Remove the water curtain or splash shield.

Water curtain: gently flex the curtain in the center, remove it from the right side, then slide the left pin out.

Splash shield (48" models): lift the splash shield up and forward to remove it.</p>

Remove the water curtain or splash shield. Water curtain: gently flex the curtain in the center, remove it from the right side, then slide the left pin out. Splash shield (48" models): lift the splash shield up and forward to remove it.

Step 7 of 27

<p>Remove the water trough. Depress the tabs on the right and left sides of the trough. Allow the front of the trough to drop as you pull forward to disengage the rear pins.

Ice damper (where fitted): press the damper to the left and flex the middle. Pull forward on the right side until the right damper pin is free, then slide the left pin out.</p>

Remove the water trough. Depress the tabs on the right and left sides of the trough. Allow the front of the trough to drop as you pull forward to disengage the rear pins. Ice damper (where fitted): press the damper to the left and flex the middle. Pull forward on the right side until the right damper pin is free, then slide the left pin out.

Step 8 of 27

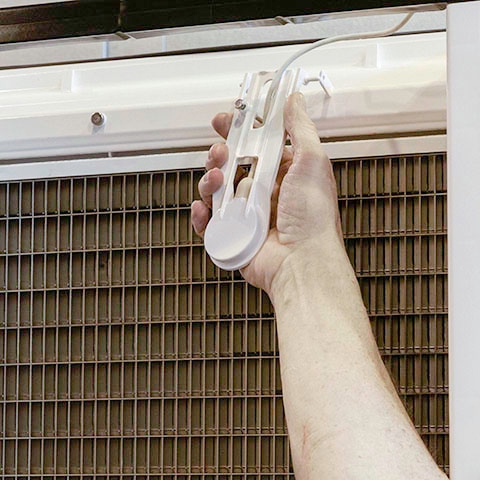

Remove the ice thickness probe. Compress the hinge pin on top of the probe, then pivot the probe to disengage one pin and then the other.

Step 9 of 27

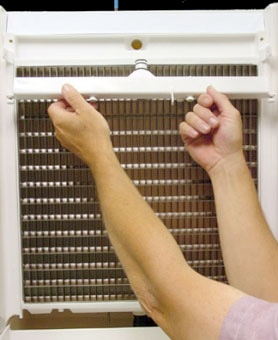

<p>Remove the water distribution tube. Loosen the two outer screws (do not remove them completely — they are retained to prevent loss). Pull forward on the distribution tube to release it from the slip joint and remove it. Disassemble the tube by loosening the two middle thumbscrews and dividing it into two pieces.

48" models have two water distribution tubes — remove both.</p>

Remove the water distribution tube. Loosen the two outer screws (do not remove them completely — they are retained to prevent loss). Pull forward on the distribution tube to release it from the slip joint and remove it. Disassemble the tube by loosening the two middle thumbscrews and dividing it into two pieces. 48" models have two water distribution tubes — remove both.

Step 10 of 27

<p>Remove the water level probe. Pull the probe straight down to disengage it, then lower it to gain access. It can be descaled and sanitized at this point without complete removal.

If you want to remove it completely, disconnect the ice thickness control wire from the control board.

NOTE: Some models allow the wire lead to be disconnected at the probe. Lower the probe until the wiring connector is visible, disconnect the wire lead connector, then remove the probe from the ice machine.</p>

Remove the water level probe. Pull the probe straight down to disengage it, then lower it to gain access. It can be descaled and sanitized at this point without complete removal. If you want to remove it completely, disconnect the ice thickness control wire from the control board. NOTE: Some models allow the wire lead to be disconnected at the probe. Lower the probe until the wiring connector is visible, disconnect the wire lead connector, then remove the probe from the ice machine.

Step 11 of 27

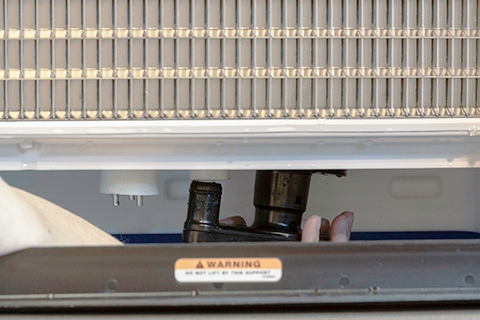

<p>Remove the water pump. Grasp the pump and pull straight down on the pump assembly until it disengages and the electrical connector is visible. Disconnect the electrical connector, then remove the water pump assembly from the ice machine.</p>

Remove the water pump. Grasp the pump and pull straight down on the pump assembly until it disengages and the electrical connector is visible. Disconnect the electrical connector, then remove the water pump assembly from the ice machine.

Step 12 of 27

<p>Remove scale deposits from the removed parts.

WARNING: Wear rubber gloves and safety goggles (and/or a face shield) when handling ice machine cleaner/descaler or sanitizer.

Mix 16 oz of Manitowoc ice machine cleaner/descaler (9405463) with one gallon of potable water in a three-compartment sink. Place the plastic parts in the solution and soak for 10–15 minutes. Use a soft bristle brush on heavy scale or mineral buildup as required.

CAUTION: Do not immerse the water pump motor or electrical connector in liquid. Soak only the pump impeller and impeller housing, never above the red line marked on the pump. Electrical connectors must never be exposed to any liquid.</p>

Remove scale deposits from the removed parts. WARNING: Wear rubber gloves and safety goggles (and/or a face shield) when handling ice machine cleaner/descaler or sanitizer. Mix 16 oz of Manitowoc ice machine cleaner/descaler (9405463) with one gallon of potable water in a three-compartment sink. Place the plastic parts in the solution and soak for 10–15 minutes. Use a soft bristle brush on heavy scale or mineral buildup as required. CAUTION: Do not immerse the water pump motor or electrical connector in liquid. Soak only the pump impeller and impeller housing, never above the red line marked on the pump. Electrical connectors must never be exposed to any liquid.

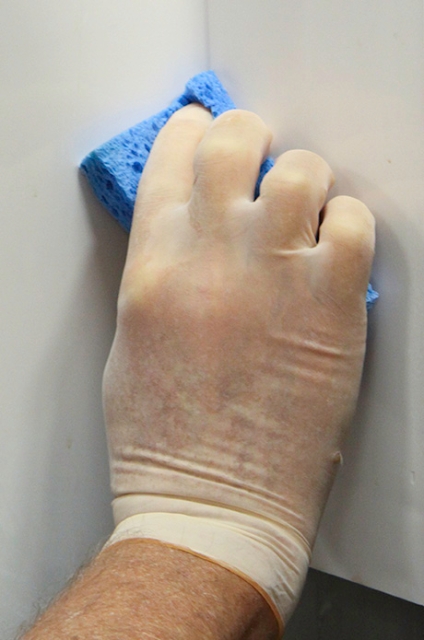

Step 13 of 27

<p>Clean scale deposits from the surface areas of the ice machine. Use a clean towel or sponge soaked in cleaner/descaler solution to wipe the ice machine surfaces, including the side walls, the base (area above the water trough), and the bin or dispenser.</p>

Clean scale deposits from the surface areas of the ice machine. Use a clean towel or sponge soaked in cleaner/descaler solution to wipe the ice machine surfaces, including the side walls, the base (area above the water trough), and the bin or dispenser.

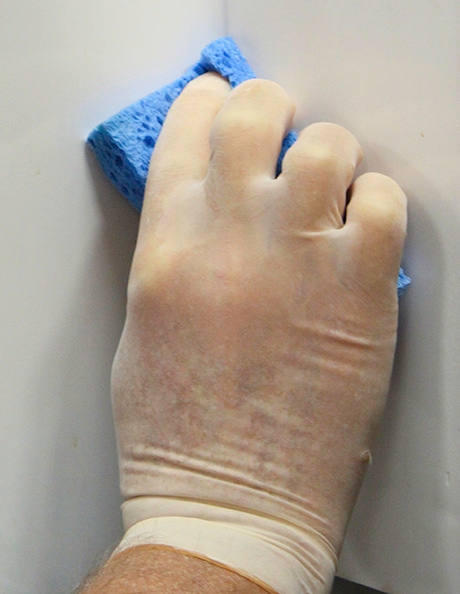

Step 14 of 27

<p>Rinse the surface areas of the ice machine. Use a clean towel or sponge soaked in potable water to wipe the same surfaces: side walls, base (area above the water trough), and the bin or dispenser.</p>

Rinse the surface areas of the ice machine. Use a clean towel or sponge soaked in potable water to wipe the same surfaces: side walls, base (area above the water trough), and the bin or dispenser.

Step 15 of 27

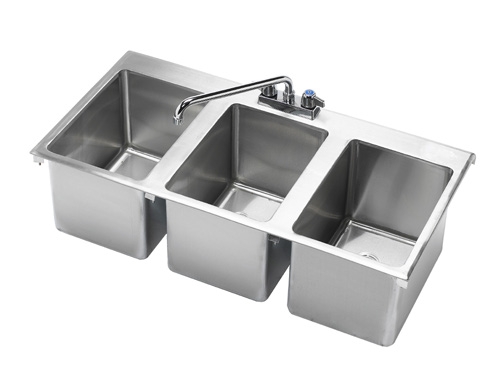

<p>Rinse and sanitize the plastic parts. Mix two ounces of ice machine sanitizer (9405653) with three gallons of potable water in a three-compartment sink. Add five gallons of clear potable water to the third compartment.

Remove the plastic parts from the cleaner/descaler solution and rinse them in the clear potable water, then place them in the sanitizer solution and soak for at least one minute.

CAUTION: Do not soak the water pump motor in rinse water or sanitizer solution. Rinse and soak only the impeller and impeller housing, never above the red line marked on the pump.</p>

Rinse and sanitize the plastic parts. Mix two ounces of ice machine sanitizer (9405653) with three gallons of potable water in a three-compartment sink. Add five gallons of clear potable water to the third compartment. Remove the plastic parts from the cleaner/descaler solution and rinse them in the clear potable water, then place them in the sanitizer solution and soak for at least one minute. CAUTION: Do not soak the water pump motor in rinse water or sanitizer solution. Rinse and soak only the impeller and impeller housing, never above the red line marked on the pump.

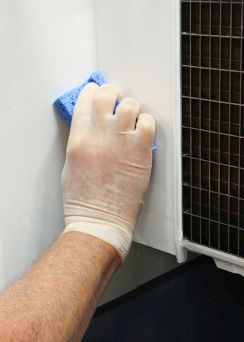

Step 16 of 27

<p>Sanitize the surface areas of the ice machine. Use a clean sanitizer-soaked towel on the ice machine surfaces, including the side walls, the base (area above the water trough), and the bin or dispenser. Spray the surfaces with sanitizer solution and wipe down.

Manitowoc sanitizer is classified as a no-rinse sanitizer — do not rinse sanitized surfaces.</p>

Sanitize the surface areas of the ice machine. Use a clean sanitizer-soaked towel on the ice machine surfaces, including the side walls, the base (area above the water trough), and the bin or dispenser. Spray the surfaces with sanitizer solution and wipe down. Manitowoc sanitizer is classified as a no-rinse sanitizer — do not rinse sanitized surfaces.

Step 17 of 27

<p>Reinstall the plastic evaporator parts. Return the parts to the ice machine and reassemble by performing steps 5 to 11 in reverse order.

NOTICE: When reinstalling the water level probe, make sure the rubber gasket is sealed against the base of the ice machine and that all electrical connectors and wires stay free of moisture.</p>

Reinstall the plastic evaporator parts. Return the parts to the ice machine and reassemble by performing steps 5 to 11 in reverse order. NOTICE: When reinstalling the water level probe, make sure the rubber gasket is sealed against the base of the ice machine and that all electrical connectors and wires stay free of moisture.

Step 18 of 27

Restore power to the ice machine at the circuit breaker (and to the dispenser, if applicable).

Step 19 of 27

<p>Press the CLEAN button. Follow the screen prompts to start the clean cycle. Wait until the prompt to add cleaner is displayed (approximately 2 minutes), then continue with the next step.</p>

Press the CLEAN button. Follow the screen prompts to start the clean cycle. Wait until the prompt to add cleaner is displayed (approximately 2 minutes), then continue with the next step.

Step 20 of 27

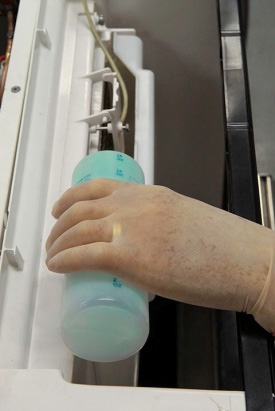

<p>Add Manitowoc cleaner/descaler (9405463) to the water trough. Pour the correct amount for your model between the evaporator and the water curtain. The bottle is marked with 2 oz (60 ml) graduations.

3 ounces — IF0300 / IT0420 / IT0520 / IT0620

5 ounces — IT0450 / IT0500 / IP0500 / IF0600 / IBF0620C / IT0750 / IBF0820C / IF0900 / IT0900 / IBT1020C / IT1200

9 ounces — IF1400C / IT1500 / IF1800C / IT1900 / IF2100C</p>

Add Manitowoc cleaner/descaler (9405463) to the water trough. Pour the correct amount for your model between the evaporator and the water curtain. The bottle is marked with 2 oz (60 ml) graduations. 3 ounces — IF0300 / IT0420 / IT0520 / IT0620 5 ounces — IT0450 / IT0500 / IP0500 / IF0600 / IBF0620C / IT0750 / IBF0820C / IF0900 / IT0900 / IBT1020C / IT1200 9 ounces — IF1400C / IT1500 / IF1800C / IT1900 / IF2100C

Step 21 of 27

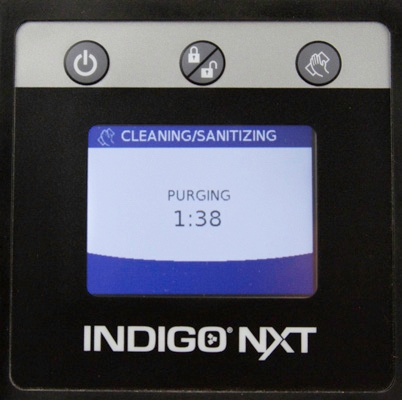

<p>Allow the clean cycle to run. The ice machine automatically runs a wash cycle and several rinse cycles. The entire cycle takes approximately 30 minutes on 30" wide models and 40 minutes on 48" wide models. The countdown clock shows the duration and time remaining.</p>

Allow the clean cycle to run. The ice machine automatically runs a wash cycle and several rinse cycles. The entire cycle takes approximately 30 minutes on 30" wide models and 40 minutes on 48" wide models. The countdown clock shows the duration and time remaining.

Step 22 of 27

<p>Clean the condenser air filter (self-contained air-cooled models only). While the clean cycle is running, lift out the condenser filter at the rear of the machine, flush it with water to clean it, then reinstall it.</p>

Clean the condenser air filter (self-contained air-cooled models only). While the clean cycle is running, lift out the condenser filter at the rear of the machine, flush it with water to clean it, then reinstall it.

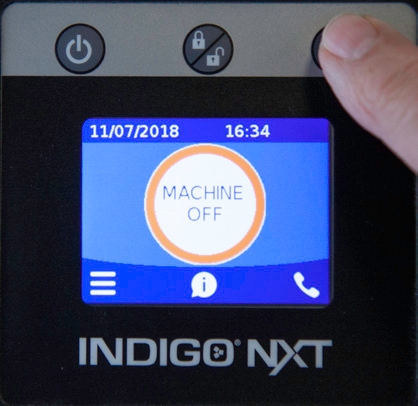

Step 23 of 27

<p>Press the CLEAN button again to start the sanitize cycle. Follow the screen prompts. Wait until the prompt to add sanitizer is displayed (approximately 2 minutes), then continue with the next step.</p>

Press the CLEAN button again to start the sanitize cycle. Follow the screen prompts. Wait until the prompt to add sanitizer is displayed (approximately 2 minutes), then continue with the next step.

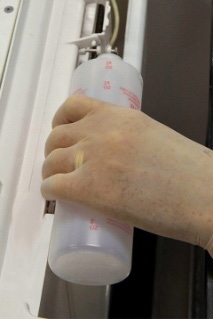

Step 24 of 27

<p>Add Manitowoc sanitizer (9405653) to the water trough. Pour the correct amount for your model between the evaporator and the water curtain. The bottle is marked with 2 oz (60 ml) graduations.

3 ounces (90 ml) — IF0300 / IT0420 / IT0450 / IT0500 / IP0500 / IT0520 / IF0600 / IT0620 / IBF0620C / IT0750 / IBF0820C / IF0900 / IT0900 / IT1200

3.5 ounces (104 ml) — IBT1020C

6 ounces (180 ml) — IT1500 / IT1900

12 ounces (355 ml) — IF1400C / IF1800C / IF2100C</p>

Add Manitowoc sanitizer (9405653) to the water trough. Pour the correct amount for your model between the evaporator and the water curtain. The bottle is marked with 2 oz (60 ml) graduations. 3 ounces (90 ml) — IF0300 / IT0420 / IT0450 / IT0500 / IP0500 / IT0520 / IF0600 / IT0620 / IBF0620C / IT0750 / IBF0820C / IF0900 / IT0900 / IT1200 3.5 ounces (104 ml) — IBT1020C 6 ounces (180 ml) — IT1500 / IT1900 12 ounces (355 ml) — IF1400C / IF1800C / IF2100C

Step 25 of 27

Reinstall the evaporator dust cover, then reinstall the top cover.

Step 26 of 27

Press the POWER button. After the sanitizing cycle is complete, press the power button to return the machine to making ice.

Step 27 of 27

Reinstall the front panel and tighten the screws.
