C- Sliding Doors
How to slide doors to a canopy
How to slide doors to a canopy
1
Step 1 of 6

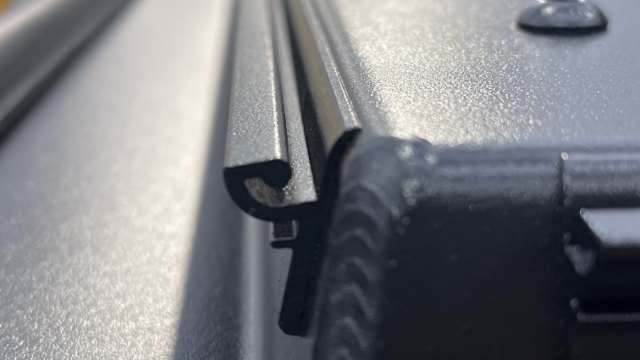

<p>Make sure that the hinge entrance free from cutting residue.</p>

Make sure that the hinge entrance free from cutting residue.

2
Step 2 of 6

To make sure open the hinge by poking with a small tool provided.

3
Step 3 of 6

Critical Quality Step: Add lubricant to the hinges.

4
Step 4 of 6

Slide the side door first LH or RH.

5
Step 5 of 6

Followed by the rear door.

6
Step 6 of 6

Then another side door. *You cannot put the rear door if you do the two side door first.

Door sliding Pattern:

LH, RR, RH

RH, RR, LH

RR, LH, RH

RR, RH, LH
